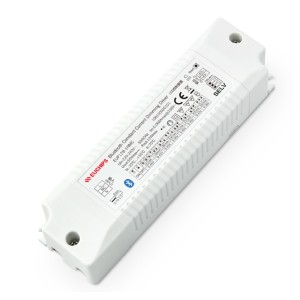

  • 12W 120~350mA*1ch Bluetooth CC Driver EUP12B-1HMC

    12W 120~350mA*1ch Bluetooth CC Driver EUP12B-1HMC

    12W 120~350mA*1ch Bluetooth CC Driver EUP12B-1HMC EUP12B-1HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Bluetooth to achieve wireless dimming effect. Features · output current level selectable by DIP S.W. · Wide input voltage of 220VAC ~ 240VAC · High efficiency up to 83% · Built-in active PFC function · Protections: over load, short circuit · Suitable for indoor LED lighting application, such as down light, panel li...

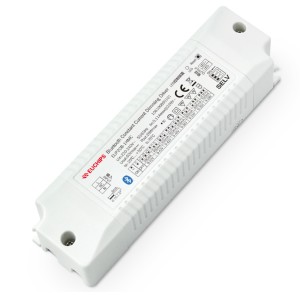

  • 20W 350~700mA*1ch Bluetooth CC Driver EUP20B-1HMC

    20W 350~700mA*1ch Bluetooth CC Driver EUP20B-1HMC

    20W 350~700mA*1ch Bluetooth CC Driver EUP20B-1HMC EUP20B-1HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Bluetooth to achieve wireless dimming effect. Features · output current level selectable by DIP S.W. · Wide input voltage of 220VAC ~ 240VAC · High efficiency up to 85% · Built-in active PFC function · Protections: over load, short circuit · Suitable for indoor LED lighting application, such as down light, panel li...

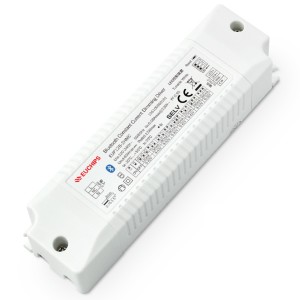

  • 12W 120~350mA*2ch Bluetooth CC Driver EUP12B-2HMC

    12W 120~350mA*2ch Bluetooth CC Driver EUP12B-2HMC

    12W 120~350mA*2ch Bluetooth CC Driver EUP12B-2HMC EUP12B-2HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Bluetooth to achieve wireless dimming effect. Features · output current level selectable by DIP S.W. · Wide input voltage of 220VAC ~ 240VAC · High efficiency up to 83% · Built-in active PFC function · Protections: over load, Over voltage, short circuit · Suitable for indoor LED lighting application, such as down l...

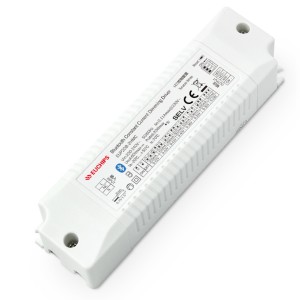

  • 20W 350~700mA*2ch Bluetooth CC Driver EUP20B-2HMC

    20W 350~700mA*2ch Bluetooth CC Driver EUP20B-2HMC

    20W 350~700mA*2ch Bluetooth CC Driver EUP20B-2HMC EUP20B-2HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Bluetooth to achieve wireless dimming effect. Features · output current level selectable by DIP S.W. · Wide input voltage of 220VAC ~ 240VAC · High efficiency up to 84% · Built-in active PFC function · Protections: over load, short circuit · Suitable for indoor LED lighting application, such as down light, panel li...

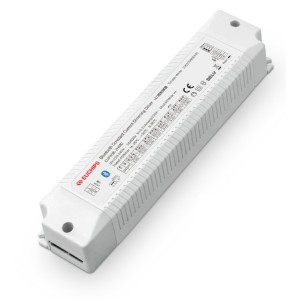

  • 40W 750~1100mA*2ch Bluetooth CC Driver EUP40B-2HMC

    40W 750~1100mA*2ch Bluetooth CC Driver EUP40B-2HMC

    40W 750~1100mA*2ch Bluetooth CC Driver EUP40B-2HMC EUP40B-2HMC is a product that can provide 750/800/850/900/950/1000/1050/1100ma The output current of LED Driver with 8-level current can be easily set through dip dial switch Realize wireless dimming and color matching effect through Bluetooth. Features · output current level selectable by DIP S.W. · Wide input voltage of 220VAC ~ 240VAC · High efficiency up to 87% · Built-in active PFC function · Protections: Over voltage, over load, short c...

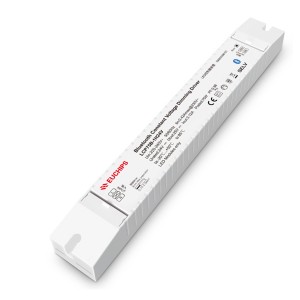

  • 75W 24VDC Bluetooth CV Driver LCP75B-1H24V

    75W 24VDC Bluetooth CV Driver LCP75B-1H24V

    75W 24VDC Bluetooth CV Driver LCP75B-1H24V LCP75B-1H24V is a constant voltage mode output LED driver. This driver can be controlled by Bluetooth to achieve a smooth dimming effect. Features · Single channel constant voltage output 3.12A Max · High input voltage of 220VAC ~ 240VAC · Dimming effect smooth, flicker free · Over load protection; over voltage protection; short circuit protection · IP20, suitable for indoor LED lighting application Technical Paramaters  Model LCP75B-1H24V  ...

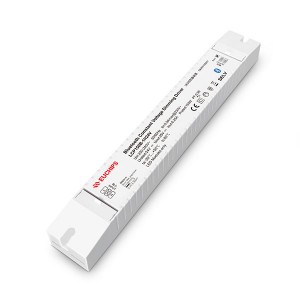

  • 150W 24VDC Bluetooth Driver LCP150B-1H24V

    150W 24VDC Bluetooth Driver LCP150B-1H24V

    150W 24VDC Bluetooth Driver LCP150B-1H24V LCP150B-1H24V is a constant voltage mode output LED driver.This driver can be controlled by Bluetooth to achieve a smooth dimming effect. Features · Single channel constant voltage output,6.25A Max · High input voltage of 220VAC ~ 240VAC · Dimming effect smooth, no flicker · Over load protection; over voltage protection; short circuit protection · IP20, suitable for indoor LED lighting application Technical Parameters Model LCP150B-1H24V Input ...

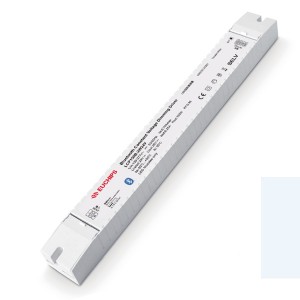

  • 150W 24VDC 2ch Bluetooth Driver LCP150B-2W24V

    150W 24VDC 2ch Bluetooth Driver LCP150B-2W24V

    150W 24VDC 2ch Bluetooth Driver LCP150B-2W24V LCP150B-2W24V is a constant voltage mode output LED driver, adjustment of brightness and colour temperature,Through Bluetooth to achieve wireless dimming effect. Features · Double channel constant voltage output,6.25A Max · High input voltage of 120VAC ~ 277VAC · Dimming effect smooth, flicker free · Short circuit protection · IP20, suitable for indoor LED lighting application Technical Paramaters Model LCP150B-2W24V       Input Efficienc...

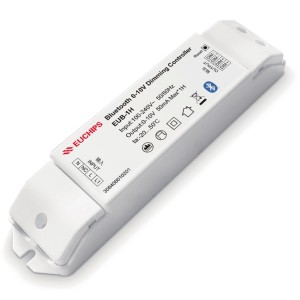

  • 100-240VAC 1ch Bluetooth dimming controller EUB-1H

    100-240VAC 1ch Bluetooth dimming controller EUB-1H

    100-240VAC 1ch Bluetooth dimming controller EUB-1H Features · Used for 0-10V drive power supply, dimming color · High quality amplification device, with relay, cut off the drive power, energy saving · APP remote control, at will · Access graffiti intelligent system Technical Parameters Model EUB-1H Input voltage 100-240V/AC Wireless connection Bluetooth Output Number of channels 1 signal 0-10V Electric current 50mA/CH Others Size 168*39.4*30 package - Operating temperature ...

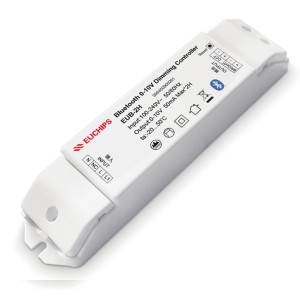

  • 100-240VAC 2ch Bluetooth Dimming controller EUB-2H

    100-240VAC 2ch Bluetooth Dimming controller EUB-2H

    100-240VAC 2ch Bluetooth Dimming controller EUB-2H Features · Used for 0-10V drive power supply,Tunable White · High quality amplification device, with relay, cut off the drive power, energy saving · APP remote control, color temperature and brightness, at will · Access tuya intelligent system Technical Parameters Model EUB-2H Input Voltage 100-240V/AC Wireless connection Bluetooth   Output Channel 2 signal 0-10V Current 50mA/CH   Others Dimension 168*39.4*30 Carton Size - ...

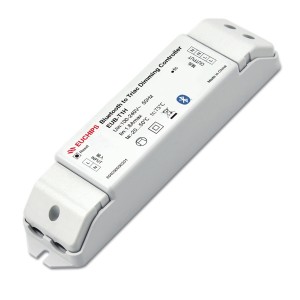

  • 100-240VAC Bluetooth to Triac Dimming Controller EUB-T1H

    100-240VAC Bluetooth to Triac Dimming Controller EUB-T1H

    100-240VAC Bluetooth to Triac Dimming Controller EUB-T1H Features · For thyristor drive power supply, dimming · High quality thyristor devices are used · APP remote control, brightness, as desired · Access graffiti intelligent system Technical Parameters Model EUB-T1H   Input Voltage 100-240V/AC 50Hz Wireless connection Bluetooth   Output Channel 1 signal AC 20-220V 50Hz Current 1.8maxA   Others Dimension 168*39.4*30 Carton Size - Lifetime -20-50℃
