Non-dimmable Drivers LED driver, Non-dimmable Drivers LED controller, Non-dimmable Drivers LED dimmer - Euchips

28W 48VDC 350~700mA DC-DC Driver BMP28-1SMC

28W 48VDC 350/500/550/700mA DC-DC Driver Features 1. Supporting Hot Plug-in of Front 48V Driver 2. Input Reverse Connection Protection 3. DIP Selection Current 4. Supporting short circuit and overload protection Technical Parameters Model BMP28-1SMC Input Efficiency 93%@48VDC, full load Voltage 48VDC Current 0.63Amax@48VDC, full load Output Current / Voltage / Power 350mA/9-40VDC/14W 500mA/9-40VDC/20W 550mA/9-40VDC/22W 700mA/9-40VDC/28W Ripple Current <3% Channel 1 Current...

detail
6W 300mA Non-dimmable CC Driver PWE6-1H300C-W

6W 300mA Non-dimmable CC Driver PWE6-1H300C-W PWE6-1H300C-W is a 6W AC/DC constant current LED driver, with Compact body design, Flicker free design to create a healthy light environment. Features · Isolated LED Driver for class I, Class II LED Luminaire · Fixed output independent LED driver · simple structure, cost effective · Flicker free LED driver · 5 years warranty · indoor office lighting, decorative lighting, commercial lighting, and residential lighting Technical Parameters Model P...

detail
8W 350mA Non-dimmable CC Driver PWE8-1H350C-W

8W 350mA Non-dimmable CC Driver PWE8-1H350C-W PWE8-1H350C-W is a 8W AC/DC constant current LED driver, with Compact body design, Flicker free design to create a healthy light environment. Features · Isolated LED Driver for class I, Class II LED Luminaire · Fixed output independent LED driver · simple structure, cost effective · Flicker free LED driver · 5 years warranty · indoor office lighting, decorative lighting, commercial lighting, and residential lighting Technical Parameters Model P...

detail

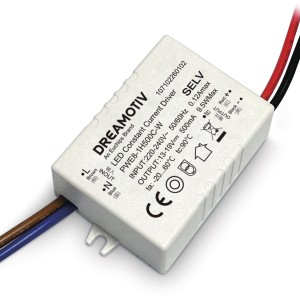

8W 500mA Non-dimmable CC Driver PWE8-1H500C-W

8W 500mA Non-dimmable CC Driver PWE8-1H500C-W PWE8-1H500C-W is a 8W AC/DC constant current LED driver, with Compact body design, Flicker free design to create a healthy light environment. Features · Isolated LED Driver for class I ，Class II LED Luminaire · Fixed output independent LED driver · simple structure, cost effective · Flicker free LED driver · 5 years warranty · indoor office lighting, decorative lighting, commercial lighting, and residential lighting Technical Parameters Model ...

detail
12W 700mA Non-dimmable CC Driver PWE12-1H700C-W

12W 700mA Non-dimmable CC Driver PWE12-1H700C-W PWE12-1H700C-W is a 12W AC/DC constant current LED driver, with Compact body design, Flicker free design to create a healthy light environment. Features · Isolated LED Driver for class I ，Class II LED Luminaire · Fixed output independent LED driver · simple structure, cost effective · Flicker free LED driver · 5 years warranty · indoor office lighting, decorative lighting, commercial lighting, and residential lighting Technical Parameters Mo...

detail
14W 200~350mA Non-dimmable CC Driver LTP14-1HMC-3X-B W G

14W 200~350mA Non-dimmable CC Driver LTP14-1HMC-3X-B W G Features · Constant Current Track Driver, High P, Flicker-free · High efficiency, full load efficiency ≧82% · Strong adaptation, can be adapted to domestic and foreign common guide rails · There are two series of fixed current and dip switch current, Output current range 500-800mA · Protection grade Class II, 5 years warranty Technical Parameters Model LTP14-1HMC-3X-W B G Input Efficiency ≥82%@230VAC, Full load Rated Input...

detail
19W 250~500mA Non-dimmable CC Driver LTP19-1HMC-4X-B W G

19W 250~500mA Non-dimmable CC Driver LTP19-1HMC-4X-B W G Features · Constant Current Track Driver, High Power factor, Flicker-free · High efficiency, full load efficiency ≧92% · Strong adaptation, can be adapted to common guide rails · Output current selectable: 250/350/400/500mA · Luminaires of protection class II · 5 years warranty Technical Parameters Model LTP19-1HMC-4X-B LTP19-1HMC-4X-W LTP19-1HMC-4X-G Input Efficiency ≥92%@220VAC, 36V Rated Input Voltage 220VAC-240...

detail
32W 500~800mA Non-dimmable CC Driver LTP32-1HMC-3X-B W G

32W 500~800mA Non-dimmable CC Driver LTP32-1HMC-3X-B W G Features · Constant Current Track Driver, High P, Flicker-free · High efficiency, full load efficiency ≥86% · Strong adaptation, can be adapted to domestic and foreign common guide rails · There are two series of fixed current and dip switch current, Output current range 500-800mA · Protection grade Class II, 5 years warranty Techncial Parameters Model LTP32-1HMC-3X-B W G Input Efficiency ≥86%@230VAC, Full load Rated Inpu...

detail
40W 700~1000mA Non-dimmable CC Driver LTP40-1HMC-3X-B W G

40W 700~1000mA Non-dimmable CC Driver LTP40-1HMC-3X-B W G Features · Constant Current Track Driver, High P, Flicker-free · High efficiency, full load efficiency ≥86% · Strong adaptation, can be adapted to domestic and foreign common guide rails · There are two series of fixed current and dip switch current, Output current range 700-1000mA · Protection grade Class II, 5 years warranty Technical Parameters Model LTP40-1HMC-3X-B W G Input Efficiency ≥86%@230VAC, Full load Rated Input Vol...

detail
42W 300~1050mA*1ch Non-dimmable Driver LTP42-1HMC-4X-530

42W 300~1050mA*1ch Non-dimmable Driver LTP42-1HMC-4X-530 Features · Constant Current Track Driver, High P, Flicker-free · High efficiency, full load efficiency ≧89% · Strong adaptation, can be adapted to domestic and foreign common guide rails · There are two series of fixed current and dip switch current, Output current range 300-1050mA · Protection grade Class II, 5 years warranty Technical Paramaters Model LTP42-1HMC-4X-530 Input Efficiency ≥89%@230VAC, Full load Rated Input Voltage...

detail
42W 300~1050mA Non-dimmable CC Driver LTP42-1WMC-4X-W B G

42W 300~1050mA Non-dimmable CC Driver LTP42-1WMC-4X-W B G Features · The housing is made from V0 flame retardant PC materials from COVESTRO. · Small size and light weight. Wide range of applicable lamps. · Class 2 LED driver, Safety Extra Low Voltage (LVLE). · Innovative thermal management technology intelligently protects the life of the LED driver. · Overheat, overload, short circuit protection and automatic recovery. · Up to 50,000-hour life time. · 5-year warranty (AiSHi capacitor). Techn...

detail
42W 700~1050mA Non-dimmable CC Driver LTP42-1HMC-3X-W B G

42W 700~1050mA Non-dimmable CC Driver LTP42-1HMC-3X-W B G Features · The housing is made from V0 flame retardant PC materials from COVESTRO. · Small size and light weight. Wide range of applicable lamps. · Class 2 LED driver, Safety Extra Low Voltage (LVLE). · Innovative thermal management technology intelligently protects the life of the LED driver. · Overheat, overload, short circuit protection and automatic recovery. · Up to 50,000-hour life time. · 5-year warranty (AiSHi capacitor). Techn...

detail
