  • 10W 120~350mA*1ch 0/1-10V CC Driver PUP10A-1WMC-350

    10W 120~350mA*1ch 0/1-10V CC Driver PUP10A-1WMC-350

    10W 120~350mA 0/1-10V Constant Current Driver PUP10A-1WMC-350 PUP10A-1WMC-350 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support 3-in-1 dimming mode:0/1-10V active signal, adjustable resistance, PWM(A model) 3. Input voltage of 120VAC ~ 277VAC 4...

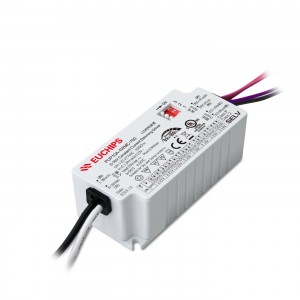

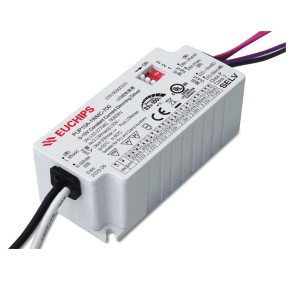

  • 10W 350~700mA*1ch 0/1-10V CC Driver PUP10A-1WMC-700

    10W 350~700mA*1ch 0/1-10V CC Driver PUP10A-1WMC-700

    10W 350~700mA 0/1-10V Constant Current Driver PUP10A-1WMC-700 PUP10A-1WMC-700 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support 3-in-1 dimming mode:0/1-10V active signal, adjustable resistance, PWM 3. Input voltage of 120VAC ~ 277VAC 4. Dimming...

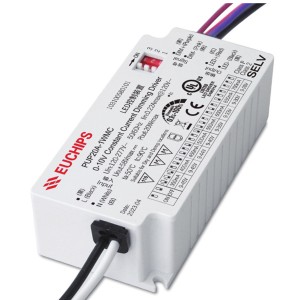

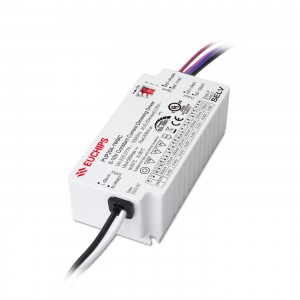

  • 20W 350~700mA*1ch 0/1-10V CC Driver PUP20A-1WMC

    20W 350~700mA*1ch 0/1-10V CC Driver PUP20A-1WMC

    20W 350~700mA 0/1-10V Constant Current Driver PUP20A-1WMC PUP20A-1WMC is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support 3-in-1 dimming mode:0/1-10V active signal, adjustable resistance, PWM(A model) 3. Input voltage of 120VAC ~ 277VAC 4. Dimmin...

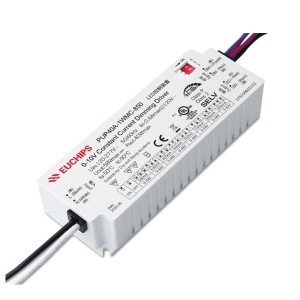

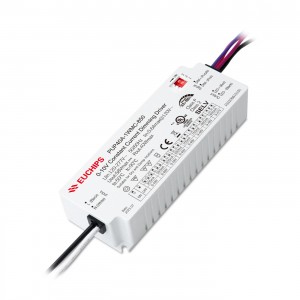

  • 40W 500~850mA*1ch 0/1-10V CC Driver PUP40A-1WMC-850

    40W 500~850mA*1ch 0/1-10V CC Driver PUP40A-1WMC-850

    40W 500~850mA 0/1-10V Constant Current Driver PUP40A-1WMC-850 PUP40A-1WMC-850 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support 3-in-1 dimming mode:0/1-10V active signal, adjustable resistance, PWM(A model) 3. Input voltage of 120VAC ~ 277VAC 4...

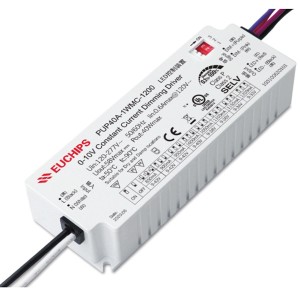

  • 40W 850~1200mA*1ch 0/1-10V CC Driver PUP40A-1WMC-1200

    40W 850~1200mA*1ch 0/1-10V CC Driver PUP40A-1WMC-1200

    40W 850~1200mA 0/1-10V Constant Current Driver PUP40A-1WMC-1200 PUP40A-1WMC-1200 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation. Features 1. Single channel output, output current level selectable by DIP S.W. 2. Support 3-in-1 dimming mode: 0/1-10V active signal, adjustable resistance, PWM(A model) 3. Input voltage of 120VAC ~ 277V...

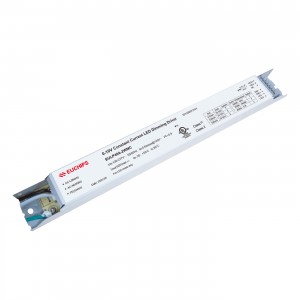

  • 40W 415/620/830mA*2ch 0-10V CC Driver EULP40A-2WMC

    40W 415/620/830mA*2ch 0-10V CC Driver EULP40A-2WMC

    40W 415/620/830mA*2ch 0-10V CC Driver EULP40A-2WMC EULP40A-2WMC is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by switch. EULP40A-2WMC can be connected to 0-10V main controller to achieve a smooth dimming effect. Features · 2 channel output, output current level selectable by DIP S.W. · Wide input voltage of 120VAC~277VAC · Meeting UL class2 standard · High efficiency up to 85% · Built-in active PFC function · Logarithmic dimming, dimming effec...

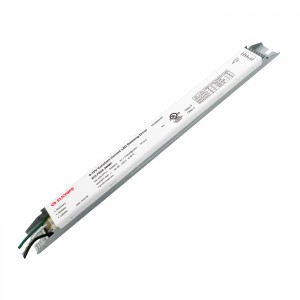

  • 80W 830/1250/1600mA*2ch 0-10V CC Driver EULP80A-2WMC

    80W 830/1250/1600mA*2ch 0-10V CC Driver EULP80A-2WMC

    80W 830/1250/1600mA*2ch 0-10V CC Driver EULP80A-2WMC EULP80A-2WMC is a 80W AC/DC constant current mode output LED driver featuring the multiple levels selectable by switch. EULP80A-2HMC can be connected to 0-10V main controller to achieve a smooth dimming effect. Features ·2 channel output, output current level selectable by DIP S.W. · Wide input voltage of 120VAC~277VAC · Meeting UL class2 standard · High efficiency up to 85% · Built-in active PFC function · Logarithmic dimming, dimming effe...

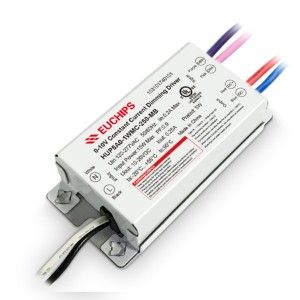

  • 5W 250mA 0-10V CC Driver HUP5A0-1WMC-250-MB

    5W 250mA 0-10V CC Driver HUP5A0-1WMC-250-MB

    5W 250mA 0-10V CC Driver HUP5A0-1WMC-250-MB Features • Wide input voltage of 108-305Vac • Great Surge 2.5kV(ringwave) • 50,000Hour Life @ Tc=90C • 5 Years Warranty @ Tc<=90C • ±5% Output Current Accuracy • 0-10V • UL Class P, Class 2 • Safety according to UL8750 &UL 1310 Technical Parameters Model HUP5A0-1WMC-250-MB       Input Efficiency 86% Voltage 120VAC-277VAC Frequency 50~60Hz Power Factor ≥0.9@120VAC, full load THD <10%@120Vac&Full-Load Curren...

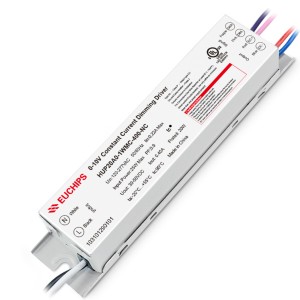

  • 20W 400mA 0-10V CC Driver HUP20A0-1WMC-400-NC

    20W 400mA 0-10V CC Driver HUP20A0-1WMC-400-NC

    20W 400mA 0-10V CC Driver HUP20A0-1WMC-400-NC Features • Wide input voltage of 108-305Vac • Great Surge 2.5kV(ringwave) • 50,000Hour Life @ Tc=90C • 5 Years Warranty @ Tc<=90C • ±5% Output Current Accuracy • 0-10V • UL Class P, Class 2 • Safety according to UL8750 &UL 1310 Technical Parameters Model HUP20A0-1WMC-400-NC         Input Efficiency 86%@120Vac&Full-Load Voltage 120~277VAC Frequency 47~63Hz Power Factor >0.9@120Vac&Full-Load THD <...

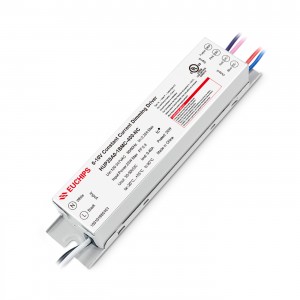

  • 20W 400mA 0-10V CC Driver HUP20A0-1BMC-400-NC

    20W 400mA 0-10V CC Driver HUP20A0-1BMC-400-NC

    20W 400mA 0-10V CC Driver HUP20A0-1BMC-400-NC Features • Wide input voltage of 108-347Vac • Great Surge 2.5kV(ringwave) • 50,000Hour Life @ Tc=90C • 5 Years Warranty @ Tc<=90C • ±5% Output Current Accuracy • 0-10V • UL Class P, Class 2 • Safety according to UL8750 &UL 1310 Technical Parameters Model HUP20A0-1BMC-400-NC         Input Efficiency 86%@120Vac&Full-Load Voltage 120~347VAC Frequency 47~63Hz Power Factor >0.9@120Vac&Full-Load THD <...

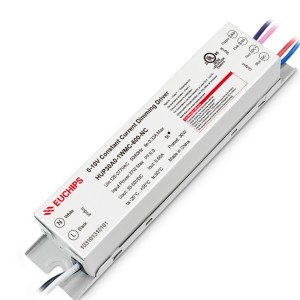

  • 30W 600mA 0-10V CC Driver HUP30A0-1WMC-600-NC

    30W 600mA 0-10V CC Driver HUP30A0-1WMC-600-NC

    30W 600mA 0-10V CC Driver HUP30A0-1WMC-600-NC Features • Wide input voltage of 108-305Vac • Great Surge 2.5kV(ringwave) • 50,000Hour Life @ Tc=90C • 5 Years Warranty @ Tc<=90C • ±5% Output Current Accuracy • 0-10V • UL Class P, Class 2 • Safety according to UL8750 &UL 1310 Technical Parameters Model HUP30A0-1WMC-600-NC         Input Efficiency 86%@120Vac&Full-Load Voltage 120~277VAC Frequency 47~63Hz Power Factor >0.9@120Vac&Full-Load THD <...

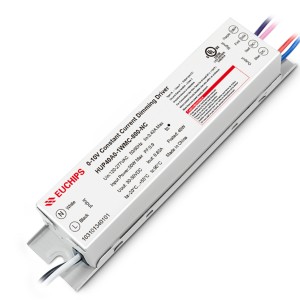

  • 40W 800mA 0-10V CC Driver HUP40A0-1WMC-800-NC

    40W 800mA 0-10V CC Driver HUP40A0-1WMC-800-NC

    40W 800mA 0-10V CC Driver HUP40A0-1WMC-800-NC Features • Wide input voltage of 108-305Vac • Great Surge 2.5kV(ringwave) • 50,000Hour Life @ Tc=90C • 5 Years Warranty @ Tc<=90C • ±5% Output Current Accuracy • 0-10V • UL Class P, Class 2 • Safety according to UL8750 &UL 1310 Technical Parameters Model HUP40A0-1WMC-800-NC         Input Efficiency 86%@120Vac&Full-Load Voltage 120~277VAC Frequency 47~63Hz Power Factor >0.9@120Vac&Full-Load THD <...
