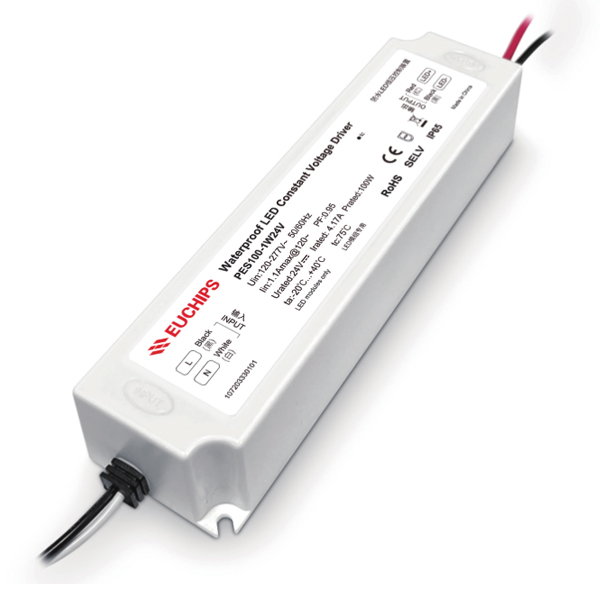

100W 24VDC Non-dimmable Waterproof CV Driver PES100-1W24V
100W 24VDC Non-dimmable Waterproof CV Driver PES100-1W24V
Features
· Full power output
· Insolated PC design
· Isolated design, safe and reliable
· Protections:Over load, Short circuit, over Current
· Protection grades is as high as IP65
· 5 years warranty
· No Flicker
Technical Parameters
|
Model |
PES100-1W24V | |
| Input | Efficiency | >88%@230VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Current | 1.1Amax@120VAC | |
| No load power | <0.5W | |
| Inrush current | Cold start,43A@230VAC 312us | |
| Turn On Delay Time | ≤0.5 s, at230Vac (When the light begins to shine) | |
| Output | Current/Voltage/Power | 4.17A/24VDC/100W |
| Output Voltage | 23-25V | |
| Ripple Current | ≤200mV | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| No load output voltage | 25.2V max | |
| Protection | Over load | Drop the voltage, troubleshoot the fault. The output is normal |
| Short circuit | Hiccup, troubleshoot output normal | |
| Over Current | Drop the voltage, troubleshoot the fault. The output is normal | |
| Safety & EMC | Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA | |
| Safety Standards | EN61347-1 EN61347-2-13 UL1310 | |
| EMC Emission | EN55015 FCC Part 15 Class B | |
| Insulation Resistance | 5MΩ | |
|
Others |
Working Temp. | -20℃~40℃ |
| Storage Temp.; Humidity | -40℃~75℃, 20-90%RH | |
| Tc | 75℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 550g±5%/PCS; 20PCS/Carton; 11.5kg±5%/Carton; Carton Size: 333*218*205mm(L*W*H) | |
| Dimension | 190*52*38mm(L*W*H) | |
