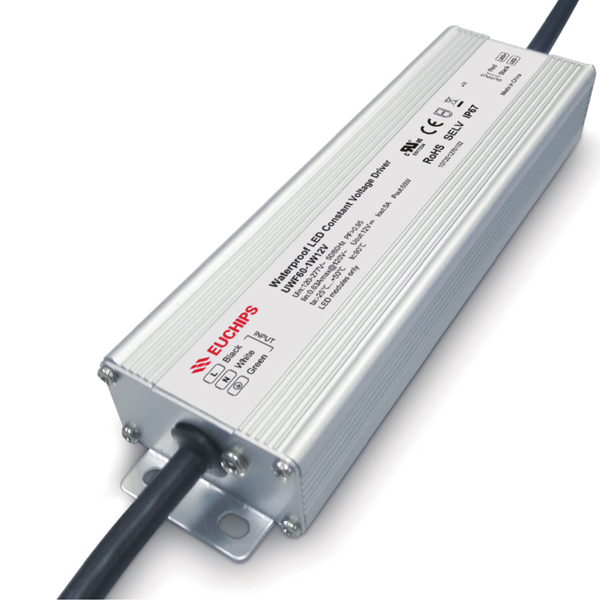

60W 12VDC Non-dimmable Waterproof CV Driver UWF60-1W12V

Short Description:

  • Item No.: UWF60-1W12V
  • Input Voltage: 120VAC-277VAC
  • Output Current: 5A
  • Output Voltage: 12VDC
  • Output Power: 60W
  • Dim Mode: Non-dimmable
  • G.W.: 250g
  • Size: 145*40.8*22.5mm

Product Detail

Product Tags

60W 12VDC Non-dimmable Waterproof CV Driver UWF60-1W12V

Features

·Width voltage input,full power output
·Design of metal shell, improving heat dissipation performance
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Comply with CE/UL/SELV
·Protection grades is as high as IP67
·5 years warranty

Technical Parameters

Model UWF60-1W12V


Input

Efficiency 87%@230VAC, Full load
Voltage 120VAC-277VAC
Frequency 50~60Hz
Power Factor >0.95@230VAC, Full load
Standby power <0.5W
Current 0.63Amax@120VAC
Inrush Current Cold start 50A@230VAC
Output Current/Voltage/Power 5A/12VDC/60W
Voltage Tolerance ±1%
Channel 1
Start Delay <1.5s, at 230Vac
Protection Short Circuit Auto recovery when failure is removed.
Over Voltage <36VDC Shut down the output, After restart recovers automatically.
Over Load <3.75A auto recovery when failure is removed.
Safety Surge L-N: 2kV
Withstand Voltage I/P-O/P:3000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA
Safety Standards UL8750(type”HL”),CSA C22.2 No.250.13-12 ; EAC TC004,UL60950-1,TUV EN60350-1; ,J61347-1,J613447-2-13 GB19510.1,GB19510.14,UL879




Others

Working Temp. -25℃ ~+50℃
Storage Temp.; Humidity -40℃ ~85℃ 20-90%RH
Tc 90℃
Material Metal
IP Rating IP67
Lifetime 50,000h@tc:85℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 250g±5%/PCS; 30PCS/Carton; 7.6kg±5%/Carton; Carton Size: 270*203*186mm(L*W*H)
Dimension 145*40.8*22.5mm(L*W*H)
