65W 1050/1200/1400mA*1ch DALI CC Driver EULP65D-1HMC-0

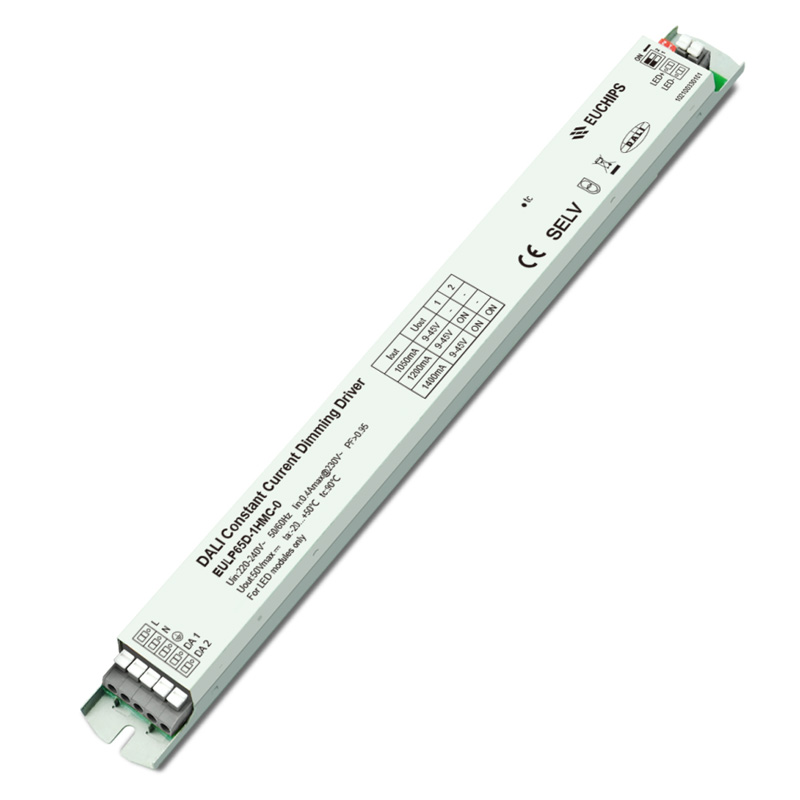

1050mA/1200mA/1400mA 65W DALI Constant Current Driver EULP65D-1HMC-0
EULP65D-1HMC-0 is a 65W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EULP65D-1HMC-0 can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386
3. Support Touch-DIM function
4. High efficiency up to 85%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, liner light, decorative light, and so on
Technical Parameters
| Model | EULP65D-1HMC-0 | |
| Input | Efficiency | >85%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load | <10%@230VAC, Full load | |
| AC Current(max) | 0.4Amax@230VAC | |
| Standby power | <1W | |
| Inrush Current(max) | Cold start,39A(twidth=28.9us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC)Power(W) | 1050mA/9-45VDC/47.25W 1200mA/9-45VDC/54W 1400mA/9-45VDC/63W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 50Vdc | |
| Function | Dimming Mode | DALI/Touch DIM |
| Dimming Range | 0.1-100% Dimming to off | |
| Protection | Short circuit | Close output，recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Safety&EMC | Surge | L-N: 1KV; L&N-G: 2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing Size | Net weight: 300g±5%/PCS; 50PCS/Carton; 15.5kg±5%/Carton; Carton Size: 370*326*127mm(L*W*H) | |
| Dimension | 360*30*21mm(L*W*H) | |
