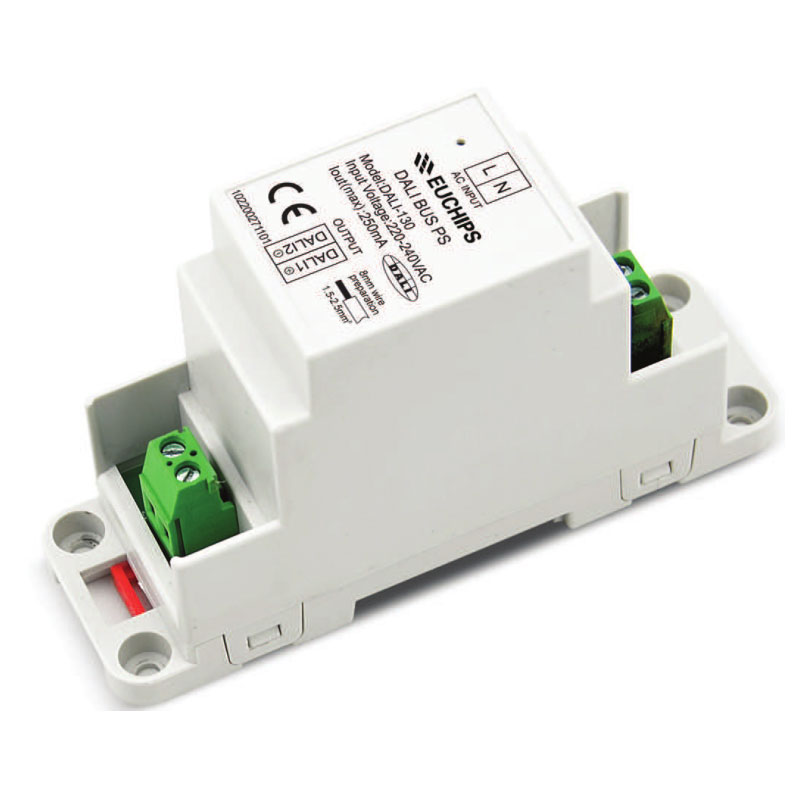

220-240VAC 250mA*1ch DALI Master Controller DALI-130

Short Description:

  • Item No.: DALI-130
  • Input Voltage: 220-240VAC
  • Output Current: 250mA
  • Output Voltage: 16V+5%
  • Output Power: 4W
  • Dim Mode: DALI / Touch DIM
  • G.W.: 105g
  • Size: 111*35*67mm(L*W*H)

Product Detail

Product Tags

Features

1. Meet DALI Protocol IEC62386

2. Output current up to 250mA Max

3. Support two installation methods of rail and screw fixing

4. Support over current protection

5. LED indicator light indicate status

Technical Parameters

Item DALI-130
Input Voltage 220-240VAC
Input Frequency 50/60Hz
Output Voltage 16V+5%
Output Current 250mA
Output Power 4W
Working temp -20-50℃
Net Weight 71g
Gross Weight 105g
Product size 111*35*67mm(L*W*H)
Packing size 354*234*232mm(L*W*H)/60Pcs/Carton
Recommended wire size 1.5-2.5mm²
