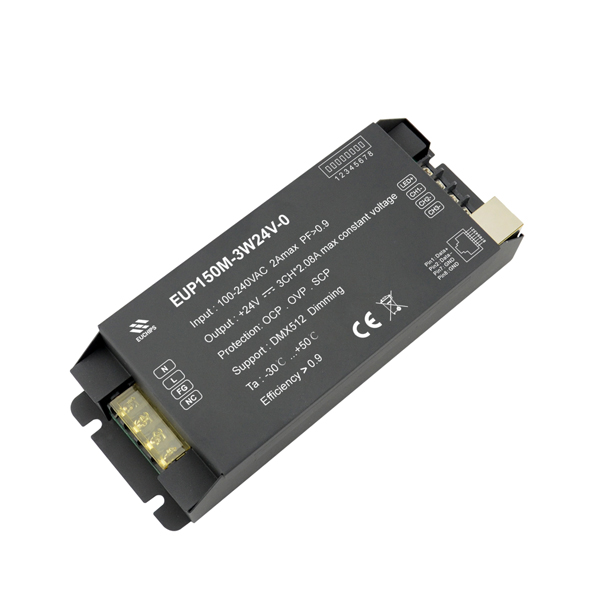

150W 24VDC 2.08A*3ch Constant Voltage DMX Driver EUP150M-3W24V-0

Short Description:

Item No.: EUP150M-3W24V-0
Input Voltage: 100-240
Output Current: 2.08A*3CH
Output Voltage: 24
Output Power: 150
Dim Mode: DMX512
G.W.: 610
Size: 196*75*40

Product Detail

Product Tags

150W 24VDC 2.08A*3ch Constant Voltage DMX Driver EUP150M-3W24V-0

Feature

1. Three channel constant voltage, 24VDC output
2. Support DMX512 dimming signal
3. Dimming range from 0-100%, LED start at 1% possible
4. Wide range voltage Input 100-240VAC
5. High efficiency: up to 90%
6. High PF:>0.95(115VAC)
7. Dimming effect smooth, no flicker
8. Output short circuit protection , over current protection, over voltage protection

Technical Parameter

Product Name		150W 24V DMX512 RGB Constant Voltage LED Driver
Model		EUP150M-3W24V-0
Output	Voltage	24VDC
	Current	3*2.08A
	Rated power	150W
Input	Voltage Range	100VAC – 240VAC
	Frequency Range	50– 60Hz
	Efficiency(Typ)	≧90%
	Power Factor(Typ)	≧0.9
	Channel	3
Function	Dimming	Support DMX 512 dimming signal
Protection	Short Circuit	Recovers automatically after removed
	Over Voltage	Recovers automatically after removed
	Over Current	Recovers automatically after removed
Others	Dimension	196(L) 75(W)40 (H)mm
	N.W	610g
	Packing	288(L)206(W)250(H) mm；18Pcs/12.5kg/Carton
	Working temp.	-30℃ — 50℃
