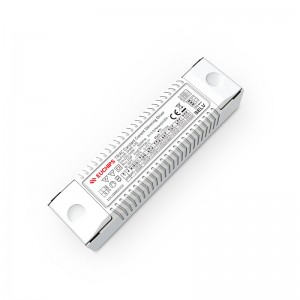

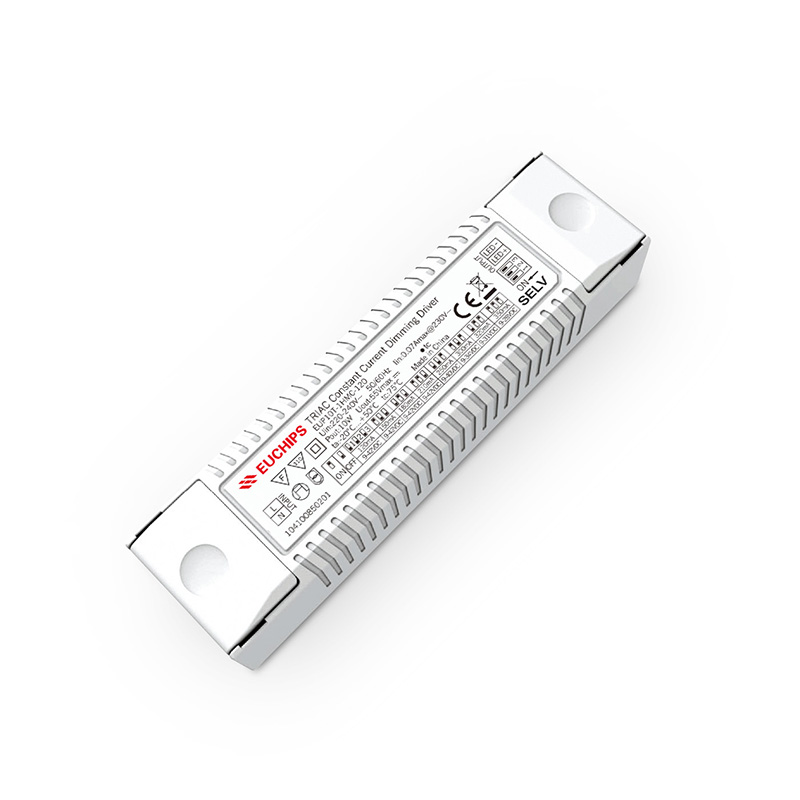

10W 120-350mA*1ch Phase-cut CC Driver EUP10T-1HMC-120
10W 120-350mA*1ch Phase-cut CC Driver EUP10T-1HMC-120
EUP10T-1HMC-120 is a constant output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens,Dalitek etc.) to achieve a smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support Leading edge (Triac) and Trailing edge (ELV) dimmer
· Dimming range from 40VAC to 240VAC
· Class Ⅱ power supply. Full protective plastic housing
· Dimming effect smooth, Flicker free
· Protections: Short circuit, overload
· Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP10T-1HMC-120 | ||
|
Input |
Efficiency | 75%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Current | 0.07Amax@230VAC, Full load | ||
| PF | ≥0.95@230VAC, Full load | ||
| THD | ≤10%@230VAC, Full load | ||
| Standby power | ≤3W | ||
| No load power | ≤3W | ||
| Inrush Current | Cold start, 6A(twidth=10us measured at 50% Ipeak@230VAC | ||
|
Output |
Current/Voltage/Power | 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 210mA/9-42VDC/8.82W250mA/9-40VDC/10W 300mA/9-33VDC/9.9W 320mA/9-31VDC/9.92W 350mA/9-28DC/9.8W | |
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 55V Max | ||
| Turn On Time | ≤1s, at230Vac (When the light begins to shine) | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Short Circuit | Shut down output, Auto-recovery after Fault Clearance | |
| Overload | Current drops, Auto-recovery after Fault Clearance | ||
| Safety | Withstand Voltage | I/P-O/P:1500Vac/1min/<5mA | |
| Safety standards | EN61347-1,EN61347-2-13 | ||
|
Others |
Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 51.7*23.7*142cm(L*W*H) | ||
| Dimension | 110*30*22mm(L*W*H) | ||
