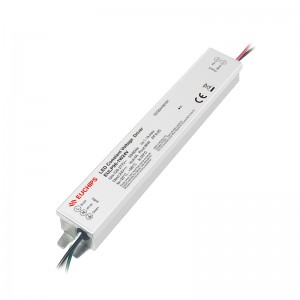

96W 24VDC Non-dimmable CV Driver EULP96-1W24V-T
96W 24VDC Non-dimmable CV Driver EULP96-1W24V-T
EULP96-1W24V-T is a constant voltage output LED driver. The compact body is easy to install in small spaces, with stable output and high efficiency.
Features
• Supply Voltage: 120-277Vac
• Protection: Short circuit, Overload, Overcurrent, Over-temperature
• 50,000Hour Life @ tc 90℃
• Class 2 output
• Safety according to UL8750 &UL 1310
• Suitable for Dry, Damp Locations
• Suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP96-1W24V-T | |
| Input | Voltage | 120~277 Vac |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥91%@120VAC、≥93%230VAC,277VAC | |
| PF | >0.95@120V、230V、277V full load | |
| Current | 1.1Amax @120VAC 0.6Amax@230VAC 0.45Amax@277VAC | |
| THD | <10%@full load | |
| Inrush current | Cold start,26.4A@120VAC 196us, 59.6A@277VAC 196uS | |
| No load power | ≤0.5W | |
| Turn on Time | ≤0.75S | |
| Output | Voltage | 24V |
| Voltage Accuracy | ±3% | |
| Current | 4A | |
| Power | 96W | |
| Channel | 1 | |
| Ripple Voltage | ≤240mV(p-p) | |
| Protection | Overload | Hiccup Protection, Auto-recovery after Fault Clearance |
| Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | The protection is triggered when the current exceeds 4.17A (below 100W) @24V, entering hiccup mode, and will automatically recover after the fault is resolved. | |
| Over-temperature | Built-in temperature sensor: If the internal temperature exceeds the rated set value (100°C), the drive will enter a protective state (output derated by 50%).When the temperature returns to normal, the drive resumes normal output. | |
| Safety&EMC | Surg | L-N 4KV ；L-N-PG 4KV |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA，I/P-PG:1800Vac/1min/<5mA，O/P-PG:500Vac/1min/<5mA | |
| Safety standards | UL8750, UL1310，EN61347-1,EN61347-2-13 | |
| EMC Emission | EN55015, FCC PART15 ClassB | |
| Insulation Resistance | 5Mfi | |
| Others | Working temp. | ta:-40~+60℃ (-40°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃(-40°F-185°F), 20-90%RH | |
| tc | 90℃(194°F) @120Vac | |
| Lifetime | 50,000h@tc:90℃(194°F) | |
| Warranty | 5years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | >25000 times | |
| Dimension | 182*27.4*20.6mm(7.17*1.08*0.811 Inch)(L*W*H) | |
| Packing size | Net weight: 208g (0.459 lb)±5%/PCS; 60PCS/Carton; 12.9kg(28.44 lb)±5%/Carton; Carton Size: 392*247*154mm(15.43*9.72*6.06 Inch)(L*W*H) | |
