10W 200/250mA*1ch Phase-cut CC Driver DPE10T-1HMC
10W 200/250mA*1ch Phase-cut CC Driver DPE10T-1HMC

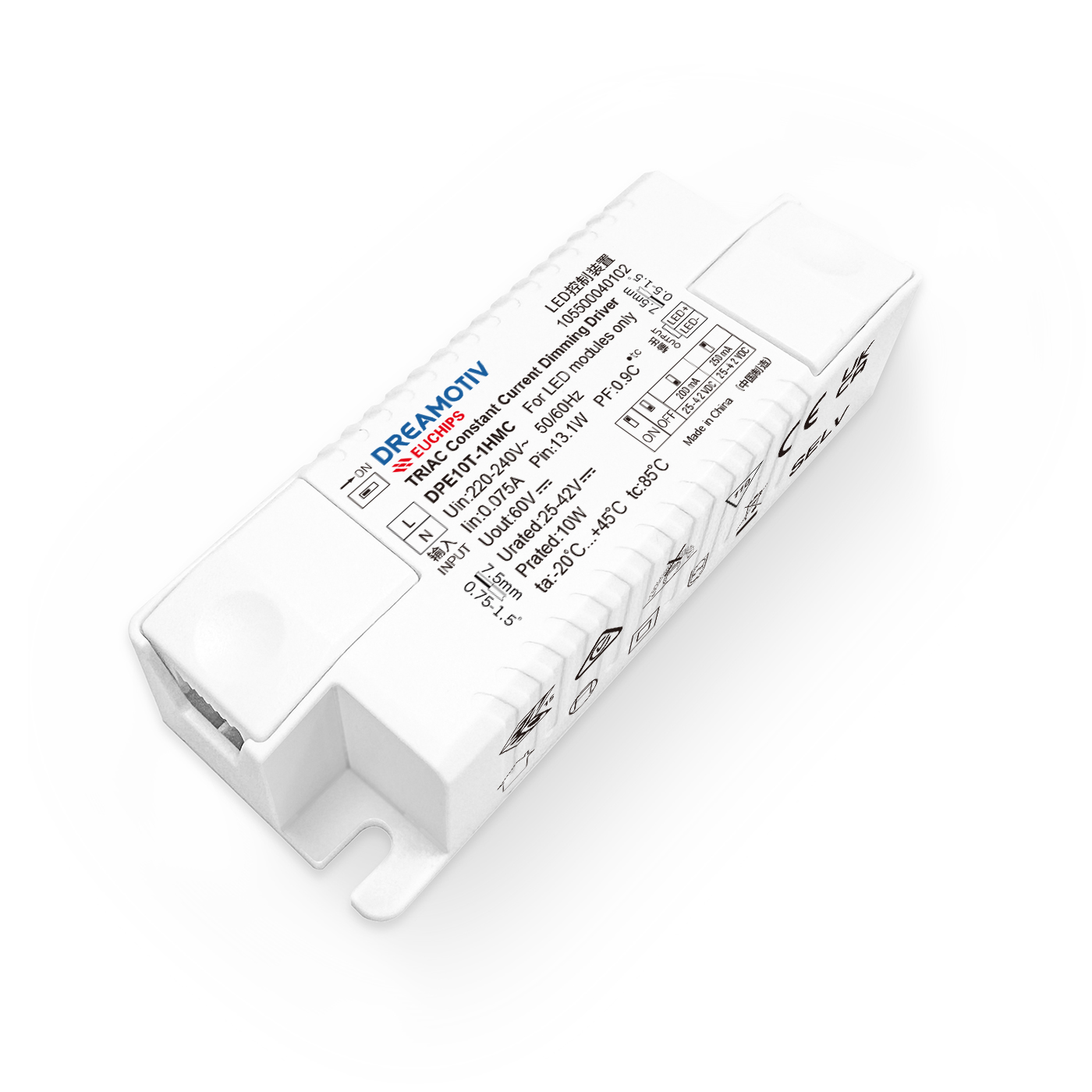

The DPE10T-1HMC is a 10W Triac-dimmable constant current LED driver, featuring a compact body design with a square-shaped housing. It is widely used in downlights, spotlights, and panel lights. Support
cutting-edge phase-cutting and trailing edge phase-cutting dimming
Features
• Single-channel constant current output
• Over temperature and overload protection, V0 flame-retardant housing
• High efficiency up to 78%
• Removable end-cover design for easy installation in narrow spaces
• 50,000-hour lifespan with a 5-year warranty
• IP20 protection rating, suitable for indoor Class II luminaires
· Flicker-free isolation
Technical Parameters
|
Model |
DPE10T-1HMC | ||
|
Input |
Rated input voltage | 220VAC~240VAC | |
| Input Voltage range | 198VAC~264VAC | ||
| Input Current | 0.075Amax@230VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Power Factor | 0.9C@230VAC, full load | ||
| Efficiency | 78%@230VAC, full load | ||
| THD | <25%@230VAC, full load | ||
| No load power | ≤0.5W | ||
| Inrush Current | Cold start, 2.5A@230VAC 50us | ||
|
Output |
Current/Voltage/power | 200mA/25-42VDC/8.4W 250mA/25-42VDC/10.5W | |
| Current Accuracy | ±5% | ||
| Frequency | 65K | ||
| Channel | 1 | ||
| Output ripple current | High frequency>1K HZ: ±5% | ||
| Low frequency<120 HZ: ±5% | |||
| Pst LM | ≤1.0 | ||
| SVM | ≤0.4 | ||
| No load output voltage | 60VDC max | ||
| Turn on delay Time | ≤0.5s, @230Vac(When the light begins to shine) | ||
|
Function |
Dimming type | Triac Leading edge phase cutting and trailing edge phase cutting dimming | |
| Dimming range | 1%-100% | ||
| Dimming curve | Linearity | ||
| Flicker (wave depth) | Complies with IEEE Std 1789-2015 standard | ||
|
Protection |
Over load | Shut down output, Auto-recovery after Fault Clearance | |
| over temperature | When the IC temperature exceeds 130°C, the chip enters overtemperature regulation mode, gradually reducing the output current, thereby controlling the output power and temperature rise. | ||
|
Safety& EMC |
Surge | L-N:1KV (Comb Wave) | |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | ||
| Safety Standards | TUV (Germany) EN61347-1，EN61347-2-13，EN62493 CB (CBmember states) IEC61347-1，IEC61347-2-13 | ||
| CE (Europe) EN61347-1，EN61347-2-13，EN62384 RCM (Australia) AS 61347-1，AS 61347-2-13 | |||
| ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | |||
| EMC Emission | CE (Europe) EN55015，EN61000-3-2，EN61000-3-3，EN61547 RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
|
Environment |
Working Temp | -20℃~45℃ | |
| Storage Temp | -40℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
|
Others |
tc | 85℃ for safety & life | |
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:85℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 95.8*36.2*24mm(L*W*H) | ||
| Packing(weight) | Net weight: 55g±5%/PCS; 120PCS/Carton; 7.1kg±5%/Carton; Carton Size: 367*292*137mm(L*W*H) | ||
| Noise | ≤30dB(A) @ 20-100cm | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz，an ambient temperature of 25 ℃ and 50% humiditywithout any special instructions | ||
