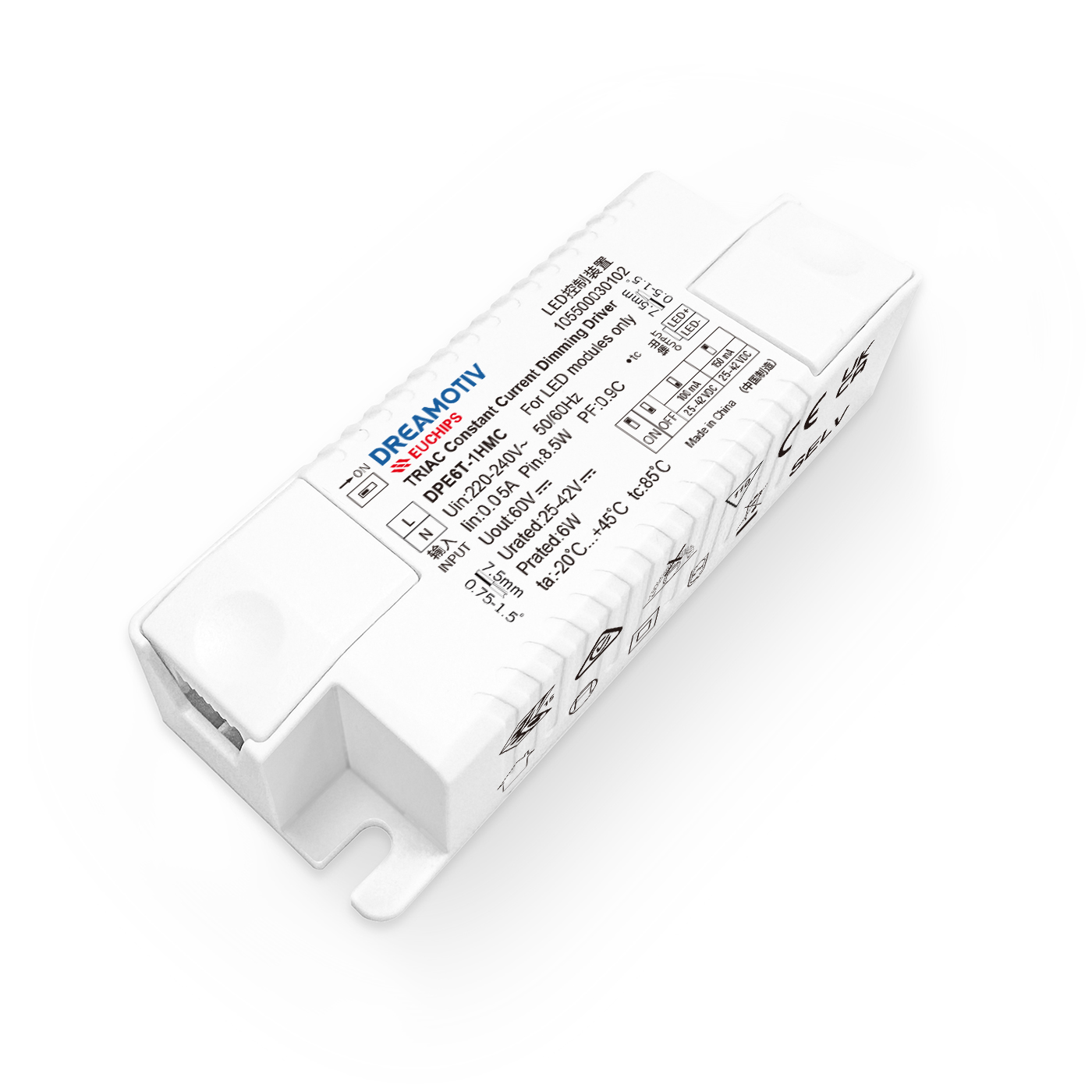

6W 100~150mA*1ch Phase-cut CC Driver DPE6T-1HMC

Short Description:

Item No.: DPE6T-1HMC
Output Power: 6W

Download Certificates Download Test Reports

Product Detail

Product Tags

6W 100~150mA*1ch Phase-cut CC Driver DPE6T-1HMC

The DPE6T-1HMC is a 6W Triac-dimmable constant current LED driver, featuring a compact body design with a square-shaped housing. It is widely used in downlights, spotlights, and panel lights.Support
cutting-edge phase-cutting and trailing edge phase-cutting dimming

Features

• Single-channel constant current output
• Over temperature and overload protection, V0 flame-retardant housing
• High efficiency up to 74%
• Removable end-cover design for easy installation in narrow spaces
• 50,000-hour lifespan with a 5-year warranty
• IP20 protection rating, suitable for indoor Class II luminaires
· Flicker-free isolation

Technical Parameters

Model	DPE6T-1HMC
Input	Rated input voltage	220VAC~240VAC
	Input Voltage range	198VAC~264VAC
	Input Current	0.05Amax@230VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	0.9C@230VAC, full load
	Efficiency	74%@230VAC, full load
	THD	<25%@230VAC, full load
	No load power	≤0.5W
	Inrush Current	Cold start, 2.5A@230VAC 50us
Output	Current/Voltage/power	100mA/25-42VDC/4.2W 150mA/25-42VDC/6.3W
	Current Accuracy	100mA ±15mA 150mA ±7%
	Frequency	65K
	Channel	1
	Output ripple current	High frequency>1K HZ: ±5%
	Output ripple current	Low frequency<120 HZ: ±5%
	Pst LM	≤1.0
	SVM	≤0.4
	No load output voltage	60VDC max
	Turn on delay Time	≤0.5s, @230Vac(When the light begins to shine)
Function	Dimming type	Triac Leading edge phase cutting and trailing edge phase cutting dimming
	Dimming range	1%-100%
	Dimming curve	Linearity
	Flicker (wave depth)	Complies with IEEE Std 1789-2015 standard
Protection	Over load	Shut down output, Auto-recovery after Fault Clearance
Protection	over temperature	When the IC temperature exceeds 130°C, the chip enters overtemperature regulation mode, gradually reducing the output current, thereby controlling the output power and temperature rise.
Safety& EMC	Surge	L-N:1KV (Comb Wave)
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA
	Safety Standards	TUV (Germany) EN61347-1，EN61347-2-13，EN62493 CB (CBmember states) IEC61347-1，IEC61347-2-13
		CE (Europe) EN61347-1，EN61347-2-13，EN62384 RCM (Australia) AS 61347-1，AS 61347-2-13
		ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CE (Europe) EN55015，EN61000-3-2，EN61000-3-3，EN61547 RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
Environment	Working Temp	-20℃~45℃
	Storage Temp	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	tc	85℃ for safety & life
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:85℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	95.836.224mm(LWH)
	Packing(weight)	Net weight: 55g±5%/PCS; 120PCS/Carton; 7.1kg±5%/Carton; Carton Size: 367292137mm(LWH)
	Noise	≤30dB(A) @ 20-100cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz，an ambient temperature of 25 ℃ and 50% humiditywithout any special instructions
