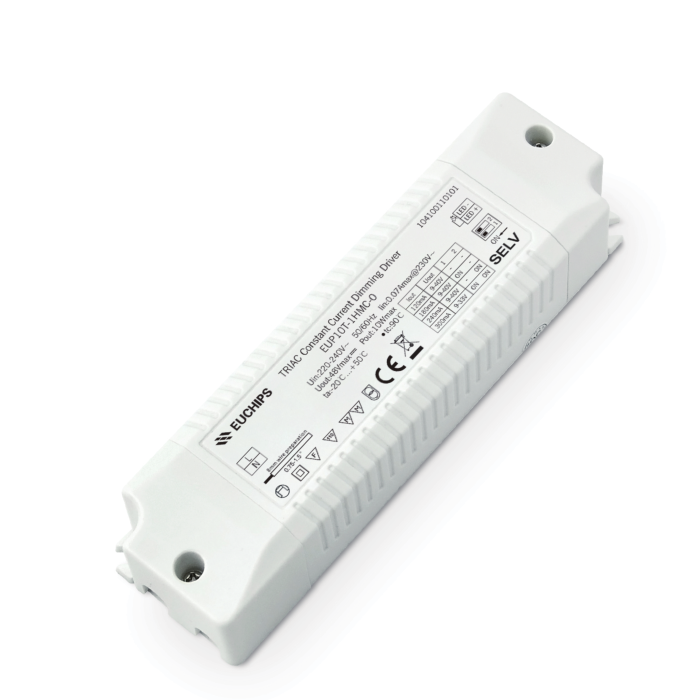

10W 120/180/240/300mA*1ch Phase-cut CC Driver EUP10T-1HMC-0

Short Description:

  • Item No.: EUP10T-1HMC-0
  • Input Voltage: 220-240VAC
  • Output Current: 120/180/240/300mA*1CH
  • Output Voltage: 9-40VDC
  • Output Power: 10W
  • Dim Mode: Triac/ELV
  • G.W.: 125g
  • Size: 150*43*29mm

Product Detail

Product Tags

10W 120/180/240/300mA Constant Current Phase-cut Driver EUP10T-1HMC-0

EUP10T-1HMC-0 is a constant current output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens, Dalitek etc.) to achieve a smooth dimming effect.

Technical Parameter

1. Single channel output, output current level selectable by DIP S.W.

2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer

3. Dimming range from 40VAC to 240VAC

4. Built-in active PFC function

5. Class 2 power supply. Full protective plastic housing

6. Dimming effect smooth, no flicker

7. Protections: Short circuit, over load, over temperature

8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on

Technical Parameter

Model EUP10T-1HMC-0
Output Current 120mA 180mA 240mA 300mA
Voltage 9-40VDC 9-40VDC 9-40VDC 9-33VDC
Power 4.8W 7.2W 9.6W 9.9W
Current Accuracy ±5%
Maximum Output Voltage 48VDC Max
Output LF Current Ripple(<120Hz) <3%
Channels 1
Input Voltage 220-240VAC
Frequency 50/60Hz
Power factor ≥ 0.95@230VAC,full load
Efficiency 73%@230VAC,full load
THD <20%@230VAC,full load
Current 0.07Amax@230VAC
Inrush Current Cold start,6A(twidth=30us measured at 50% Ipeak )@230VAC
Protection Short Circuit Shut down the output automatically recovers after faulty condition is removed
Over Load When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced
Over Temperature Shut down the output, recovers automatically when temp. back to normal.
Function Dimming Triac/ELV
Others Dimension 150*43*29mm(L*W*H)
G.W. 125g
Working temp. -20 ~ 50℃
Relative Humidity 20~90% RH
