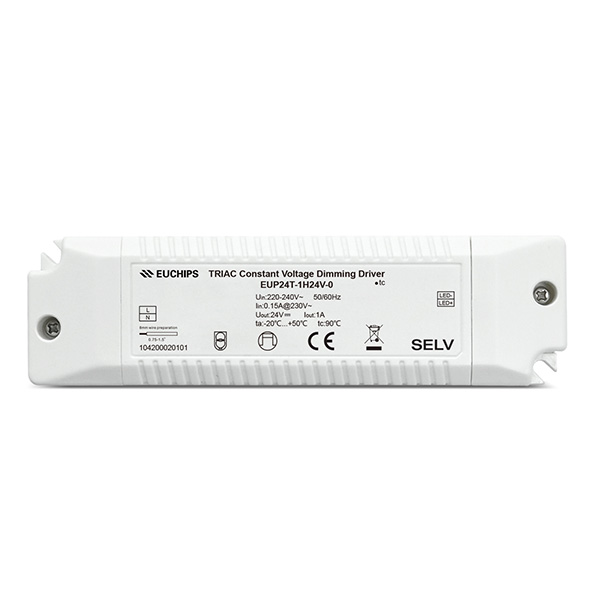

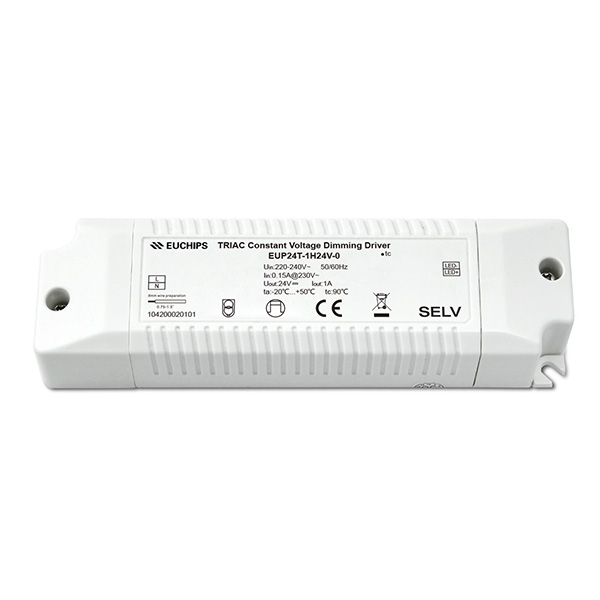

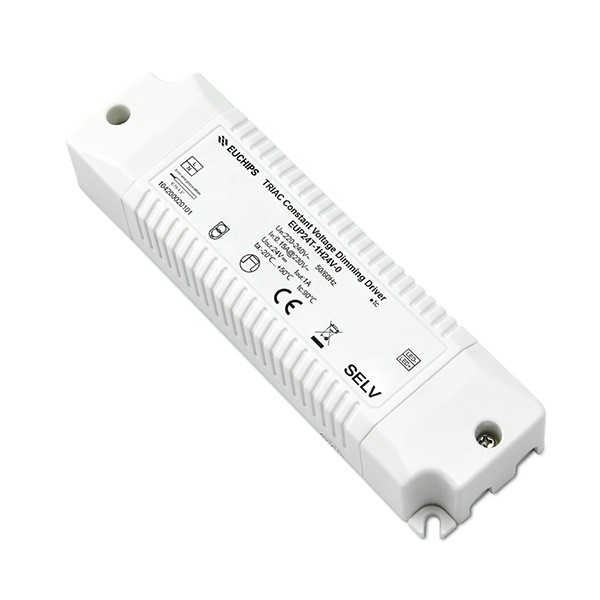

24W 24VDC Phase-cut CV Driver EUP24T-1H24V-0
24W 24VDC Phase-cut Constant Voltage Driver EUP24T-1H24V-0
EUP24T-1H24V-0 is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens, Dalitek etc.) to achieve a smooth dimming effect.
Features
1. Single channel constant voltage output,1A Max
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for constant voltage LED lighting application, such as LED strip, wall washer, in-Ground lamps, flood light, and so on
Technical Parameter
| Model | EUP24T-1H24V-0 | |
| Output | Channels | 1 |
| Voltage | 24VDC | |
| Current | 1A | |
| Power | 24W | |
| Voltage accuracy | ±3% | |
| Input | Voltage | 220- 240VAC |
| Dimming voltage range | 40-240VAC | |
| Frequency | 50/60Hz | |
| Current | 0.15A max@230VAC | |
| Power factor | >0.95@230VAC, full load | |
| THD | <20%@230VAC, full load | |
| Efficiency | 83%@230VAC,full load | |
| Inrush current | Cold start,15A(twidth=60us measured at 50% lpeak)@230VAC | |
| Protections | Short circuit | Close output,recovers automatically after fault removed |
| Over load | Close output,recovers automatically after fault removed | |
| Over temperature | Shut down the output, recovers automatically when temp. back to normal | |
| Function | Dimming | Triac/ELV |
| Others | Dimension | 150*43*29 mm（L*W*H） |
| G.W. | 150g | |
| IP Rating | IP20 | |
| Working Temperature | -20℃ ~ 50℃ | |
| Relative Humidaty | 20~90% RH | |
