10W 350~700mA CC Driver PUP10T-1LMC-700
10W 350~700mA Phase-cut Constant Current LED Driver PUP10T-1LMC-700

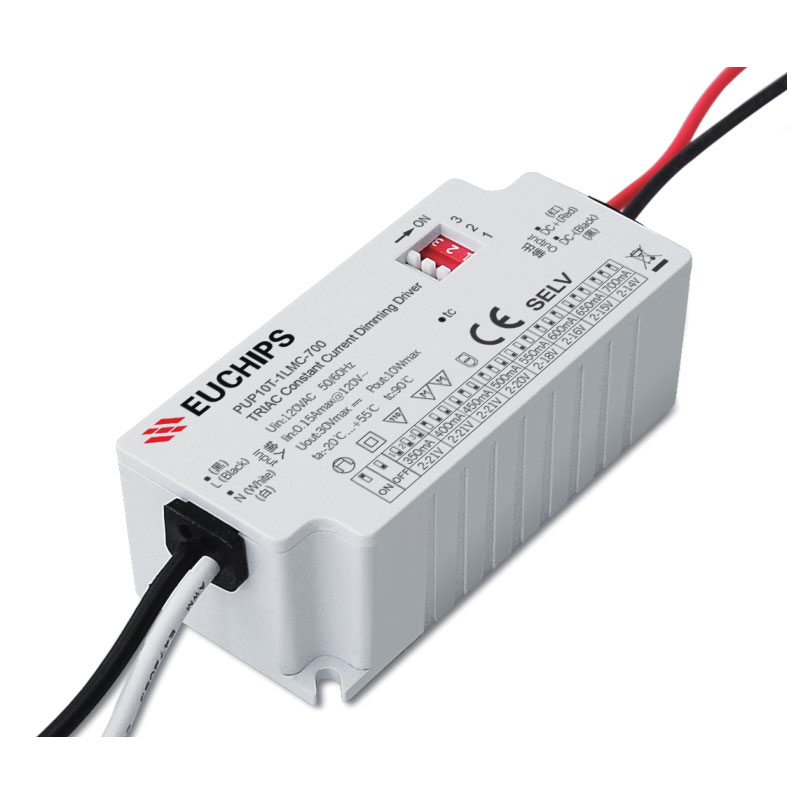

PUP10T-1LMC-700 is a constant current output mode LED driver.The output current can be easily
set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer,
achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Built-in active PFC function
5. Class 2 power supply. Full protective plastic housing
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as
down light, spotlights, panel light, and so on
Technical Parameters
| Model | PUP10T-1LMC-700 | |
| Input | Efficiency | 72%@230VAC, Full load |
| Voltage | 120VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.93@230VAC, Full load | |
| Current | 0.1Amax@230VAC, Full load | |
| Dimming voltage range | 40-240VAC | |
| Inrush Current | Cold start, 30A@230VAC | |
| Output | Current/Voltage/Power | 350mA/2-21VDC/7.35W 400mA/2-21VDC/8.4W 450mA/2-21VDC/9.45W 500mA/2-20VDC/10W 550mA/2-18VDC/9.9W 600mA/2-16VDC/9.9W 650mA/2-15VDC/9.75W 700mA/2-14VDC/9.8W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No Load Output Voltage | 50V Max | |
| Turn On Delay Time | <1s, at 230Vac | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | |
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | |
| Safety & EMC | Surge | L-N:0.5kV; |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347-2-13 | |
| EMC Eission | EN55015 | |
| EMC Immunity | EN61000-3-3 EN61000-4-3 EN61000-4-4 EN61000-4-5 | |
| Function | Dimming type | Triac |
| Dimming range | 3%-100% | |
| Others | Working Temp. | -20℃~55℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Pack Information | N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H) | |
| Dimension | 75*35*26.5mm(L*W*H) | |
