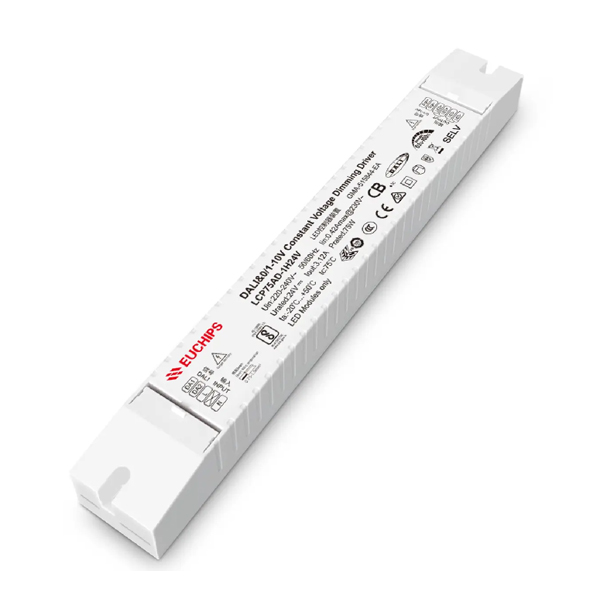

75W 24VDC DALI&0-10V CV Driver LCP75AD-1H24V
75W 24VDC 3.12A*1ch 220-240VAC Constant Voltage DALI&0-10V Driver LCP75AD-1H24V
LCP75AD-1W24V is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386,and provides multiple dimming function (DALI,0/1-10V active signal ,PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.
Features
1. Single channel constant voltage output, 3.12A max.
2. Meet DALI Protocol IEC62386
3. High input voltage of 220VAC ~ 240VAC
4. Dimming effect smooth, no flicker
5. Over load protection; over voltage protection; short circuit protection
6. IP20, Suitable for indoor LED lighting application
Technical Parameters
| Model | LCP75AD-1H24V | |
| Input | Efficiency | 88%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC,Full load | |
| THD(full load) | 10%@230VAC, Full load | |
| AC Current(max) | 0.42Amax@230VAC | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current(max) | Cold start,28A@230VAC | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 3.12A/24VDC/75W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| R & N (Max) | <240mV | |
| Function | Dimming Type | DALI / 0/1-10V / PWM / PUSH |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over voltage | Hiccup, recovers after fault condition is removed |
| Over load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Short Circuit | Hiccup, recovers after fault condition is removed | |
| Safety&EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | N50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
