10W 350~700mA DALI CC Driver PUP10D-1WMC-700

Short Description:

  • Item No.: PUP10D-1WMC-700
  • Input Voltage: 100-240VAC
  • Output Power: 10W

Product Detail

Product Tags

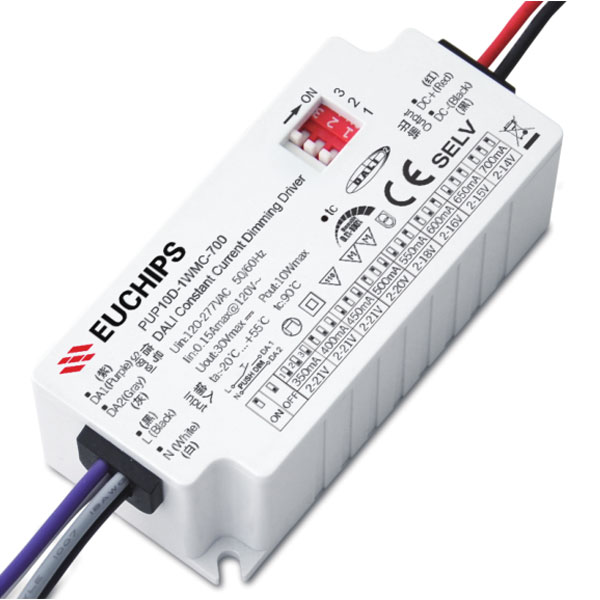

10W 350~700mA DALI Constant Current Driver PUP10D-1WMC-700

PUP10D-1WMC-700 is a constant current output mode LED driver. Support DALI dimming
function, Touch DIM (Push DIM) function. The output and dimming circuit are also
completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.

Features

1. Single channel output, output current level selectable by DIP S.W.

2. Support DALI dimming function, Touch DIM (Push DIM) function

3. Input voltage of 100VAC ~ 240VAC

4. Dimming range: 0.1-100%,Dimming effect smooth, no flicker

5. Protections: Short circuit, Over load,Over voltage

6. Suitable for indoor LED lighting application

Technical Paramters

Model PUP10D-1WMC-700
Input Voltage 100VAC-240VAC
Frequency 50/60Hz
Efficiency 78%@230VAC, Full load
PF 0.94@230VAC, Full load
THD(full load) <15%@230VAC, Full load
Current 0.12Amax@100VAC
Inrush Current Cold start,30A@230VAC
Standby Power <1W
Output Current/Voltage/Power 350mA/2-21V/7.35W
400mA/2-21V/8.4W
450mA/2-21V/9.45W
500mA/2-20V/10W
550mA/2-18V/9.9W
600mA/2-16V/9.6W
650mA/2-15V/9.75W
700mA/2-14V/9.8W
Channel 1
No load output voltage 60V Max
Frequency 1KHz Min PWM
Current Accuracy ±5%
LF current ripple(<120Hz) <3%
Protection Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Close output, recovers automatically after fault removed
Safety&EMC Surge L-N:1KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMC Eission EN50515,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)
Others Dimming type DALI/Touch DIM (Push DIM)
Dimming range 0.1%-100% Dimming to off
Dimension 75*35*26.5mm(L*W*H)
Pack Information N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H)
IP rating IP20
Working temp. -20℃~50℃
tc 90℃
Relative humidity 20~90% RH
Lifetime 50,000h@tc:85℃
Material PC
Switch cycle >25,000 times
