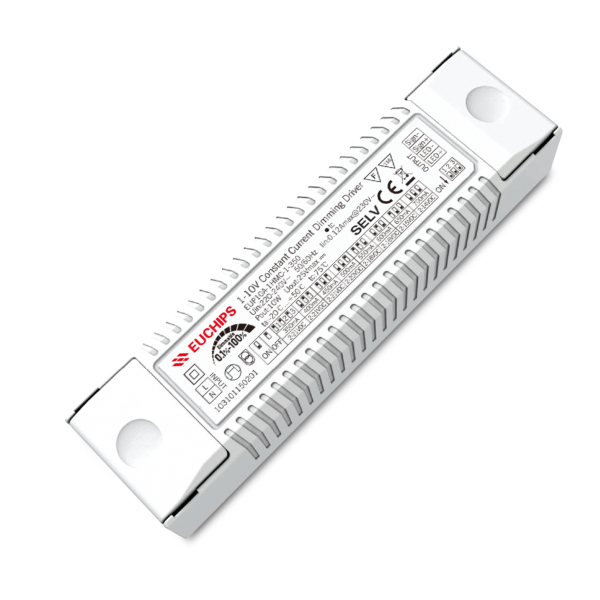

10W 350~700mA*1ch 0/1-10V CC Driver EUP10A-1HMC-1-350
10W 350~700mA*1ch 0/1-10V CC Driver EUP10A-1HMC-1-350
EUP10A-1HMC-1-350 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
· High input voltage of 220VAC ~ 240VAC
· High efficiency up to 75%
· 100% output when no dimming signal input, can be used as normal power supply
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over temperature
· Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP10A-1HMC-1-350 | |
|
|
Efficiency | 75%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.5@230VAC,Full load | |
| AC Current(max) | 0.12Amax@230VAC | |
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 350mA/2-21VDC/7.35W 400mA/2-21VDC/8.4W 450mA/2-21VDC/9.45W 500mA/2-20VDC/10W550mA/2-18VDC/9.9W 600mA/2-16VDC/9.6W 650mA/2-15VDC/9.75W 700mA/2-14VDC/9.8W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±7% | |
| No load output voltage | 25VDC Max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
|
Others |
Working Temp. | -20℃ ~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 75℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:75℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 515*235*140mm(L*W*H) | |
| Dimension | 110*30*22mm（L*W*H） | |
