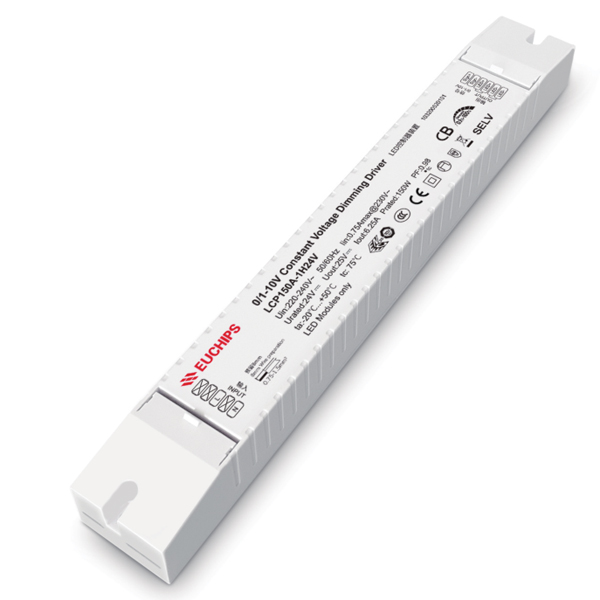

150W 24VDC 0/1-10V CV Driver LCP150A-1H24V
150W 24VDC 0/1-10V CV Driver LCP150A-1H24V
LCP150A-1H24V is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Features
· Signal channel constant voltage, 24VDC output
· Support passive 0/1-10V analog dimming signal
· Dimming range from 0-100%, LED start at 0.1% possible
· Wide range voltage Input 220-240VAC
· High efficiency: up to 92%
· High PF:0.98@230VAC,Full load
· Dimming effect smooth, no flicker
· Output short circuit protection , Over voltage protection, Over load protection
Technical Parameters
| Model | LCP150A-1H24V | |
|
Input |
Efficiency | 92%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.98@230VAC,Full load | |
| THD(full load) | 5%@230VAC, Full load | |
| AC Current(max) | 0.75Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start, 30A@230VAC | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 6.25A/24VDC/150W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 0.75s, at230Vac (When the light begins to shine) | |
| R & N (Max) | <240mV | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short Circuit | after fault removed Close output ,the output current recovers automatically | |
| Safety& EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 75℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
