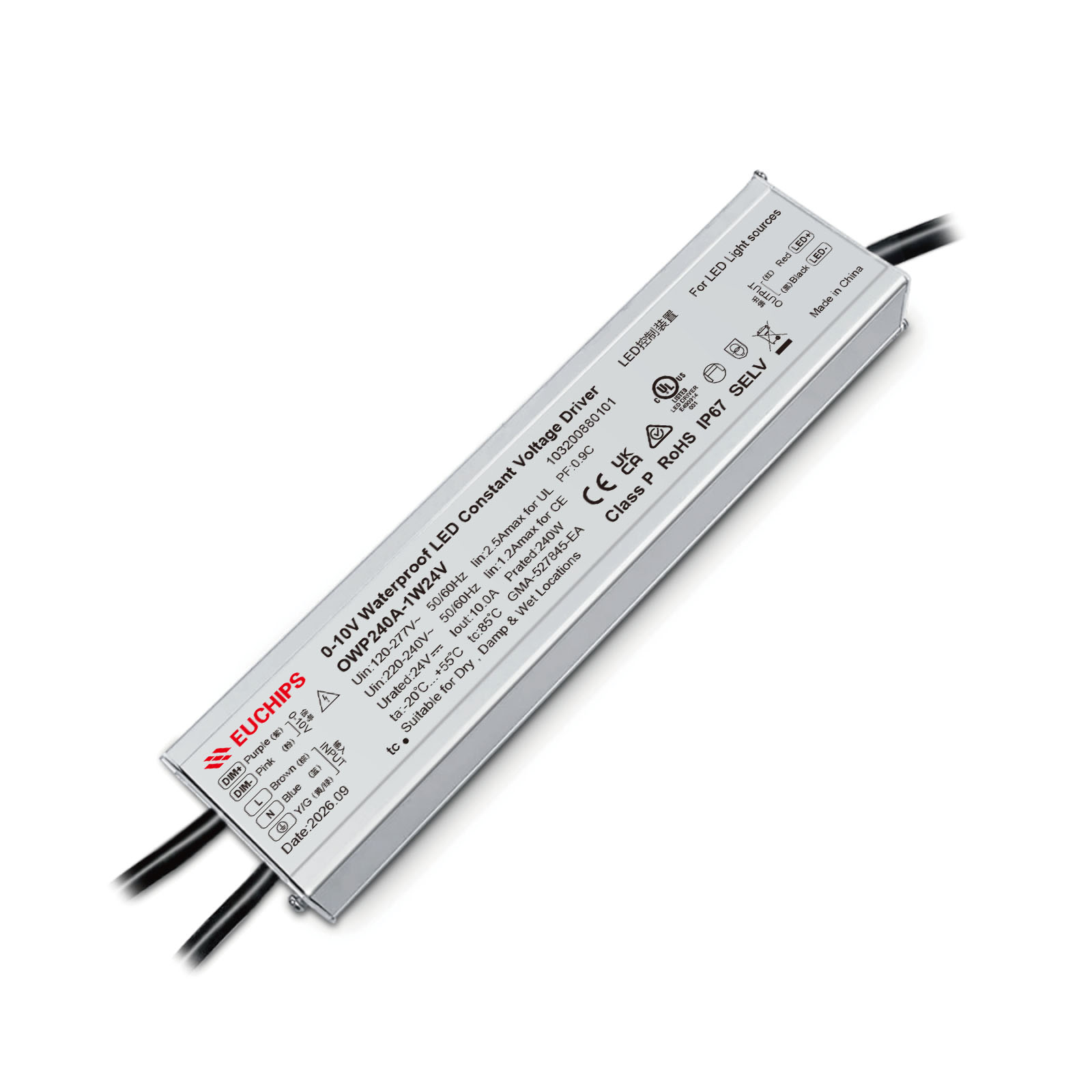

240W 24VDC 0/1-10V Waterproof CV Driver OWP240A-1W24V

Short Description:

Item No.: OWP240A-1W24V
Output Power: 240W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

Features

Single channel constant voltage output, maximum output current 10A
Lightning protection, short circuit, overcurrent, overload, metal shell
Protection class IP67, suitable for outdoor lighting
Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
Life of 50,000 hours@tc85℃ [185°F], 5 years warranty
Customizable dimming curve
Wide voltage input with active PFC, full power output
Suitable for Dry, Damp & Wet Locations

Technical Parameters

Model	OWP240A-1W24V
Input	Input Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	2.5Amax@120VAC, 1.2Amax@230VAC, 0.99Amax@277VAC
	Power Factor	≥0.95@120VAC, Full load ≥0.9@277VAC, Full load
	Efficiency	≥90%@120VAC, Full load ≥93%@277VAC, Full load
	THD	≤10%@120VAC, Full load ≤10%@277VAC, Full load
	Standby power	<1.5W
	No-load power	<1.5W
	Inrush Current	Cold start,15.1A@120VAC 104us 73.2A@277VAC 164us
Output	Output Voltage	24VDC
	Voltage Accuracy	±5%
	Output Current	10A Max.
	Output Power	240W Max.
	PstLM	≤1
	SVM	≤0.4
	Dimming frequency	20KHz
	Line Regulation	±3% @Full load
	Load Regulation	±3% @Full load
	Turn on delay Time	0.75s, @230Vac (When the light begins to shine)
Function	Dimming Type	0-10V
	Dimming Range	0.1%-100% Dimming to OFF
	Dimming Curve	Logarithm
	Flicker free	Flicker free
Protection	Short circuit	Close the output and recover after troubleshooting
	Over Current	Reduce current burp protection, self-recovery after troubleshooting
	Over load	Reduce current burp protection, self-recovery after troubleshooting
	Over Voltage	/
	Over temperature	/
Safety& EMC	Surge	L-N:6KV L-N-PE 10KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA I/P-0-10V( Signal port ):1500Vac/1min/<5mA
	Safety Standards	CCC (China) GB/T 19510.1，GB/T 19510.213 TUV (Germany) EN 61347-1，EN 61347-2-13，EN 62493
		CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN 61347-1，EN 61347-2-13
		RCM (Australia) AS/NZS 61347-1, AS/NZS 61347-2-13 ENEC (Europe)EN 62384
		UL UL8750:2015 Ed.2+R:07Dec2022, UL1310, CSA-C22.2 No. 250.13:2022 Ed.5
	EMC Emission	CCC (China) GB/T 17743，GB/T 17625.1
		CE (European Union) EN 55015，EN 61000-3-2，EN 61000-3-3，EN 61547
		RCM (Australia) AS/NZS CISPR 15, AS/NZS 61000
		FCC Part 15 Class B(120V)/Class A(277V)
	EMC Immunity	EN 61547; EN 61000-4-2, 3, 4, 5, 6, 8, 11
