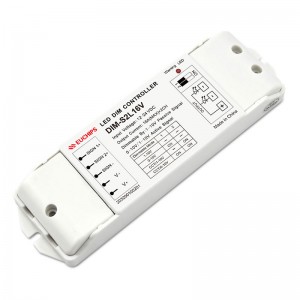

12-24V 16A*2ch Constant Voltage Analog Dimmer DIM-S2L16V
12-24V 16A*2ch Constant Voltage Analog Dimmer DIM-S2L16V
Features
· Support 3-in-1 dimming function(0-10V /1-10V active signal, Adjustable resistance, PWM)
· Support dimming mode selection
· Support the short circuit, over current protection and alarm function
· Logarithmic dimming curve
· Built-in CCT adjust mode, the user can adjust color temperature without changing the output power
· For adjusting the brightness/ color temperature of LED strip
Technical Parameters
| Input Voltage | 12-24V |
| Output Voltage | 12-24V |
| Output Current | 16A*2CH(For brightness mode ) Totally 16A（For CCT mode） |
| Over current protection | The red indicator light is on, Troubleshooting requires power cycling. |
| Short circuit protection | The red indicator light is on, Troubleshooting requires power cycling. |
| Dimming Mode | 0-10V /1-10V / active signal Adjustable resistance PWM |
| Current consumption of 0-10/1-10V signal | 0.25mA |
| Dimension | 167*51*23mm(L*W*H) |
| G.W. | 100g |
