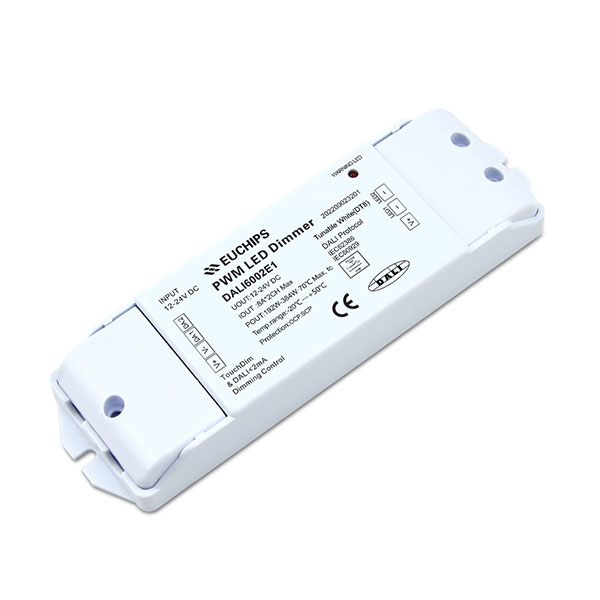

12-24VDC 10A*2ch CV DMX Decoder DALI6002E1
12-24VDC 10A*1ch Constant Voltage DMX Decoder DALI6002E1
Features
1. PWM output current ： MAX 10A/CH
2. DALI Digital control input, Dimming control LED module
3. Addressing output channel
4. Support Touch DIM function, and can be dimmed manually
5. Dimming range is from 0-100% (LED Will start from 1% )
6. Used for DC Power supply
7. Short circuit protection, Over load protection
8. Security level : 2
9. Two channels 12-24VDC constant voltage output
Technical Parameter
| Parameter |
Min.* |
Nom.* |
Max. |
Unit |
| Input voltage range |
12 |
12-24 |
24 |
Vdc |
| Touch DIM AC input voltage range |
5 |
- |
290 |
VAC |
| Touch DIM AC input voltage frequency range |
45 |
- |
65 |
Hz |
| 12-24 V DC Input current |
- |
- |
10 |
A/ ch |
| Output power |
0.1 |
2 x120-240 |
2 x240 |
W |
| Output voltage |
12 |
12-24 |
24 |
Vdc |
| Output current |
- |
- |
10 |
A/ ch |
| Peak current |
- |
- |
11.5 |
A/ ch |
| Dimming control DALI definition |
IEC62386 |
|||
| Out casing temp |
- |
- |
70 |
℃ |
| Surrounding temp |
-20 |
- |
50 |
℃ |
| Protection Short circuit protection | ||||
| Overload protection | ||||
*It’s available in 25℃ indoor
