20A*8ch Relay Switch Controller EUR0820

Short Description:

  • Item No.: EUR0820
  • Input Voltage: 100-240
  • Output Current: 20A*8ch
  • Output Voltage: -
  • Output Power: -
  • Dim Mode: DMX512 /RDM/DALI
  • G.W.: 825
  • Size: 230*104*72

Product Detail

Product Tags

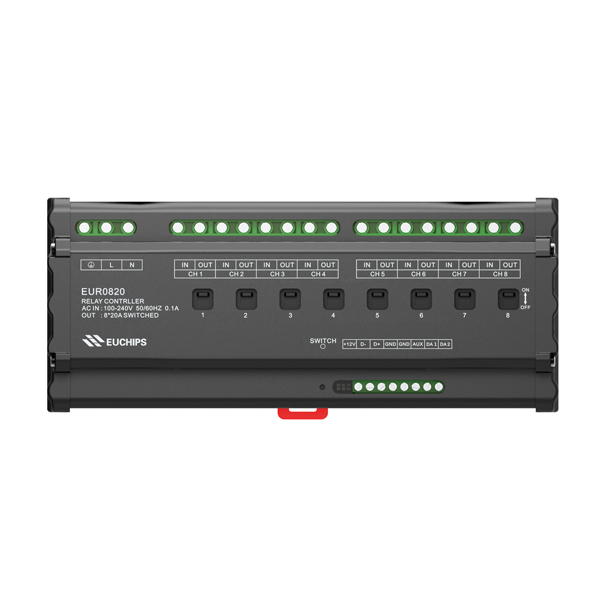

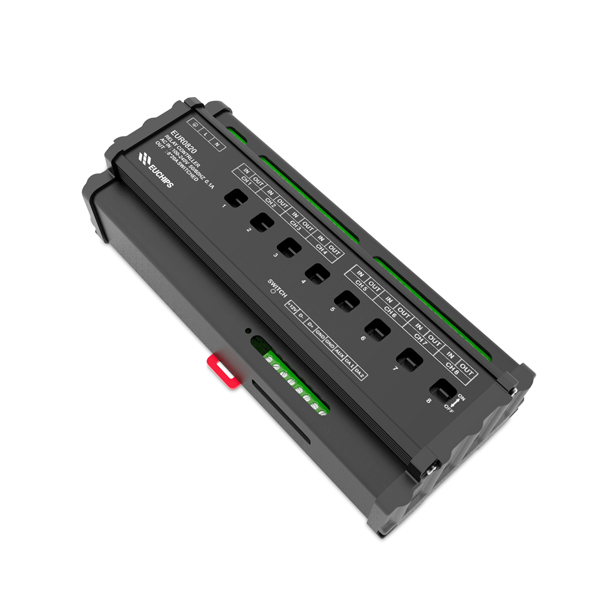

20A*8ch Relay Switch Controller EUR0820

The product adopts advanced microcomputer control technology, analysis widely used DMX-512 (1990) /RDM and DALI standard protocol. and output 8 relay control signal . The max current of each channel is 20A,the total 8 channel is 160A . In addition, the device can be connected into the Dynalite system by the Dynalite gateway (Note: the Dynalite trademark holder is PHILPS, the relevant right is owned by the holder of the trademark, the same below)



1. Meets DMX512(1990)/RDM and DALI IEC62386 protocol

2. Feed-through power circuit design

3. Output relay controlled 8 channel, max current of each channel is 20A

4. Standard 35 mm din rail, convenient installation

5. There is an emergency button for each channel to switch on or off the channel


Technical Parameter


Item Parameters
Input voltage 100-240VAC
Input control signal DMX512(1990)/RDM,>DALI IEC62386
Max. carrying current 20A*8ch
Equipments Size 222.5*93.4*63.2mm(L*W*H),standard 35mm din rail
Pack size 230*104*72mm(L*W*H)
G.W. 825g
Operational temperature -20-40℃
