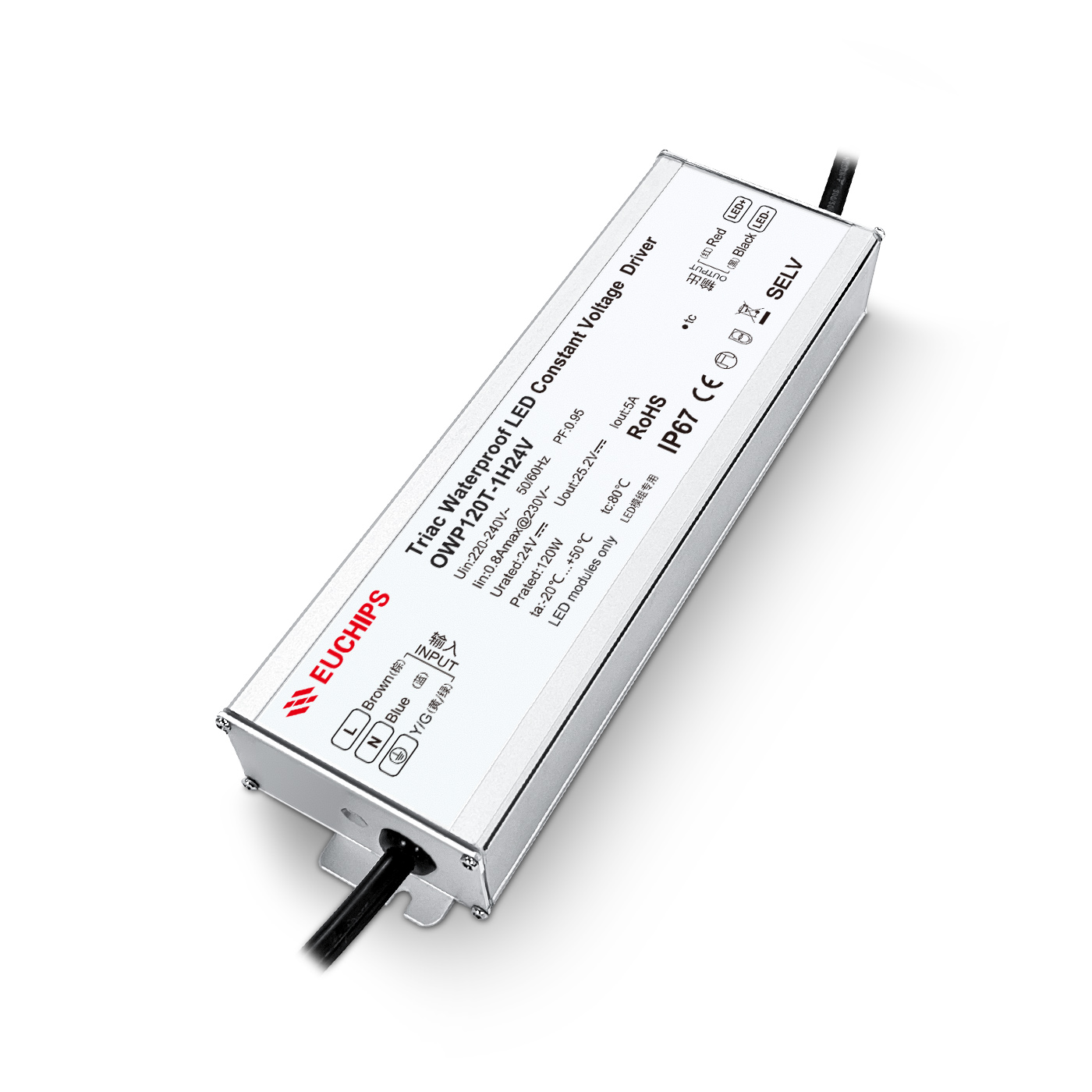

120W 24VDC Phase-cut Waterproof CV Driver OWP120T-1H24V
120W 24VDC Waterproof Phase-cut CV Driver OWP120T-1H24V
OWP120T-1H24V is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB,Bunge, Siemens etc.) to achieve a smooth dimming effect.
Features
·Single-channel constant voltage output, 5A Max.
·Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
·Dimming range from 40VAC to 240V AC
·Dimming effect smooth, no flicker
·High efficiency: up to 87%
·Over current protection; Short circuit protection; Over voltage
Technical Parameters
| Model | OWP120T-1H24V | ||
|
Input |
Efficiency | ≥87%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50~60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <10%@230VAC, Full load | ||
| Current | 0.8Amax@230VAC | ||
| Inrush Current | Cold start,75A@230VAC 150us | ||
| No load power | ≤2.5W@230VAC | ||
| Turn on delay Time | ≤ 1.5 s, at230Vac (When the light begins to shine) | ||
|
Output |
Direct voltage | 24VDC | |
| Rated current | 5A | ||
| Rated Power | 120W | ||
| Voltage Accuracy | ±5% | ||
| Ripple Voitage | ±3% | ||
| Channel | 1 | ||
| Protection | Short Circuit | Close output, recovers automatically after fault removed | |
| Over Current | No output, recovers automatically after fault removed | ||
| Over Load | No output, recovers automatically after fault removed | ||
| Safety&EMC | Surge | L-N 1000VAC L-N-PG 3000VAC | |
| Withstand Voltage | I/P-O/P:2000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | ||
| Safety Standards | EN61347-1 EN61347-2-13 | ||
| Function | Dimming mode | Triac | ELV |
| Dimming curve | Logarithm | ||
| Flicker | No Flicker | ||
|
Others |
Working Temp. | -20℃~+50℃@230VAC Input | |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | ||
| Tc | 80℃ | ||
| Material | Metal | ||
| IP Rating | IP67 | ||
| Lifetime | 50,000h@tc:80℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 750g±5%/PCS; 20PCS/Carton; 15.5kg±5%/Carton; Carton Size: 347*233*214mm(L*W*H) | ||
| Dimension | 210*64*33mm(L*W*H) | ||
