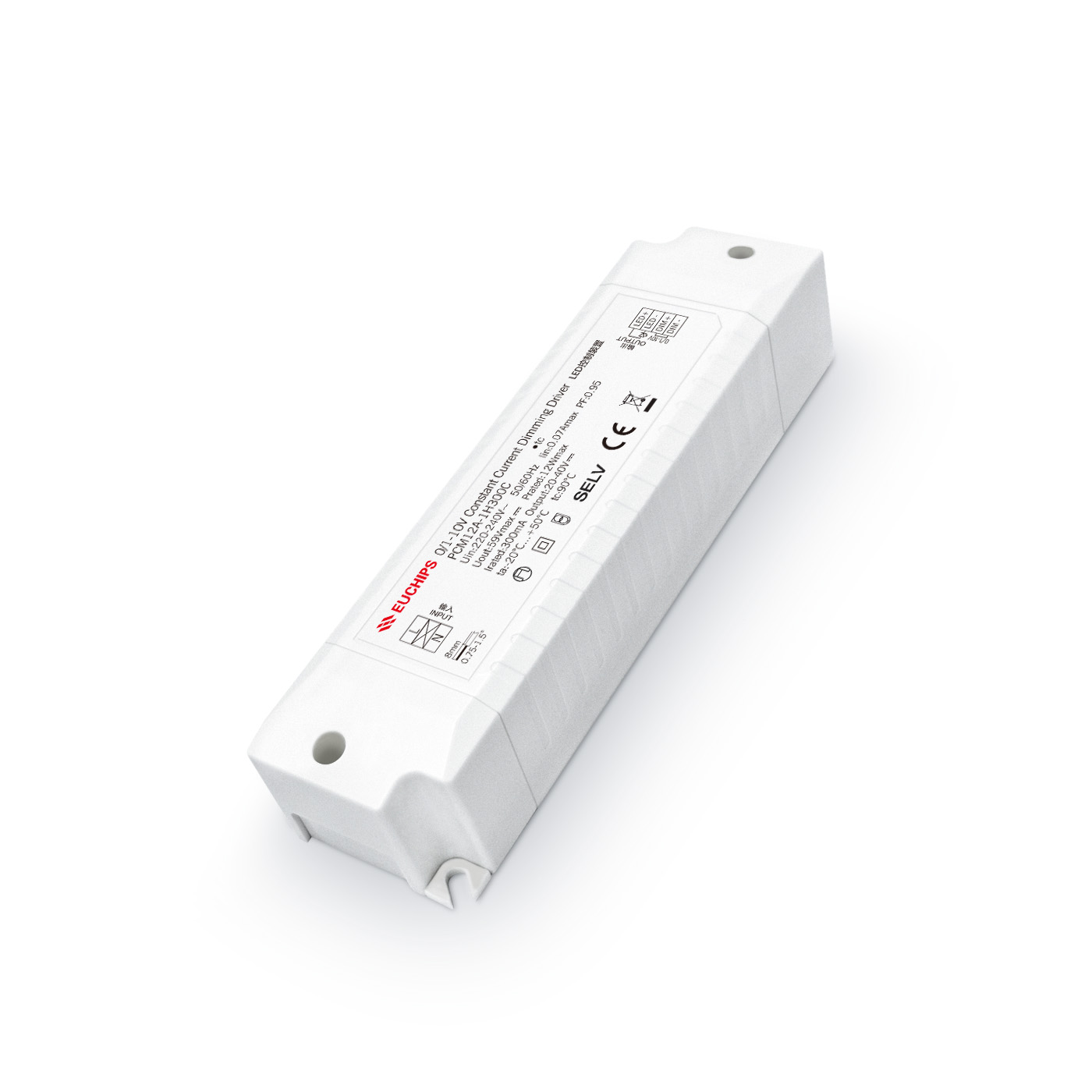

12W 300mA*1ch 0/1-10V CC Driver PCM12A-1H300C
12W 300mA*1ch 0/1-10V CC Driver PCM12A-1H300C
PCM12A-1H300C is a constant current output mode LED driver. and the driver can be adjusted by the external 0/1-10VDC active signal ,adjustable resistance to achieve the smooth dimming effect.
Features
·Support 2-in-1 dimming mode(0/1-10V active signal, adjustable resistance)
·High input voltage of 220VAC ~ 240VAC
·Built-in active PFC function
·100% output when no dimming signal input, can be used as normal power supply
·Dimming effect smooth, no flicker
·Protections: Short circuit, Over Voltage
·Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technial Paramters
| Model | PCM12A-1H300C | |
|
Input |
Efficiency | 84%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <15%@230VAC, Full load | |
| AC Current(max) | 0.07Amax@230VAC | |
| Inrush Current(max) | Cold start,20A(twidth=100us measured at 50% Ipeak)@230VAC | |
|
Output |
Current(mA)/Voltage (VDC)/Power(W) | 300mA/20-40VDC/12W |
| Current Tolerance | ±5% | |
| Channel | 1 | |
| Standby Power | <0.5W | |
| No load output voltage | 59VDC Max | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
|
Function |
Dimming Type | 0/1-10V |
| Dimming Range | NC | |
| Dimming curve | Linearity | |
| Flicker | Flicker Free | |
| Protection | Short Circuit | Hiccup , recovers after fault condition is removed |
| Over Voltage | When the output voltage is exceeded, the output current decreases and automatically recovers
when the load is reduced |
|
|
Safety& EMC |
Surge | NC |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
|
Others |
Working Temp. | -20℃ ~50℃ |
| Storage Temp., Humidity | -40℃~85℃,20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 79g±5%/PCS; 80 PCS/Carton; 6.8 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Dimension | 135*36*25mm（L*W*H） | |
