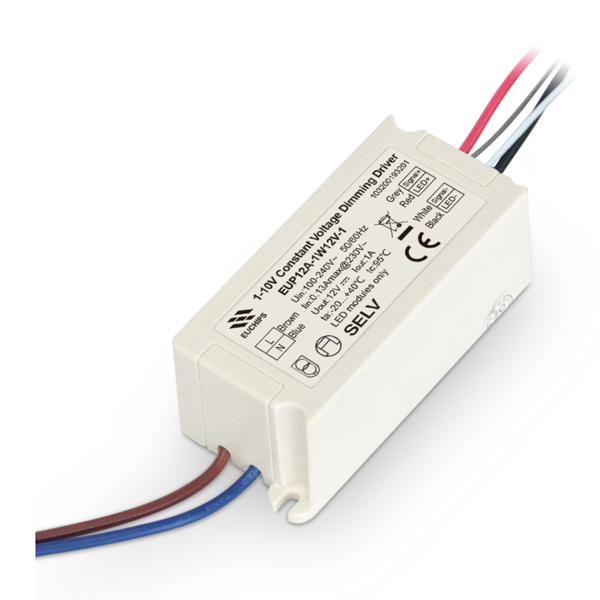

12W 12VDC 0/1-10V CC Driver EUP12A-1W12V-1
12W 12VDC 0/1-10V CC Driver EUP12A-1W12V-1
EUP12A-1W12V-1 is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,1A Max
· Support 3-in-1 dimming mode( 1-10V active signal, adjustable resistance and PWM signal)
· Wide input voltage of 100VAC ~ 240VAC
· Dimming range of 0-100%, and dimming effect smooth, no flicker
· 100% output when no dimming signal input, can be used as normal power supply
· Over load protection; Over voltage protection
· IP20, suitable for indoor LED lighting application
Technical Paramaters
| Model | EUP12A-1W12V-1 | |
|
Input |
Efficiency | 80%@230VAC,Full load |
| Voltage | 100VAC – 240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.5@230VAC,Full load | |
| AC Current(max) | 0.13Amax@230VAC | |
| Inrush Current(max) | Cold start,12A@230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 1A/12VDC/12W |
| R & N (Max) | 120mVp-p | |
| Channel | 1 | |
| Voltage Accuracy | ±3% | |
| Function | Dimming Type | 1-10V active signal, adjustable resistance and PWM signal |
| Protection | Over voltage | Hiccup, recovers after fault condition is removed |
| Over load | Shut down the output, recovers after fault condition is removed | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 85g±5%/PCS; 100PCS/Carton;9.2kg±5%/Carton; Carton Size: 338*254*219mm(L*W*H) | |
| Dimension | 81*36*29mm（L*W*H） | |
