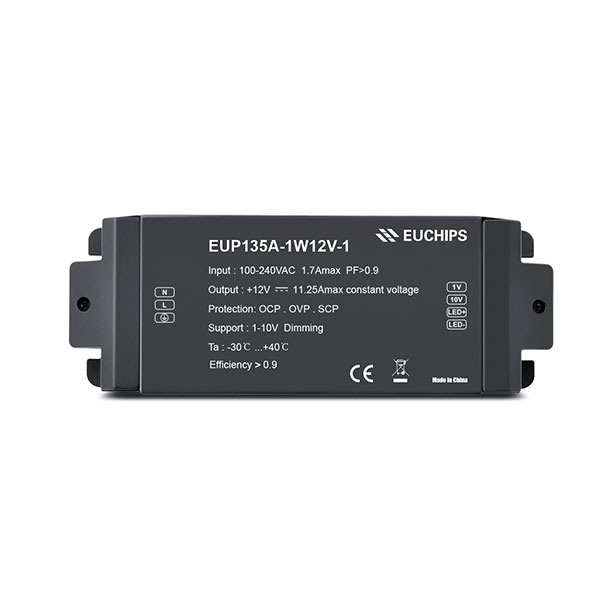

135W 12VDC 0/1-10V CV Driver EUP135A-1W12V-1

Short Description:

  • Item No.: EUP135A-1W12V-1
  • Input Voltage: 100-240
  • Output Current: 11.25A*1CH
  • Output Voltage: 12
  • Output Power: 135
  • Dim Mode: 1-10V
  • G.W.: 710
  • Size: 206*75*40

Product Detail

Product Tags

135W 12VDC 1-10V Constant Voltage Dimmable Driver EUP135A-1W12V-1

1. Signal channel constant voltage, 12VDC
2. Support 1-10V analog dimming signal, passive or active signal
3. Wide input voltage of 100-240VAC
4. High efficiency up to 90%
5. 100% output when no dimming signal input, can be used as normal power supply
6. Dimming effect smooth, no flicker
7. Over current protection, over voltage protection, short circuit protection
8. Suitable for indoor LED lighting application

Technical Parameter

Model EUP135A-1W12V-1
Output Voltage 12V
Current 11.25A
Power 135W
Voltage Accuracy ±5%
R & N(max) 200mVp-p
Channels 1
Input Voltage 100VAC – 240VAC
Frequency 50/60Hz
Current 1.7Amax@100VAC
Power factor(Typ) ≥0.9
Efficiency (Typ) 90%
Inrush current 30A@230VAC
Protection Over Current Hiccup mode, recovers after fault condition is removed
Short Circuit Hiccup mode, recovers after fault condition is removed
Over Voltage Close output, recovers automatically after fault removed
Function Dimming 1-10V dimming(Passive or active)
Others Dimension 206*75*40 mm(L*W*H)
G.W 710g
Working temp. -30℃ ~ 40℃
Relative humidity 20~90% RH
