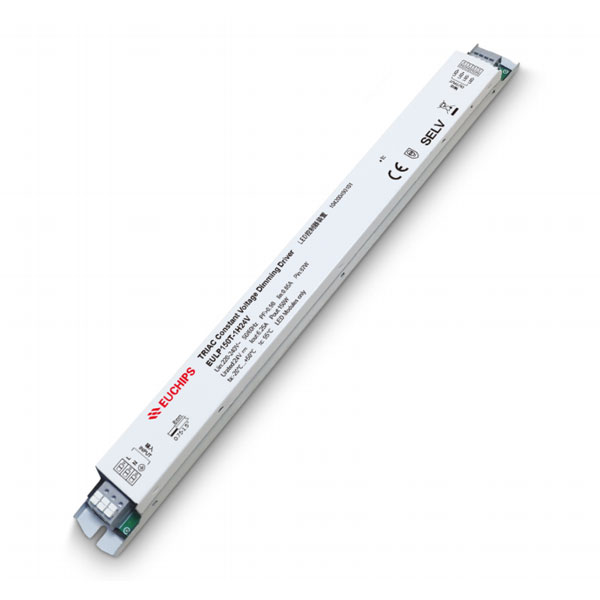

150W 24VDC Phase-cut CV Driver EULP150T-1H24V-0
150W 24VDC 6.25A*1ch Constant Voltage Driver EULP150T-1H24V-0
EULP150T-1H24V is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Lutron, Simon, ABB,Bunge, Siemens etc.) to achieve a smooth dimming effect.
Feature
1. Single-channel constant voltage output,6.25A Max.
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
3. Dimming range from 40VAC to 240V AC.
4. Dimming effect smooth, no flicker
5. High efficiency: up to 89%.
6. Protection: Over load ; Short circuit ; Over voltage
7. Suitable for indoor LED lighting application
Technical Parameters
| Model | EULP150T-1H24V-0 | |
| Input | Efficiency | 89%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Current | 0.8Amax@230VAC | |
| Inrush Current | Cold start,35A@230VAC 480us | |
| Output | Current(A)/Voltage (VDC) Power(W) | 6.25/24V/150W |
| Channel | 1 | |
| Voltage Tolerance | ±3% | |
| No load output voltage | 24VDC±5% | |
| Standby power | <3W | |
| Turn on delay Time | <3s, at230Vac (When the light begins to shine) | |
| Function | Dimming Mode | Triac/ELV |
| Dimming Range | 1%-100% Dimming to off | |
| Protections | Over load | Hiccup, recovers after fault condition is removed |
| Short Circuit | Close output ,after fault removed，the output current recovers automatically | |
| Over Voltage | Hiccup, recovers after fault condition is removed | |
| Safety & EMC | Surge | L-N:2KV L&N-GND:4KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 95℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:95℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Pack Information | Net weight: 350g±5%/PCS; 50PCS/Carton; 18.2kg±5%/Carton; Carton Size:370*326*127mm(L*W*H) | |
| Dimension | 360*30*21mm（L*W*H） | |
