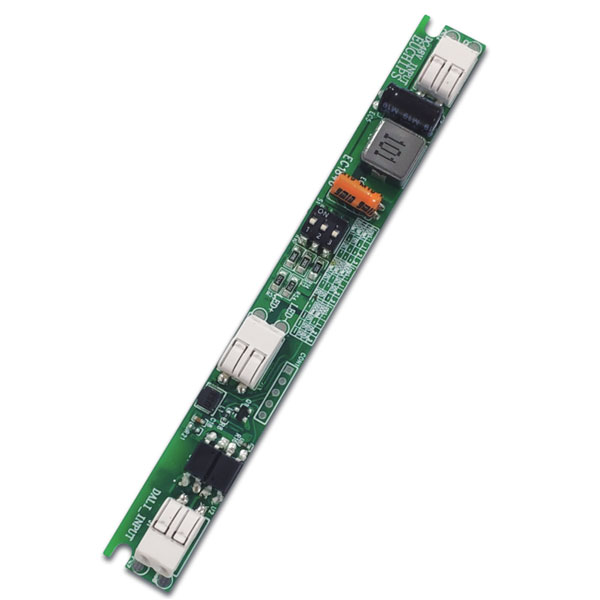

14W 120~350mA*1ch DALI DC-DC CC Driver BMP14D-1SMC
14W 48VDC 120/150/180/210/240/270/300/350mA DALI DC-DC Driver BMP14D-1SMC
Features
1. Output current 120-350mA, can be set via DIP switch
2. Compliant with DALI 2.0 standard protocol
3. Mixed dimming PWM+CCR, no flicker
4. Short circuit protection, overload protection,no load protection,Input reverse connection
5. Built-in driver
6. Hot plug for input port and non polarized
Technical Parameters
| Model | BMP14D-1SMC | |
| Input | Efficiency | 93% |
| Voltage | 42-52VDC | |
| Current | 0.63Amax@48VDC, full load | |
| Standby Power | <0.3W | |
| Output | Current / Voltage / Power | 120mA/3-40VDC/4.8W 150mA/3-40VDC/6W 180mA/3-40VDC/7.2W 210mA/3-40VDC/8.4W 240mA/3-40VDC/9.6W 270mA/3-40VDC/10.8W 300mA/3-40VDC/12W 350mA/3-40VDC/14W |
| Accuracy | ±5%(20-40VDC)/±8%(9-40VDC) | |
| Channel | 1 | |
| Out put lf current ripple(＜120Hz) | Same as LF ripple on 48V bus | |
| Fuction | Dimming mode | DALI Dimming |
| Dimming depth | 1% | |
| Protection | No-load operation | The led driver will not be damaged in no-load operation |
| Short circuit | Shut down the output self-recovery after removing the fault | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Input reverse connection | Operation normally | |
| Hot plug | Input Support | |
| Others | Pcb Dimension | 125*14*10mm（L*W*H) |
| Packing(weight) | Net weight: 15g±5%/PCS; 200PCS/Carton; 3.7kg±5%/Carton; Carton Size: 276*180*136mm(L*W*H) | |
| Operating Temperature | -20℃ ~ 60℃ | |
| Tc | 90℃ | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 20~90% RH | |
