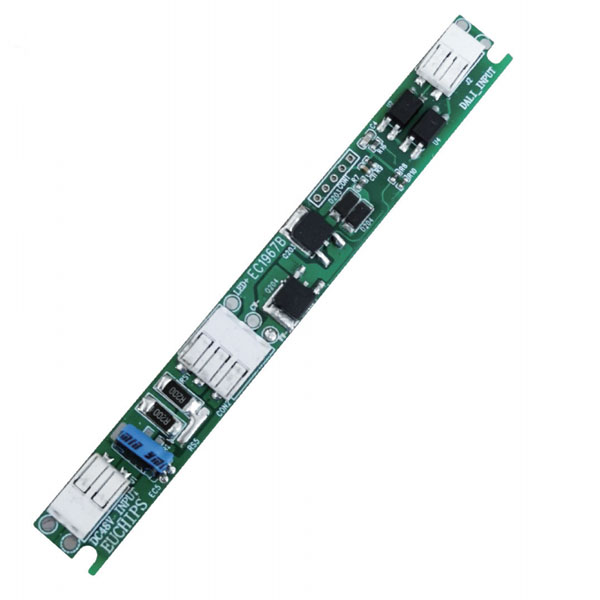

48W 48VDC*2ch DALI DC-DC CV Driver DT8 BMP48D-2S48V
48W 48VDC*2ch DALI DC-DC CV Driver DT8 BMP48D-2S48V
BMP48D-2S48V is a constant voltage mode output LED driver and complies with
DALI standard protocol IEC 62386. This driver can be connected to DALI main controller
or DALI dimmer to achieve a smooth dimming effect.
Features
1. Double channel constant voltage output,1A Max
2. Compliant with DALI standard protocol
3. Mixed dimming PWM+CCR, no flicker
4. Short circuit protection, overload protection,no load protection,Input reverse connection/span>
5. Built-in driver
6. Hot plug for input port and non polarized
Technical Parameters
| Model | BMP48D-2S48V | |
|
Input |
Efficiency | 90%@48VDC, full load |
| Voltage | 24VDC-51VDC | |
| Current | 1.1Amax@48VDC | |
| Standby Power | – | |
|
Output |
Current | 1A |
| Voltage | 24-48V(Vin-2.5V) | |
| Power | 24W max@24V 48Wmax@48V | |
| Accuracy | ±8%[9-40VDC] | |
| Out put lf current ripple(＜120Hz) | Same as LF ripple on 48V bus | |
| Channel | 2 | |
|
Function |
Dimming mode | DALI |
| Dimming depth | 0.5%-100% | |
| Color temperature | 3000k-6000k | |
|
Protection |
No-load operation | The led driver will not be damaged in no-load operation |
| Short circuit | Shut down the output self-recovery after removing the fault | |
| Over load | Shut down the output self-recovery after removing the fault | |
| Input reverse connection | Operation normally | |
| Hot plug | Input Support | |
|
Others |
Storage Temperature | -40~85℃ |
| Relative Humidity | 20~90% RH | |
| Operating Temperature | -20℃ ~ 60℃ | |
| tc | 70℃ | |
| IP rating | IP20 | |
| Lifetime | 50,000h@ta:50℃ | |
| Switch cycle | >25000 | |
| Pcb Dimension | 125*14*5mm（L*W*H） | |
| Packing(weight) | Net weight: 9.6g±5%/PCS; 200PCS/Carton; 2.4kg±5%/Carton; Carton Size: 276*180*136mm(L*W*H) | |
