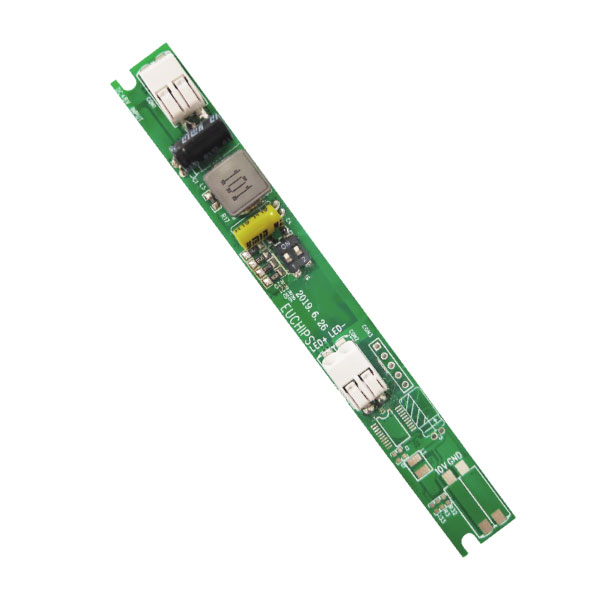

28W 48VDC 350~700mA DC-DC Driver BMP28-1SMC
28W 48VDC 350/500/550/700mA DC-DC Driver
Features
1. Supporting Hot Plug-in of Front 48V Driver
2. Input Reverse Connection Protection
3. DIP Selection Current
4. Supporting short circuit and overload protection
Technical Parameters
| Model | BMP28-1SMC | |
| Input | Efficiency | 93%@48VDC, full load |
| Voltage | 48VDC | |
| Current | 0.63Amax@48VDC, full load | |
| Output | Current / Voltage / Power | 350mA/9-40VDC/14W 500mA/9-40VDC/20W 550mA/9-40VDC/22W 700mA/9-40VDC/28W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5%(20-40VDC)/±8%(9-40VDC) | |
| No-load Output Voltage | / | |
| Turn On Delay Time | <0.6s, at 48VDC | |
| Protection | Short Circuit | Shut down the output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 80℃ | |
| Material | PC | |
| Ip Rating | IP20 | |
| Lifetime | 50,000h@ta:50℃ | |
| Warranty Condition | 5 Year | |
| Switch Cycle | >100,000 times | |
| Packing(Weight) | Net weight: 15g±5%/PCS; 200PCS/Carton; 3.7kg±5%/Carton; Carton Size: 276*180*136mm(L*W*H) | |
| Dimension | 125*14*10mm(L*W*H) | |
