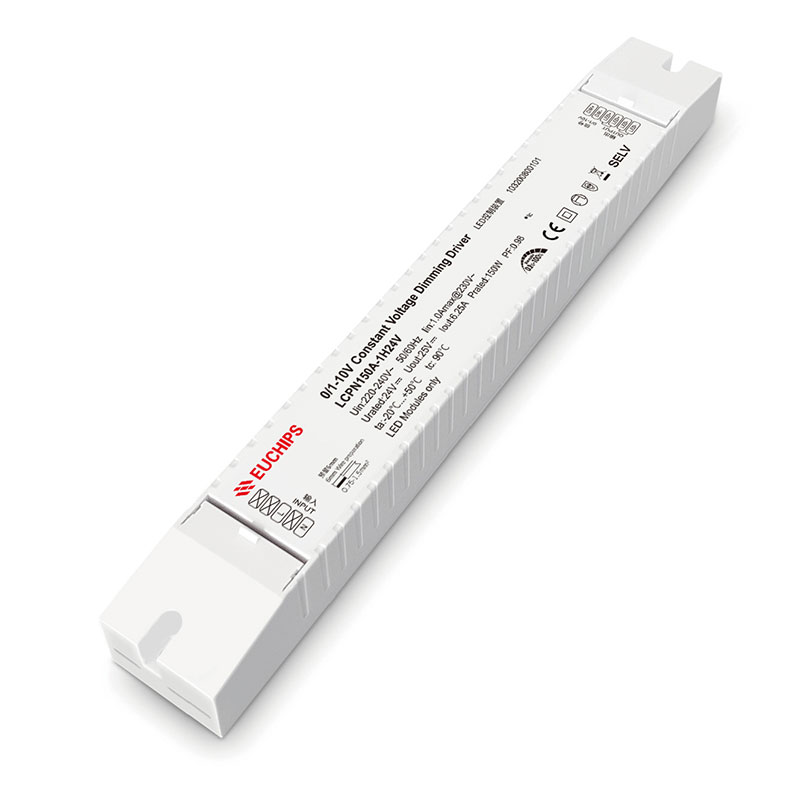

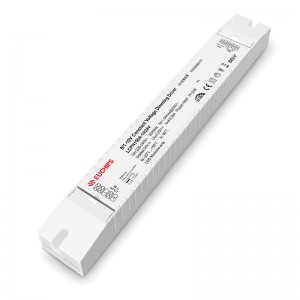

150W 24VDC 0/1-10V CV Driver LCPN150A-1H24V
150W 24VDC 0/1-10V CV Driver LCPN150A-1H24V
Features
· Single channel constant voltage output, 24V output per channel
· Support passive 0/1-10V analog dimming signal
· Dimming range from 0-100%, LED start at 0.1% possible
· High efficiency: up to 92%
· High PF:0.98@230VAC,Full load
· Dimming effect smooth, no flicker
· Output short circuit protection , Over load protection
Technical Parameters
| Model | LCPN150A-1H24V | |
| Input | Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 1Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Efficiency | ≥92%@230VAC, Full load | |
| THD | ≤10%@230VAC, Full load | |
| Standby power | ≤0.5W | |
| Inrush Current | Cold start, 43A@230VAC 304us | |
| Output | Channel | 1 |
| Output Voltage | 24VDC | |
| Output Current | 6.25A Max. | |
| Output voltage range | 24V | |
| Output Power | 150W | |
| Voltage accuracy | ±5% | |
| No-load voltage | 24V ±5% | |
| Turn on Time | 0.75s, at230Vac(When the light begins to shine) | |
| Function | Dimming Type | 0/1-10V (port source current 0.2mA typical) |
| Dimming Range | 0.1%-100% Dim until closed | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
| Protection | Short circuit | No output, Auto-recovery after Fault Clearance |
| Overload | No output, Auto-recovery after Fault Clearance | |
| Safety& EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA I/P-(0/1-10V): 1500VAC/1min/5mA | |
| Safety standard | CCC (China) GB19510.1, GB19510.14 TUV (Germany) EN61347-1, EN61347-2-13, EN62493 | |
| CB (CB member states) IEC61347-1, IEC61347-2-13 CE (European Union) EN61347-1, EN61347-2-13, EN62384 | ||
| RCM (Australia) AS 61347-1, AS 61347-2-13 ENEC (Europe) EN61347-1, EN61347-2-13, EN62384 | ||
| EMC | CCC (China) GB/T17743, GB17625.1 | |
| CE (European Union) EN55015, EN61000-3-2, EN61000-3-3, EN61547 | ||
| RCM (Australia) EN55015, EN61000-3-2, EN61000-3-3, EN61547 | ||
| EMI | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation resistance | 5MΩ | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others
|
RoHS | Comply with 2011/65/EU |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Dimension | 295*35*32mm(L*W*H) | |
| Packing(weight) | Net weight: 350g±5%/PCS; 20PCS/Carton; 7.5kg±5%/Carton; Carton Size: 319*235*170mm(L*W*H) | |
| Noise | In a quiet environment, no noise beyond 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
