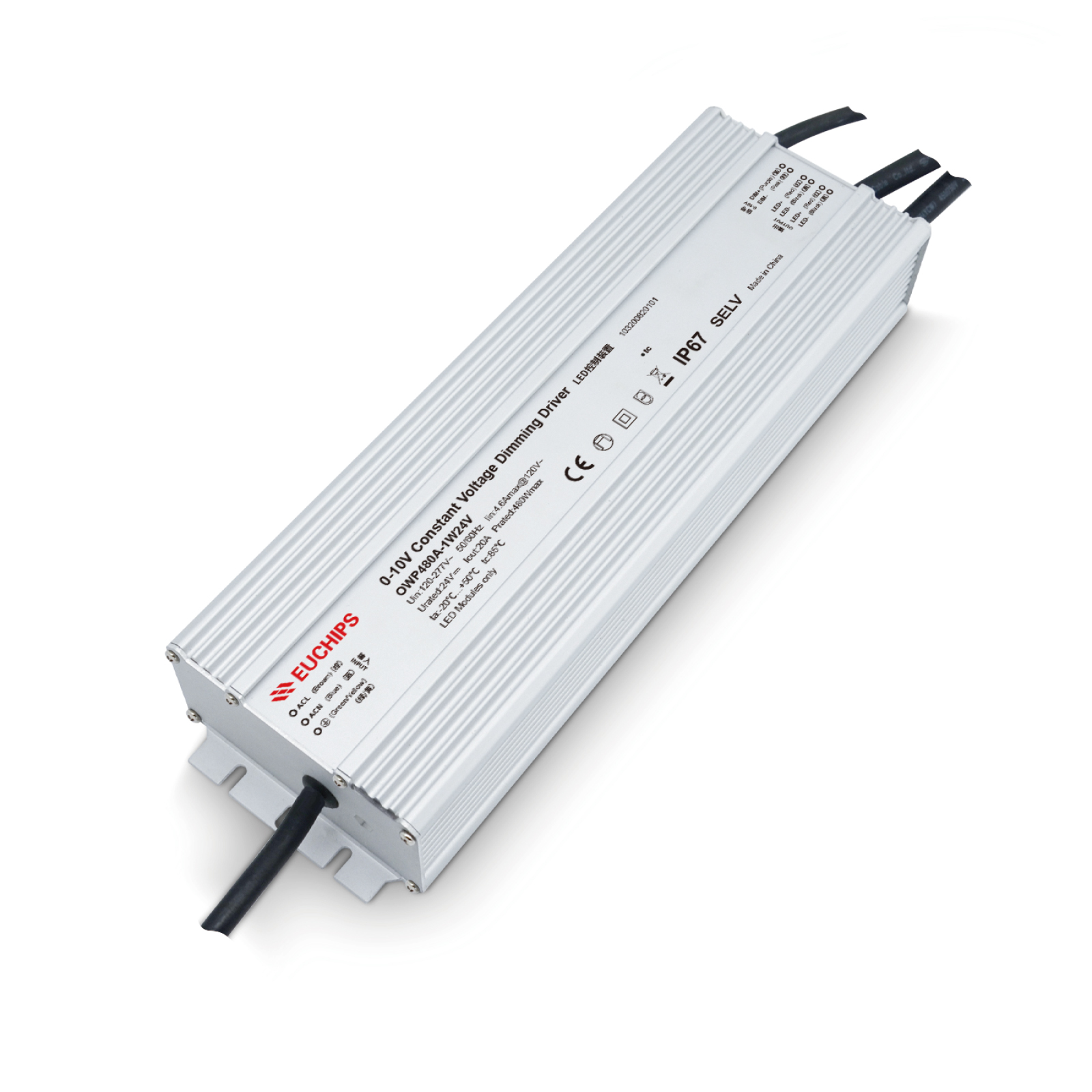

480W 24VDC 0/1-10V Waterproof CV Driver OWP480A-1W24V

Short Description:

Item No.: OWP480A-1W24V
Output Power: 480W

Download Certificates Download Test Reports

Product Detail

Product Tags

480W 24VDC 0/1-10V Waterproof CC Driver OWP480A-1W24V

OWP480A-1W24V is a waterproof constant voltage output LED dimming driver. Supports 0/1-10V active signals, achieving smooth dimming effect.

Features

· Single channel constant voltage output, output current is 20A max
· Dimming range 1% -100% dimming, smooth dimming without any step or flicker
· Built in PFC chip to improve energy efficiency and reduce pollution to the power grid
· Waterproof rating IP67, suitable for outdoor lighting
· Protection: Overload, overcurrent, short circuit protection
· Lifespan of 50000 hours, 5-year warranty

Technical Parameters

Model	OWP480A-1W24V
Input	Efficiency	≥91%@120VAC, ≥94%@230&277VAC, full load
	Frequency	50/60Hz
	Voltage	120VAC-277VAC
	Power Factor	≥0.95@120VAC, ≥0.90@277VAC, full load
	THD(full load)	<10%@120VAC, <15%@277VAC, full load
	Current	4.6A@120VAC, 2.4A@230VAC, 2.0A@277VAC
	Inrush Current	Cold start, 27.1A@120VAC 850us, 60.3A@277VAC 152us
	Standby Power	<2.0W@120VAC
	No load power	<2.0W@120VAC
	Turn on delay Time	<0.75s (@120VAC, When the light begins to shine)
Output	Current	20.0A
	Voltage	24VDC
	Voltage Accuracy	±5%
	Power	480W
	Channel	1
	Over power limit	≥125%
	Ripple	≤720mV
	Frequency	3.3KHz PWM
Protection	Short Circuit	No output. It will recover automatically after troubleshooting
	Over Current	No output. It will recover automatically after troubleshooting
	Over Load	No output. It will recover automatically after troubleshooting
Safety & EMC	Surge	L-N: 6KV L-N-PG: 10KV
	Withstand Voltage	I/P-O/P: 3750Vac/1min/5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA Signal-O/P: 1500VAC/1min/5mA
	Safety standards	EN61347-1, EN61347-2-13, UL8750, UL1310
	EMI Emission	EN55015, FCC Part 15 Class B
	Insulation Resisance	5MΩ
Function	Dimming Type	0-10V
	Dimming Range	1%-100%
	Dimming curve	Logarithm
	Flicker	Flicker free
Others	IP Rating	IP67
	Working Temp.	-20~+50°C [-4°F~122°F]
	Storage Temp., Humidity	-40~+85°C [-40°F~185°F], 20~90% RH
	tc	85℃
	Lifetime	50,000h@tc:85℃[185°F] 90%Load @120VAC
	Warranty Condition	5years
	Switch Cycle	>25,000 times
	Material	Metal
	Dimension	28989.546.5mm(11.373.521.831) (LWH)
	Packing(weight)	Net weight: 1800g(3.97lb)±5%/PCS; 5 PCS/Carton; 9.5kg(20.9lb)±5%/Carton; Carton Size:332284134mm(13.111.25.3) (LWH)
