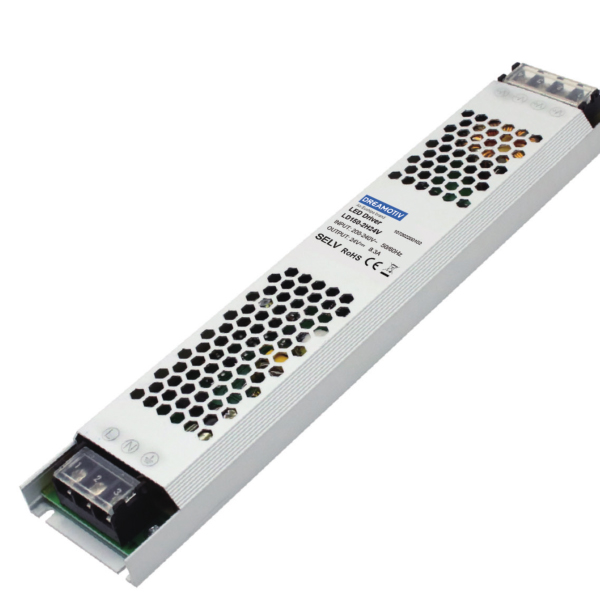

150W 24VDC 2ch Non-dimmable CV Driver LD150-2H24V-A

Short Description:

  • Item No.: LD150-2H24V-A
  • Output Power: 150W

Product Detail

Product Tags

150W 24VDC 2ch Non-dimmable CV Driver LD150-2H24V-A

Features

·Aluminium Casing
·Ultra-low start up temp -30°C
·Ultra-light and easy to install
·High efficiency up to 86%
·High reliability
·Wide input Voltage 180~264Vac

Technical Parameters

Model LD150-2H24V-A


Input

Efficiency 86%@220VAC, Full load
Voltage 200-240VAC
Frequency 50Hz
Current Max 2.0A @ 230Vac
Inrush Current Less than 65A/230Vac, cold start
Leakage Current <0.75mA/240Vac








Output

Current 6.25A
Voltage 24VDC
Power 150W
Ripple & noise 200mVp-p
Output Voltage range 22.8~25.2V
Channel 2
Line Regulation 1%
Load Regulation 2%
Voltage Tolerance ±3%
Turn On Delay Time 1.5S, 20mS@230Vac
Protection Short Circuit Hiccup mode, Auto-recovery
Over Load 110%~170% of rated load.
Safety Withstand Voltage Input-FG: 1500Vac or 2121Vdc, Input-Output: 1500Vac or 2121Vdc, Output-FG: 500Vac or 707Vdc
Isolation Resistance Input-FG: >100MΩ 500Vdc @25°C &70RH; I/P-O/P: >100MΩ 500Vdc @25°C &70RH; O/P-FG: >100MΩ 500Vdc @25°C &70RH






Others

Working Temp. -30~+60°C, 20~90%
Storage Temp.; Humidity -30°C~+70°C, 10%~95%RH
Tc 70°C
Material Metal
IP Rating IP20
Lifetime 40,000h@tc:65°C
Warranty Condition 2 Years
Switch Cycle >15,000 times
Packing Size Net weight: 320g±5%/PCS; 50PCS/Carton; 17.74kg±5%/Carton; Carton Size: 280*234*300mm(L*W*H)
Dimension 219*53*22mm(L*W*H)
