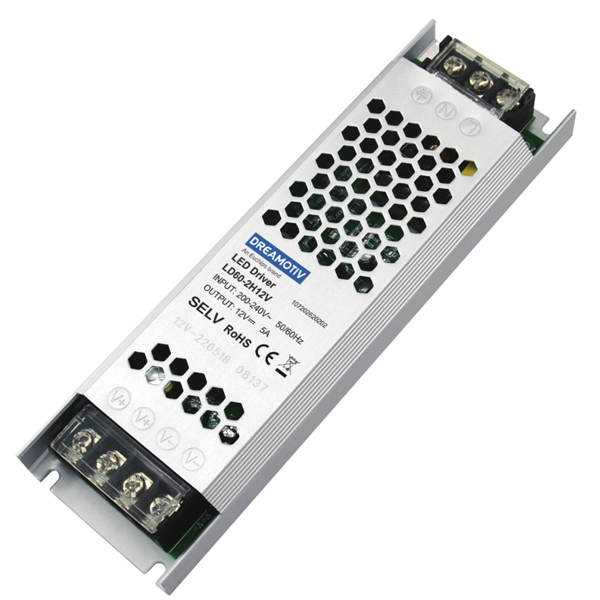

60W 12VDC 2ch Non-dimmable CV Driver LD60-2H12V

Short Description:

Item No.: LD60-2H12V
Output Power: 60W

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Product Tags

60W 12VDC 2ch Non-dimmable CV Driver LD60-2H12V

Features

·Aluminium Casing
·Ultra-low start up temp -30°C
·Ultra-light and easy to install
·High efficiency up to 84%
·High reliability
·Wide input Voltage 180~264Vac

Technical Parameters

Model	LD60-2H12V
Input	Efficiency	84%@220VAC, Full load
	Typical Input Voltage	200-240VAC
	Maximum Input Voltage Range	180～264Vac
	Frequency	50Hz
	Current	Max 0.6A @ 230Vac
	Inrush Current	Less than 50A/230Vac, cold start
	Leakage Current	<0.75mA/240Vac
Output	Current	0~5A
	Voltage	12VDC
	Power	60W
	Ripple & noise	150mVp-p
	Output Voltage range	11.4～12.6V
	Channel	2
	Line Regulation	1%
	Load Regulation	2%
	Voltage Tolerance	±3%
	Turn On Delay Time	1.5S, 20mS@230Vac
Protection	Short Circuit	Protection Type : Hiccup mode, Auto-recovery
Protection	Over Load	110%～150% of rated load.
Safety	Withstand Voltage	Input-FG: 1500Vac or 2121Vdc, Input-Output: 1500Vac or 2121Vdc, Output-FG: 500Vac or 707Vdc
Safety	Isolation Resistance	Input-FG: >100MΩ 500Vdc @25°C &70RH; I/P-O/P: >100MΩ 500Vdc @25°C &70RH; O/P-FG: >100MΩ 500Vdc @25°C &70RH
Others	Working Temp.	-30~+60°C, 20~90%
	Storage Temp.; Humidity	-30°C~+70°C, 20%~95%RH
	Material	Metal
	IP Rating	IP20
	Lifetime	30,000h@tc:65°C
	Warranty Condition	3 Years
	Switch Cycle	>15,000 times
	Packing Size	Net weight: 180g±5%/PCS; 100PCS/Carton; 20.55kg±5%/Carton; Carton Size: 390290315mm(LWH)
	Dimension	1765322mm(LWH)
