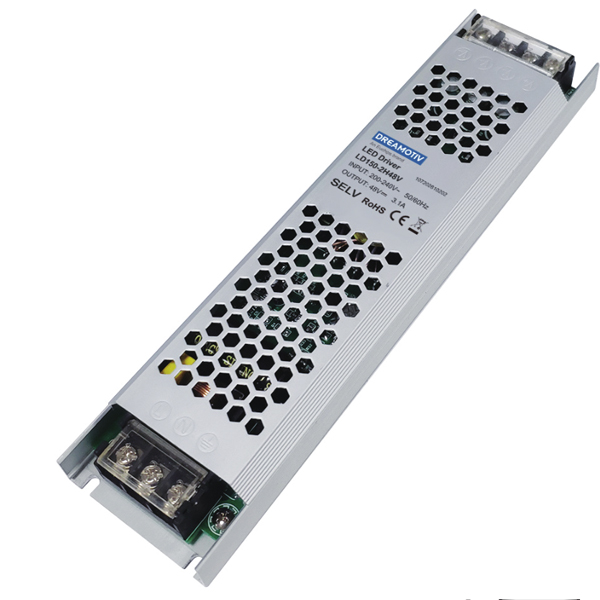

150W 48VDC 2ch Non-dimmable CV Driver LD150-2H48V

Short Description:

  • Item No.: LD150-2H48V
  • Output Power: 150W

Product Detail

Product Tags

150W 48VDC 2ch Non-dimmable CV Driver LD150-2H48V
Features
·Aluminium Casing
·Ultra-low start up temp -30°C
·Ultra-light and easy to install
·High efficiency up to 86%
·High reliability
·Wide input Voltage 180~264Va

Technical Parameters

Model LD150-2H48V






Input

Efficiency 86%@220VAC, Full load
Typical Input Voltage 200-240VAC
Maximum Input Voltage Range 180~264Vac
Frequency 50Hz
Maximum Input Current ≤ 1.7A @ 230Vac
Inrush Current Less than 65A/230Vac, cold start
Leakage Current <0.75mA/240Vac










Output

Current 0~3.1A
Voltage 48VDC
Rated Power 150W
Ripple & noise 400mVp-p
Output Voltage range 45.6~50.4V
Channel 2
Line Regulation 1%
Load Regulation 2%
Voltage Tolerance ±5%
Turn On Delay Time 1.5S, 20mS@230Vac
Protection Short Circuit Protection Type : Hiccup mode, Auto-recovery
Over Load 110%~170% of rated load.


Safety

Withstand Voltage Input-FG: 1500Vac or 2121Vdc, Input-Output: 1500Vac or 2121Vdc, Output-FG: 500Vac or 707Vdc
Isolation Resistance Input-FG: >100MΩ 500Vdc @25°C &70RH; I/P-O/P: >100MΩ 500Vdc @25°C &70RH; O/P-FG: >100MΩ 500Vdc @25°C &70RH






Others

Working Temp.; Humidity -30~+60°C, 20~90%RH non-condensing
Storage Temp.; Humidity -30°C~+70°C, 10%~95%RH non-condensing
Material Metal
IP Rating IP20
Lifetime 40,000h@tc:65°C
Warranty Condition 2 Years
Switch Cycle >15,000 times
Packing Size Net weight: 250g±5%/PCS; 50PCS/Carton; 14kg±5%/Carton; Carton Size: 280*234*300mm(L*W*H)
Dimension 219*53*22mm(L*W*H)
