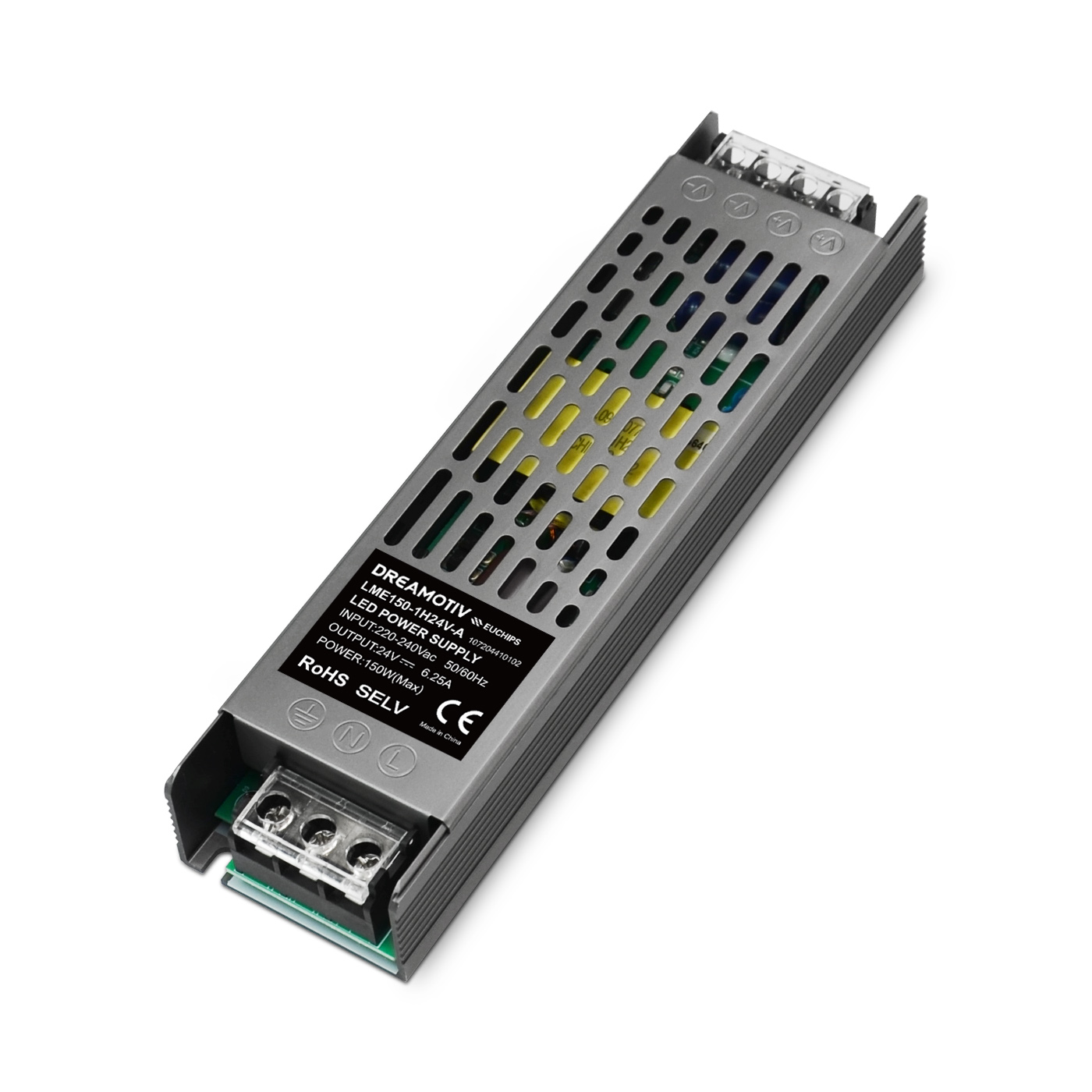

150W 24VDC Non-dimmable CV LED Driver LME150-1H24V-A
150W 24VDC Non-dimmable CV LED Driver LME150-1H24V-A
The circuit of this product is simple, stable and reliable. Long aluminum structure, Ordinary constant voltage with simple terminal input and output. Simple installation.
can be used in commercial, office, home, decorative and other projects.
Features
· Aluminum Casing
· No-load power≤0.5W
· Flicker free
· High efficiency up to 87%
· Ultra-low start up temp.(-25℃)
· Multiple protections: Short circuit/ Over load/ Over Current/ Over temperature
· Small size, light weight
Technical Parameters
| Model | LME150-1H24V-A | LME150-1H24-B | |
|
Input |
Rated AC Input Voltage | 220-240Vac | Compared to the A series, the LME150-1H24V-B has its output terminal changed from 4PIN to 2PIN, with three-position dip switches and four positionsThe settings correspond to output voltages of 24V, 22.6V, 20.4V, and 19.6V respectively |
| AC Input Voltage Range | 198-264Vac | ||
| Frequency Range | 50/60HZ | ||
| PF | ≥0.3@230VAC, full load | ||
| Input Current | 1.70Amax@230Vac | ||
| Efficiency | ≥87%@230Vac | ||
| Inrush Current | Cold start,60A@230VAC, 400us | ||
| No Load Power | ≤0.5W, (EU)NO 2023/826 | ||
|
Output |
Output Voltage | 24V(-5%,+2%) | |
| Output Current | 0-6.25A | ||
| Power Range | 0-150W | ||
| SVM | ≤ 0.4 | ||
| PST | ≤ 1 | ||
| Ripple Voltage | 450mV Max | ||
| No Load Output Voltage | 24.5VDC Max | ||
| Turn on Delay Time | ≤0.5 s@230VAC | ||
|
Protection |
Short circuit | Short circuit No output, troubleshooting output normal | |
| Over load | Reduce voltage protection to troubleshoot normal output | ||
| Over Current | Reduce voltage protection to troubleshoot normal output | ||
| Over temperature | Reduce voltage protection to troubleshoot normal output | ||
| Safety& EMC | Surge | L-N: 1kV, LN- Ground cable: 2kV (IEC 61000-4-5) | |
| Withstand Voltage | I/P - O/P: 3000Vac/1min/<5mA I/P - G: (housing) 1500Vac/1min/<5mA O/P - G: (housing) 500Vac/1min/<5mA | ||
| Safety standards | EN IEC 62368-1, EN 60335-1 , EN 61558-1/-2-16,GB 4943.1 | ||
| EMC Emission | EN 55032, EN55035, EN IEC 61000-3-2,EN IEC 61000-3-3,EN 55014, GB 17625.1, GB/T 9254.1 | ||
| Insulation Resistance | ≥10MΩ@500Vdc | ||
|
Others |
Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Working temp. | ta:-20-50℃ | ||
| Tc | 75℃ @230Vac | ||
| IP | IP20 | ||
| Lifetime | 30,000h@tc:60℃ | ||
| Warranty | 3 year | ||
| Switch cycle | 15,000 times | ||
| Packing size | Net weight:288g±5%/PCS; 50 PCS/Carton; 14.9kg±5%/Carton; Carton Size: 414*294*200mm(L*W*H) | ||
| Dimension | 188*49*28mm(L*W*H) | ||
