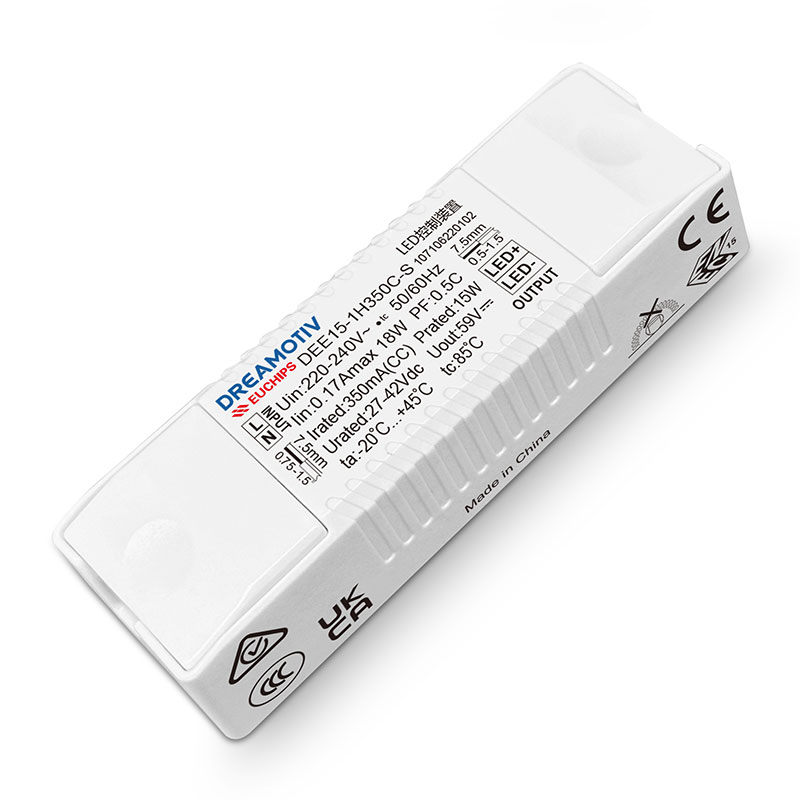

15W 350mA Non-dimmable CC Driver DEE15-1H350C-S
15W 350mA Non-dimmable CC Driver DEE15-1H350C-S
Features
· Single constant current output
· Short circuit, overcurrent, overload, overvoltage, over-temperature, V0-level flame-retardant housing
· High voltage input: 220VAC to 240VAC
· Protection grade IP20, suitable for indoor Class II lamps
· Compact body and flicker-free design
· Lifespan: 50,000 hours, 5-year warranty
· It is suitable for LED indoor lighting fixtures, such as downlights, panel lights, etc
Technical Parameters
| Model | DEE15-1H350C-S | |
| Input | Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.17Amax@230VAC | |
| Power Factor | >0.5@230VAC, Full load | |
| Efficiency | 85%@230VAC, Full load | |
| THD | / | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current | Cold start, 10A@230V 51us | |
|
Output |
Output Voltage | 27VDC-42VDC |
| Output Current | 350mA | |
| Output Power | 15W | |
| Current Accuracy | ±8% | |
| Ripple current | <3% | |
| Output Power Range | 9.45W~15W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Dimming frequency | / | |
| Line Regulation | ±5% @Full load | |
| Load Regulation | ±5% @Full load | |
| Turn on delay Time | 0.5s, at230Vac (When the light begins to shine) | |
| Protection | Short circuit | If the positive and negative terminals of the output are short-circuited, the short-circuit protection function can prevent the product from being permanently damaged. |
| Over Current | Output overcurrent protection,A current limiting | |
| Over load | Limit the output power to 110%-150% of the rated power | |
| Over Voltage | Output overvoltage protection | |
| Over temperature | When the temperature exceeds the standard value, the output power decreases or the operation stops. Restore after the fault conditions are eliminated | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Safety Standards | CCC(China) GB19510.1，GB19510.14; TUV(Germany)EN61347-1，EN61347-2-13，EN62493 | |
| CB(CBmember states) IEC61347-1，IEC61347-2-13;CE (European Union)EN61347-1，EN61347-2-13，EN62384 | ||
| RCM(Australia) AS 61347-1，AS 61347-2-13; ENEC (Europe)EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission | ||
| CE(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~45℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 10-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 85℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 88*28*21mm (L*W*H) | |
| Packing(weight) | Net weight: 31g±5%/PCS; 120PCS/Carton; 4.3kg±5%/Carton; Carton Size: 300*275*150mm(L*W*H) | |
| Noise | In a quiet environment, no noise beyond 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
