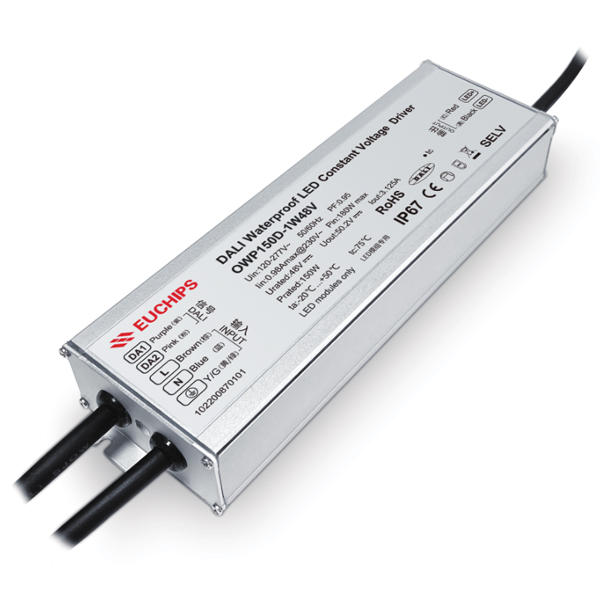

150W 48VDC DALI Waterproof CV Driver OWP150D-1W48V

Short Description:

  • Item No.: OWP150D-1W48V
  • Input Voltage: 120-277VAC
  • Output Current: 3.125A
  • Output Voltage: 48VDC
  • Output Power: 150W
  • Dim Mode: DALI
  • G.W.: 788g
  • Size: 210*64*33mm

Product Detail

Product Tags

150W 48VDC DALI CV Driver OWP150D-1W48V

OWP150D-1W48V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. LED driver featuring the dimming by DALI master/Touch DIM(PushDIM) switch, with smooth dimming curve and are flicker free.

Features

·Single channel output with 48V Constant Voltage direct current
·With built-in active PFC function
·Meet DALI protocol IEC 62386-207
·Support Touch DIM(Push DIM) function
·Ultra-thin design, Waterproof level IP67
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, over Current, lightning protection
·suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on

Technical Parameters

Model OWP150D-1W48V






Input

Efficiency ≥91%@230VAC, Full load
Voltage 120VAC-277VAC
Frequency 50~60Hz
Power Factor ≥0.95@230VAC, Full load
THD <10%230VAC, Full load
Current 0.98Amax@230VAC 1.74Amax@120V
Inrush Current Cold start 63A@230VAC 240us
Standby power ≤0.5W@230VAC
No load power ≤0.5W@230VAC
Turn on delay Time ≤ 0.75 s, at230Vac (When the light begins to shine)


Output

Direct voltage 48VDC
Rated current 3.125A
Rated Power 150W
Voltage Tolerance ±5%
Ripple and noise(max) ±3%
Channel 1
 Protection Short Circuit Close output, recovers automatically after fault removed
Over Current Reduce current hiccup protection and troubleshoot normal output
Over Load Reduce current hiccup protection and troubleshoot normal output
  Safety&EMC Surge L-N 6000VAC L-N-PG 10000VAC
Withstand Voltage I/P-O/P:3750VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA
Safety Standards EN61347, GB19510
EMC Eission EN55015, EN61000-3-2 GB17743 GB17625.2
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 GB17626.2.3.4.5.6.8.11
  Function Dimming mode DALI
Dimming range 0.1%-100%
Dimming curve Logarithm
Flicker No Flicker




Others

Working Temp. -20℃~+50℃@230VAC Inpit,- 20℃~+40℃@120VAC Inpit
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 75℃
Material Metal
IP Rating IP67
Lifetime 50,000h@tc:75℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 788g±5%/PCS; 20PCS/Carton; 16.3kg±5%/Carton; Carton Size: 347*257*214mm(L*W*H)
Dimension 210*64*33mm(L*W*H)
