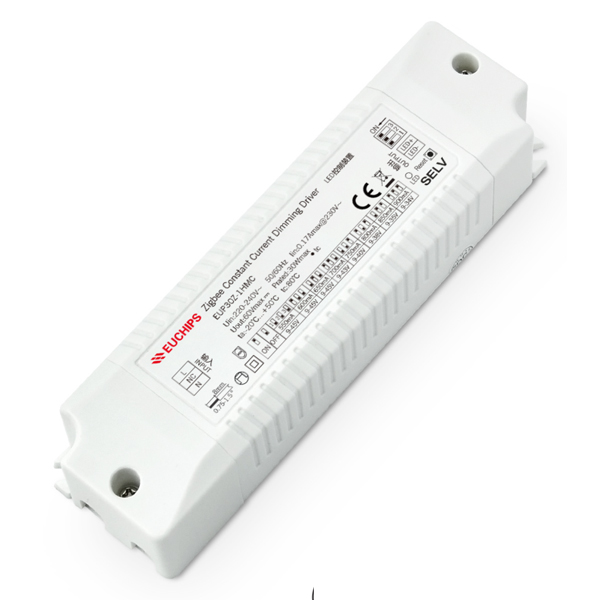

EUP30Z-1HMC is a 30W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Zigbee to achieve wireless dimming effect.
Features
· output current level selectable by DIP S.W.
· Wide input voltage of 220VAC ~ 240VAC
· High efficiency up to 85%
· Built-in active PFC function
· Protections: over load, short circuit
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Paramaters
| Model | EUP30Z-1HMC | |
| Input | Efficiency | ≥85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.17Amax@230VAC | |
| Inrush Current(max) | Cold start,28A(twidth=14us measured at 50% Ipeak)@230VAC | |
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Standby power | ≤1.2W | |
| No load power | ≤1.2W | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 550mA/9-45VDC/24.7W 600mA/9-45VDC/27W 650mA/9-45VDC/29.2W 700mA/9-43VDC/30W
750mA/9-40VDC/30W 800mA/9-38VDC/30W 850mA/9-35VDC/29.7W 900mA/9-34VDC/30W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60VDC Max | |
| Function | Dimming Type | Zigbee |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Protection | Short Circuit | No output - recovers automatically after fault removed |
| Over Voltage | Current down, troubleshooting output normal | |
| Over Load | Current down Hiccup, output current Reduced | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | |
| Others | Working Temp. | -20℃~50
℃ |
| Storage Temp., Humidity | -40℃ ~85℃ 20-90%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 155g±5%/PCS; 50PCS/Carton; 8.25kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
