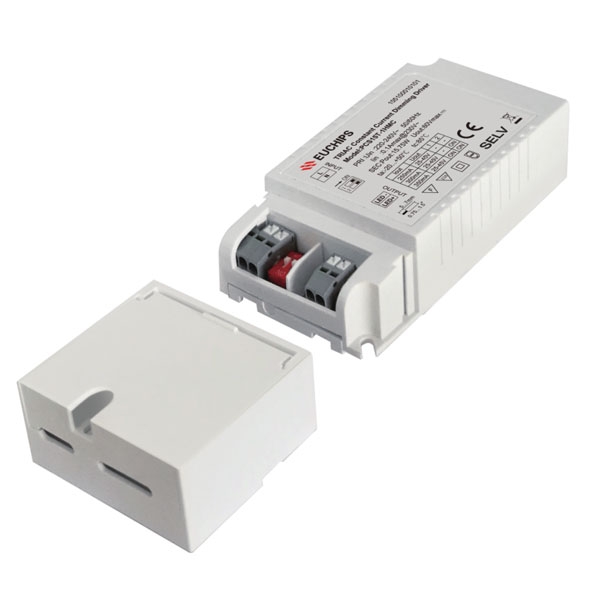

15W 250/300/350mA*1ch Phase-cut CC Driver PCS15T-1HMC
15W 250/300/350mA Phase-cut Constant Current Driver PCS15T-1HMC
PCS15T-1HMC is a constant voltage mode output LED driver. he output current can be easily set
via DIP switch. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can
be compatible with the systems of various brands to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable via DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Over load protection; Short circuit protection
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | PCS15T-1HMC | |
| Input | Voltage | 220VAC-240VAC |
| Frequency | 50/60Hz | |
| Dimming Voltage Range | 40-240VAC | |
| Efficiency | 82%@230VAC, Full Load | |
| PF | ＞0.95@230VAC, Full Load | |
| THD | ＜20%@230VAC, Full Load | |
| Current | 0.10Amax@230VAC, Full Load | |
| Inrush current | Cold start,15A(twidth=50us measured at 50% Ipeak)@230VAC | |
| Output | Current/Voltage/Power | 250mA/25-45VDC/11.25W 300mA/25-45VDC/13.5W 350mA/25-45VDC/15.75W |
| Current Accuracy | ±5% | |
| No load output voltage | 60VDC | |
| Output LF current ripple | <8% | |
| Protection | Short circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over current | Hiccup mode, recovers automatically after fault condition is removed | |
| Function | Dimming mode | Triac/ELV |
| Others | Dimension | 118*50*25mm(L*W*H)/93*50*25mm(L*W*H) |
| G.W | 100g/90g | |
| Ip Rating | IP20 | |
| Working Temp | -20℃ ~ 50℃ | |
| Tc | 85℃ | |
| Relative Humidity | 20~90% RH | |
| Lifetime | 50000h@tc max | |
| Switch Cycle | >100,000 times | |
