45W 500~1050mA*1ch Phase-cut CC Driver EUP45T-1WMC-0

Short Description:

  • Item No.: EUP45T-1WMC-0
  • Output Power: 45W

Product Detail

Product Tags

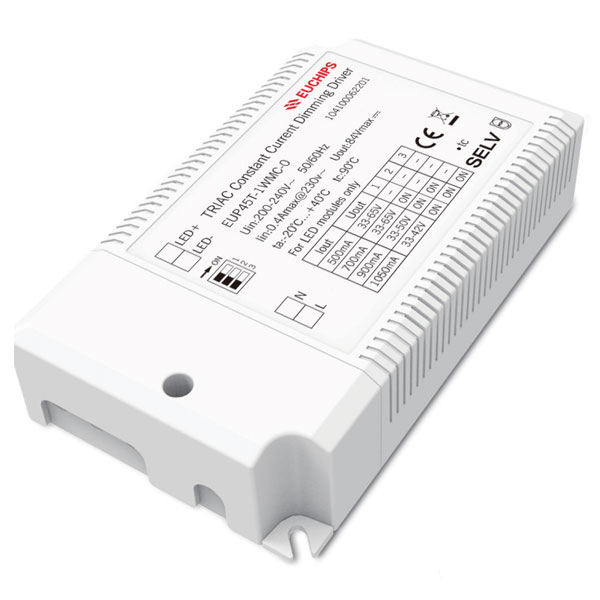

45W 500/700/900/1050mA*1ch Phase-cut Constant Current LED Driver EUP45T-1WMC-0

EUP45T-1WMC-0 is a constant current mode output LED driver. The output current can be easily set via the DIP dial switch. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens etc.) to achieve a smooth dimming effect.

Product Features

1. Multi-current driver selected by Dip-switch

2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.

3. Dimming range from 40VAC to 240C

4. Dimming effect smooth, no flicker

5. High efficiency up to 87%

6. Output short circuit protection; over current protection

7. Suitable for indoor LED lighting application, down light, panel light, and so on

Technical Parameter

Model EUP45T-1WMC-0
Input Efficiency 87%@230VAC, Full load
Voltage 200VAC-240VAC
Frequency 50/60Hz
Power Factor >0.5@230VAC, Full load
Current 0.4Amax@230VAC, Full load
Dimming voltage range 40-240VAC
Inrush Current 20A@230VAC
Output Current/Voltage/Power 500mA/33-65VDC/32.5W 700mA/33-65VDC/45.5W 900mA/33-50VDC/45W 1050mA/33-42VDC/44.1W
Channel 1
Current Tolerance ±7%
No Load Output Voltage 84V Max
Turn On Delay Time <1s, at 230Vac
Ripple Current <3%
Function Dimming Mode Triac ELV
Protection Short Circuit Hiccups, recovers automatically after fault condition removed
Over Current Hiccups, recovers automatically after fault condition removed
Others Working Temp. -20℃~40
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 90℃
Material PC
IP Rating IP20
Lifetime 30,000h@tc:90℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size: 516*337*179mm(L*W*H)
Dimension 137*82*31mm(L*W*H)
