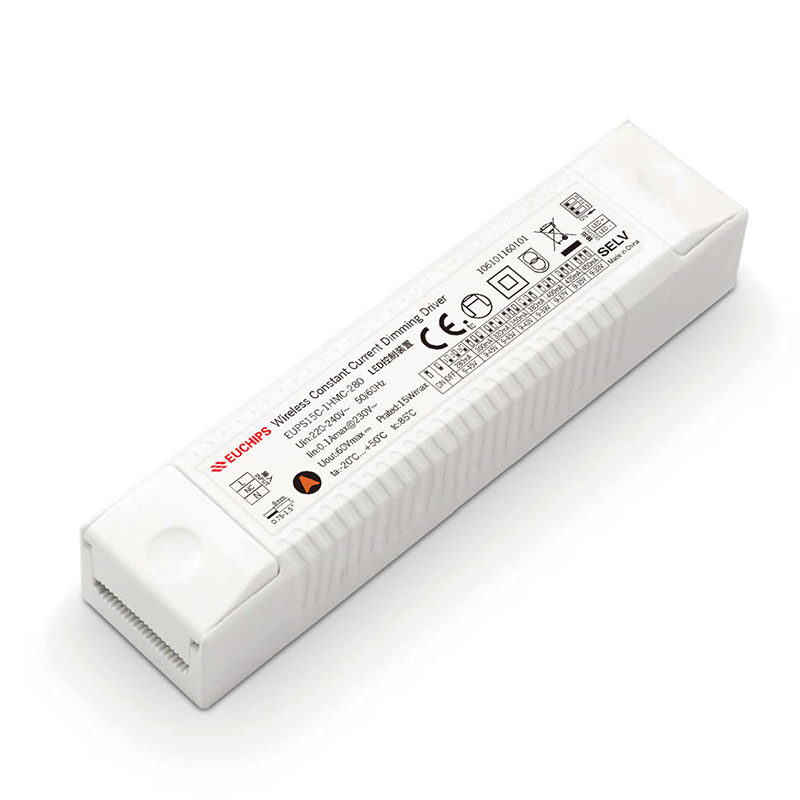

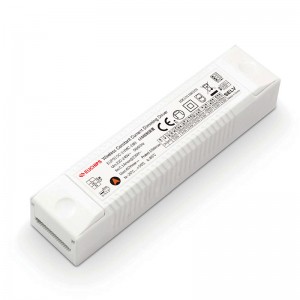

15W 280~450mA Casambi CC Dimming Driver EUPS15C-1HMC-280

Short Description:

Item No.: EUPS15C-1HMC-280
Output Power: 15W

Download Certificates Download Test Reports

Product Detail

Product Tags

15W 280~450mA Casambi CC Dimming Driver EUPS15C-1HMC-280

EUPS15C-1HMC-280 is an LED driver capable of providing 8 current levels. The output current can be easily set through a DIP dip switch. Using Casambi wireless control and dimming, the curve is smooth and flicker-free.

Features

· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Short circuit protection, overload protection, overcurrent protection,
· 50,000-hour lifespan with a 5-year warranty
· IP20 protection rating, suitable for indoor Class I, II, luminaires

Technical Parameters

Model	EUPS15C-1HMC-280
Input	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	0.1Amax@230VAC
	Power Factor	≥0.95@230VAC, Full load
	Efficiency	>82%@230VAC, Full load
	THD	<10%@230VAC, Full load
	Standby power	<0.5W
	Inrush Current(max)	Cold start,4A(twidth=20us measured at 50% Ipeak)@230VAC
Output	Current(mA)/Voltage (VDC) Power(W)	280mA/9-45VDC/12.6W 300mA/9-45VDC/13.5W 320mA/9-45VDC/14.4W 350mA/9-43VDC/15.1W 380mA/9-39VDC/14.8W 400mA/9-37VDC/14.8W 420mA/9-35VDC/14.7W 450mA/9-33VDC/14.9W
	Ripple Current	±5%
	No-load output voltage	60V Max
	PstLM	≤1
	SVM	≤0.4
	PWM Dimming frequency	20KHz
	Line Regulation	±1% @ Full load
	Load Regulation	±0.5% @ Full load
	Turn on delay Time	<0.75s, at230Vac(When the light begins to shine)
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	0.1%-100% Dimming to off
	Dimming Curve	Linearity
	Flicker free	Flicker free
Protection	Short circuit	Shut down output, Auto-recovery after Fault Clearance
	Overcurrent	Shut down output, Auto-recovery after Fault Clearance
	Overload	Load power ≥ 140% protection, current drops, auto-recovery after Fault Clearance
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union)EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp	-20℃~50℃
	Storage Temp	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	85℃
	material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:85℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	12529.622.6mm (LWH)
	Packing(weight)	Net weight: 63g±5%/PCS; 120PCS/Carton; 8.06kg±5%/Carton; Carton Size: 505237199mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
