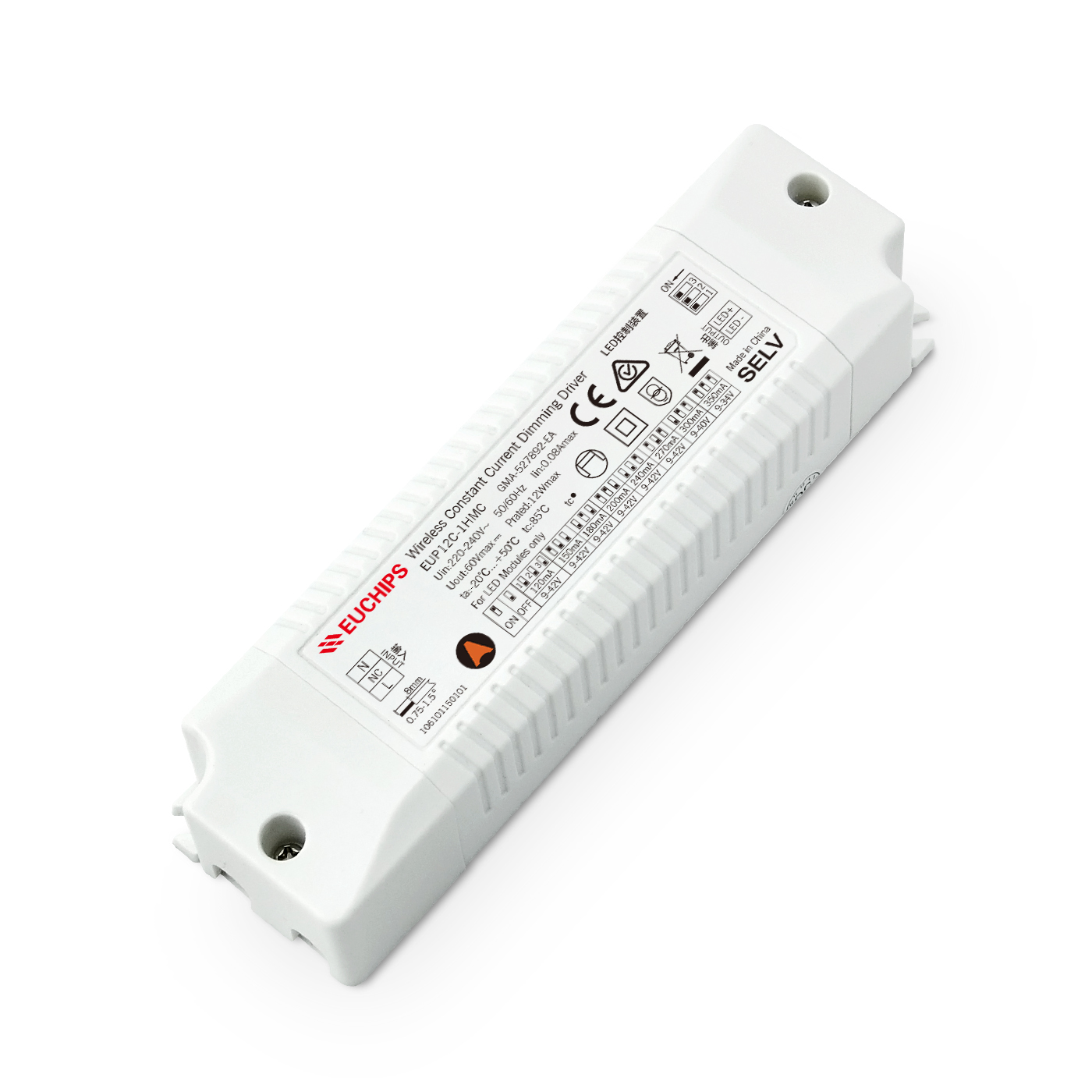

12W 120~350mA Casambi CC Dimming Driver EUP12C-1HMC

Short Description:

  • Item No.: EUP12C-1HMC
  • Output Power: 20W

Product Detail

Product Tags

12W 120~350mA Casambi CC Dimming Driver EUP12C-1HMC

EUP12C-1HMC is a 12W AC/DC constant current mode output LED driver, multiple current selectable by DIP switch, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
· Flexible wireless control allows for remote management and real-time adjustment of lighting settings
· Good compatibility, able to integrate with various third-party devices and protocols
· User friendliness, easy control and configuration through smart device applications
· Overload, overvoltage, short circuit protection
· 50,000-hour lifespan with a 5-year warranty
· IP20 protection rating, suitable for indoor Class I, II, and III luminaires

Technical Parameters

Model EUP12C-1HMC
Input Efficiency >83%@230VAC,Full load
Voltage 220VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC,Full load
THD(full load) <10%@230VAC, Full load
AC Current(max) 0.08Amax@230VAC
Standby power <1W
Inrush Current(max) Cold start,8.56A(twidth=20us measured at 50% Ipeak)@230VAC
Output Current(mA)/Voltage (VDC) Power(W) 120mA/9-42VDC/5.04W 150mA/9-42VDC/6.3W 180mA/9-42VDC/7.56W 200mA/9-42VDC/8.4W

240mA/9-42VDC/10.08W 270mA/9-42VDC/11.34W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W

Ripple Current <3%
Channel 1
Current Tolerance ±7%
No load output voltage 60V Max
Turn on delay Time <1s, at230Vac
Function Dimming Type Bluetooth 4.0 or 5.0 Low Energy(BLE)
Dimming Range 0.5%-100% Dimming to off
Protection Short Circuit No output, self-recovery after fault resolution.
Overload Hiccup, self-recovery after fault removal.
Overvoltage Hiccup, self-recovery after fault removal.
Safety& EMC Surge L-N:2KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA
Safety Standards IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14,
EMC Eission EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743
EMC Immunity EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Others Working Temp. -20℃~50℃
Storage Temp., Humidity -40℃~85℃, 20-90%RH
tc 85℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:85℃
Warranty Condition 5 Years
Switch Cycle >25,000 times
Packing(weight) Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H)
Dimension 150*43*29mm(L*W*H)
