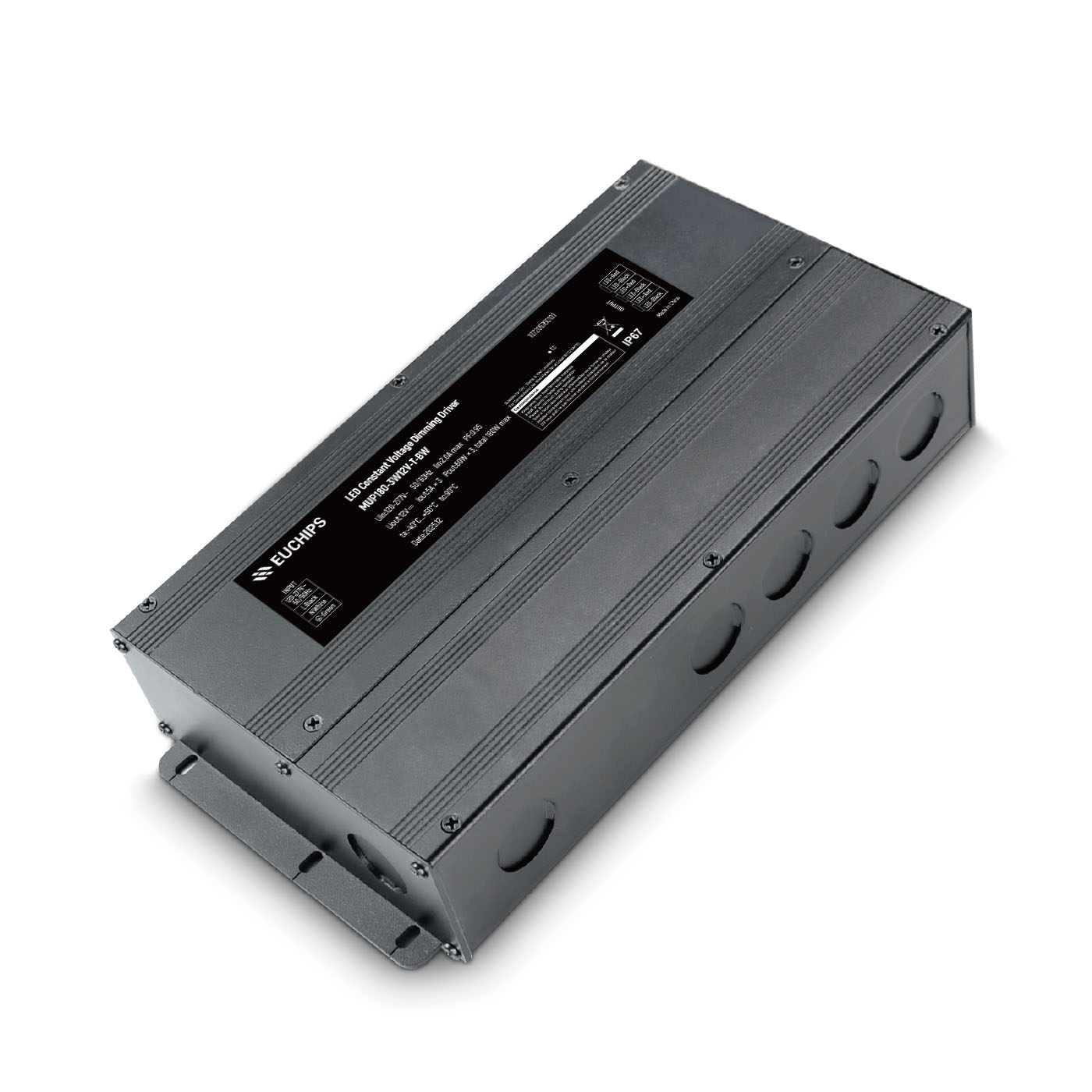

180W 12VDC Non-dimmable CV LED Driver MUP180-3W12V-T-BW
MUP180-3W12V-T-BW
Features
• Three-channel constant voltage output, with a maximum output current of 5A per channel
• Input voltage range: 120-277Vac
• Protection: short circuit, Overload, Overcurrent, Overtemperature
• 50,000 hours lifespan @ Tc=75℃
• 5-year warranty
• Flicker free
• Suitable for use in dry, damp, and wet locations
Technical Parameters
|
Model |
MUP180-3W12V-T-BW | |
|
Input |
Efficiency | ≥88%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 2.0Amax @120VAC, 1.1Amax@230VAC, 1.0Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <15%277VAC, full load | |
| Inrush Current(max) | Cold start, 17A@120VAC 412us, 51A@277VAC 300us, | |
| Standby power | <0.5W@120VAC | |
| No load power | <0.5W@120VAC | |
| Turn on Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 3 Channel, 5A per channel |
| Voltage | 12VDC | |
| Voltage Range | 12VDC±5% | |
| Power | 60W per channel, total 180W | |
| Channel | 3 | |
| Overpower limit | ≥120% | |
| Ripple Voitage | ≤200mV(p-p) | |
|
Protection |
Short Circuit | No output, Auto-recovery after Fault Clearance |
| Overload | No output, Auto-recovery after Fault Clearance | |
| Overcurrent | No output, Auto-recovery after Fault Clearance | |
| Overtemperature | Reduce power 50%, auto-restart after normal temperature | |
|
Safety&EMC |
Surge | L-N :6kV L-N-PG:6kV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-PG:1800Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA | |
| Safety standards | UL8750 CSA25013.CSA Class P, EN61347-1 EN61347-2-13 | |
| EMC | FCC 47 Part 15 Class B, EN55015 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -40℃~+60℃ (-40°F~140°F) |
| Storage Temp., Humidity | -40℃~90℃ (-40°F~194°F), 20-90%RH | |
| tc | 90℃(194°F)safety & 75℃ (167°F) for life | |
| Material | Metal | |
| IP Rating | IP65 | |
|
Others |
||
| Lifetime | 50,000小时@tc:75℃ (167°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Dimension | 260*132*52mm (10.24*5.2*2.05 Inch)(L*W*H) | |
| Packing(weight) | Net weight: 1600g(3.53 lb)±5%/PCS; 10PCS/Carton;16.5kg(36.4 lb)±5%/Carton; Carton Size: 322*295*286mm(12.6*11.6*11.25 Inch)(L*W*H) | |
