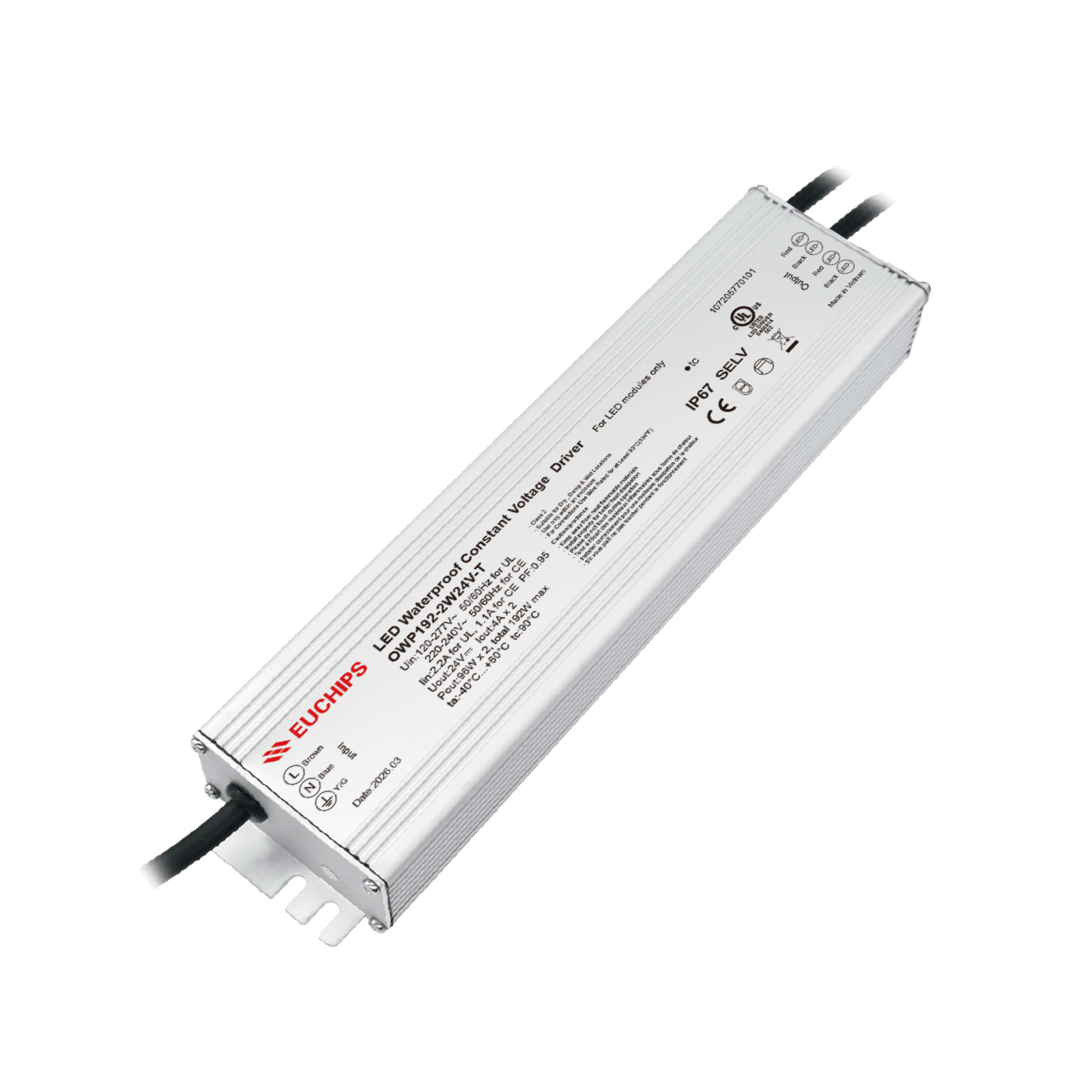

192W 24VDC Phase-cut Waterproof CV Driver OWP192-2W24V-T
192W 24VDC Phase-cut Waterproof CV Driver OWP192-2W24V-T
Features
· Dual-channel constant voltage output, per channel 4A Max
· Input Voltage Range 120-277Vac
· Protection: short circuit, Overload, Overcurrent, Overtemperature
· 50,000Hour Life @ tc=90℃
· 5 Year Warranty
· Flicker free
· Safety according to UL8750 &UL 1310
· Suitable for Dry , Damp & Wet Locations
Techncial Parameters
|
Model |
OWP192-2W24V-T | |
|
Input |
Efficiency | ≥90%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Input voltage range | 100VAC-305VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 2.2A@120VAC, 1.2A@230VAC, 1.1A@277VAC | |
| PF | ≥0.98@120VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start, 46A@120VAC 276us, 78A@230VAC 344us, 96.80A@277VAC 276us | |
| Standby power | <0.5W@120VAC | |
| No load power | <0.5W@120VAC | |
| Turn on Time | <0.5s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 4A*2 Channel |
| Voltage | 24VDC | |
| Voltage Range | 24VDC±5% | |
| Power | 96W per channel, total 192W | |
| Channel | 2 | |
| Overpower limit | ≥110% | |
| Ripple Voltage | ≤240mV(p-p) | |
|
Protection |
Short Circuit | No output, Auto-recovery after Fault Clearance |
| Overload | No output, Auto-recovery after Fault Clearance | |
| Overcurrent | No output, Auto-recovery after Fault Clearance | |
| Overtemperature | Reduce power 50%, auto-restart after normal temperature | |
|
Safety&EMC |
Surge | L-N: 6kVAC L-N-PE: 6kVAC |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA | |
| Safety standards | UL/cUL879/UL8750/UL1310 | |
| EMI | FCC Part 15 Class B @ 120~277V | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -40℃~+60℃ (-40°F~140°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F~185°F), 20-90%RH | |
| tc | 90℃(194°F) for safety &85℃ (185°F) for life | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Dimension | 251*67.5*35mm(L*W*H) 9.88*2.66*1.38 In | |
| Packing(weight) | Net weight: 950g(2.1 lb)±5%/PCS; 15 PCS/Carton;14.75kg(32.51 lb)±5%/Carton; Carton Size: 302*285*224mm(L*W*H) | |
