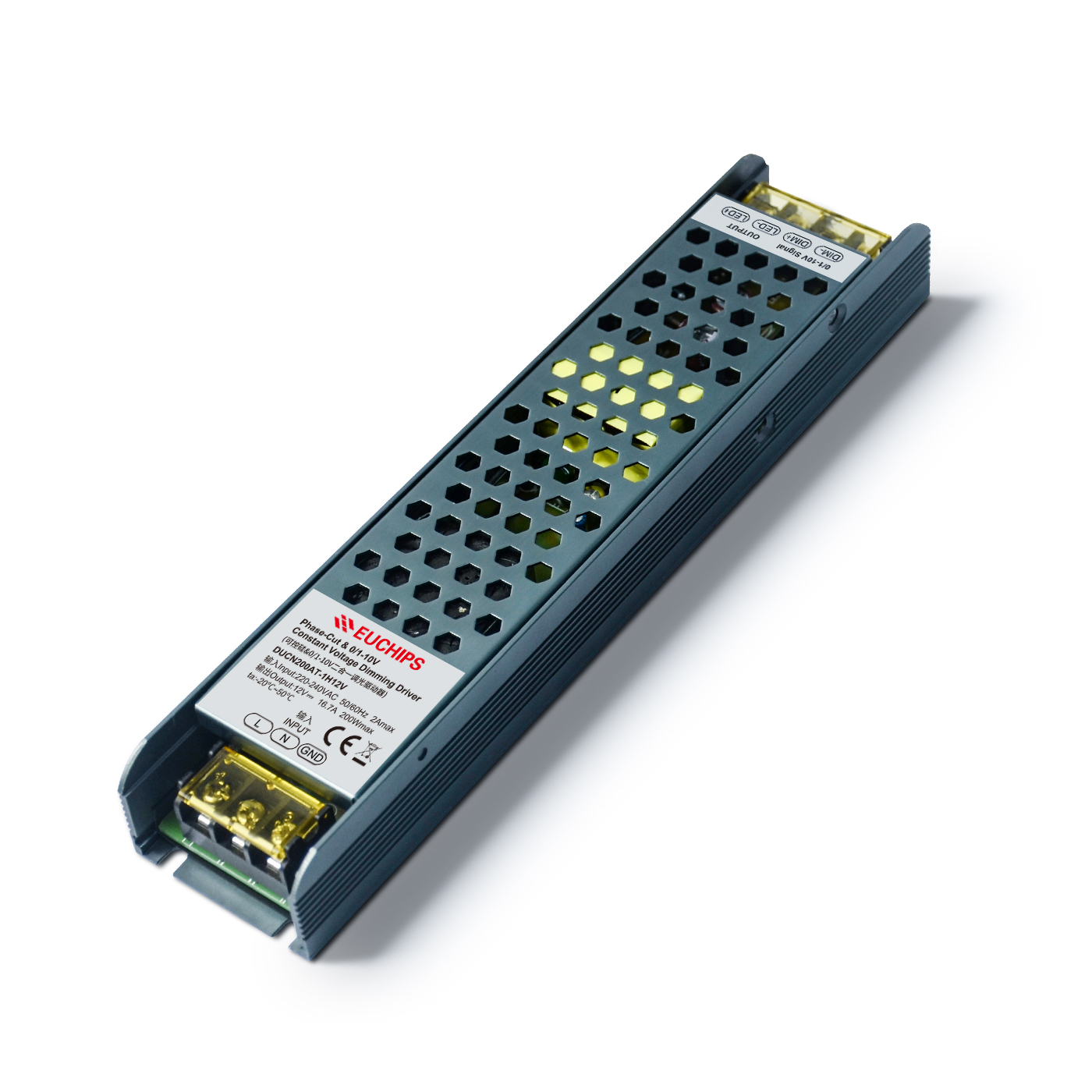

200W 12VDC Phase-cut & 0-10V CV Driver DUCN200AT-1H12V
200W 12VDC Phase-cut & 0-10V CV Driver DUCN200AT-1H12V
DUCN200AT-1H12V is a constant voltage mode output LED driver. This driver can be controlled by external signal Phase-Cut ,0/1-10V to achieve a smooth dimming effect.
Features
·Single channel constant voltage output,16.7A Max
·High input voltage of 220VAC ~ 240VAC
·Dimming range of 1-100%, and dimming effect smooth, no flicker
·100% output when no dimming signal input, can be used as normal power supply
·Over load protection; short circuit protection
·IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | DUCN200AT-1H12V | |
|
Input |
Efficiency | >89%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 2Amax@230VAC, full load | |
| Inrush Current(max) | Cold start,55A@230VAC | |
|
Output |
Current | 16.7A |
| Voltage | 12VDC | |
| No load output voltage | 12.6Vmax | |
| Power | 200W | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
|
Function |
Dimming Type | Phase-Cut & 0/1-10V |
| Dimming Range | 0.5%-100% | |
|
Protection |
Short Circuit | Switch off the output power, working automaically after troubleshooting. |
| Over Voltage | Hiccup, recovers after fault condition is removed | |
| Over Load | Hiccup, recovers after fault condition is removed | |
| Safety&EMC | Surge | L-N:1KV L/N-G:2KV |
| Withstand Voltage | I/P-O/P: 1500VAC/1min/5mA | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 300g±5%/PCS; 50PCS/Carton;15kg±5%/Carton; Carton Size: 490*310*197mm(L*W*H) | |
| Dimension | 231*48*29mm（L*W*H） | |
