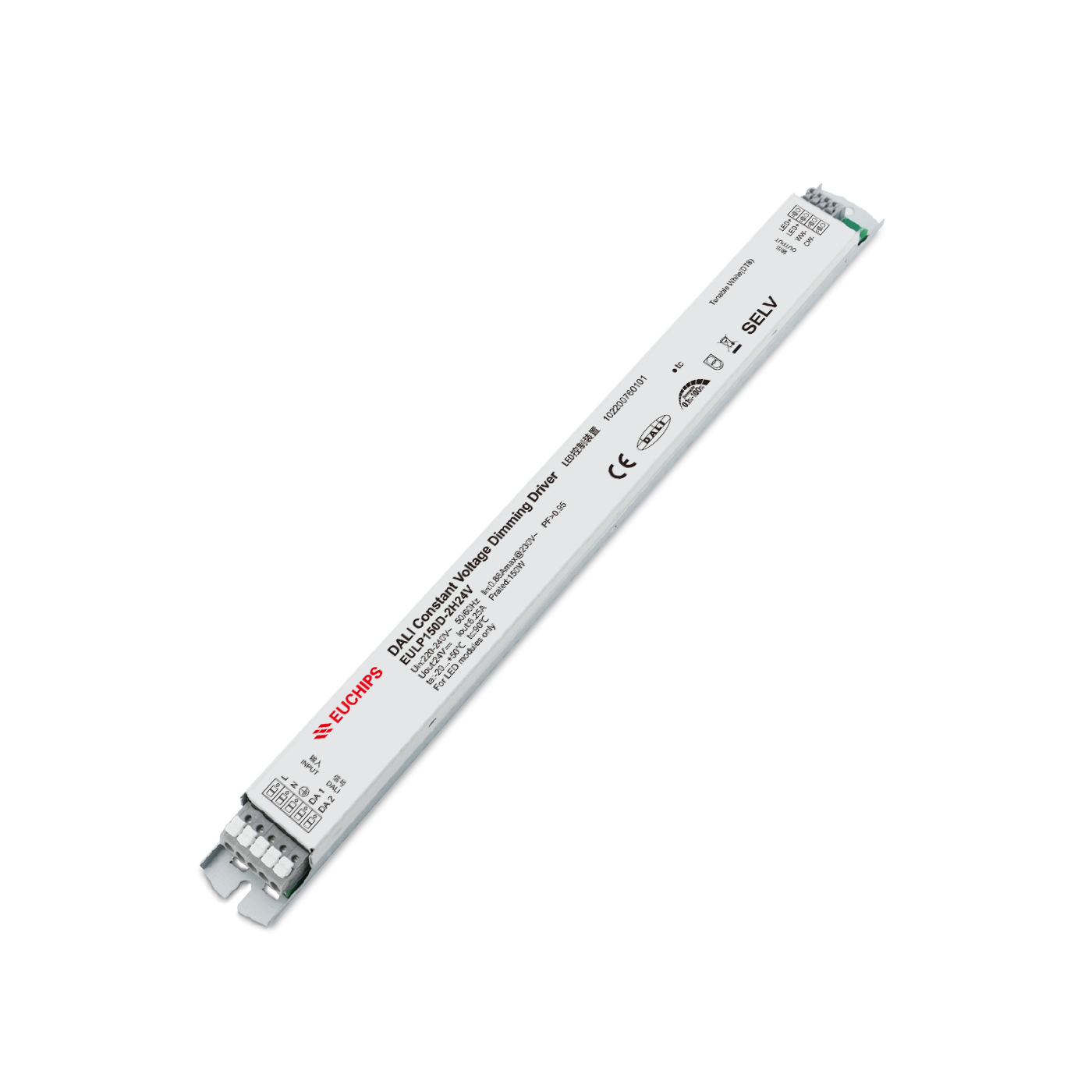

150W 24VDC 2ch DALI CV Driver DT8 EULP150D-2H24V
150W 24VDC 2ch DALI CV Driver DT8 EULP150D-2H24V
EULP150D-2H24V is a constant voltage mode output LED driver. It supports DALI standard protocol and adjustment of brightness and colour temperature.
Features
· 2 channels of constant voltage output, each carrying 6.25A ; separately ; When carrying multiple loads, the cumulative load shall not exceed 6.25A
· Meet DALI protocol IEC 62386 DT8
· Dimming effect smooth, no flicker
· Over load protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | EULP150D-2H24V | |
|
Input |
Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥91%@230VAC, full load | |
| PF | ≥0.95@230VAC, full load | |
| Current | 0.88Amax@230VAC | |
| THD | < 10% @ 230VAC, full load | |
| Inrush current | Cold start , 40A@230VAC 100us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤0.75s, at230Vac (When the light begins to shine) | |
|
Output |
Current/Voitage/Power | 6.25A/24V/150W |
| Channel | 2 | |
| Ripple Voitage | ＜3% | |
| No load output voltage | 25.2VDC max | |
|
Function |
Dimming type | DALI (Touch DIM) |
| Dimming range | 0.5%-100% | |
| Color temperature | 2700K-6500K | |
| Dimming curve | Logarithm | |
| Flicker | No stroboscopic | |
| Protection | Over load | Reduce the current burping protection, eliminate the fault, and the output is normal |
| Over Voitage | There is no output in case of short circuit, and the output is normal after troubleshooting | |
| Short circuit | Current down, troubleshooting output normal | |
|
Safety&EMC |
Surge | L-N 1000VAC L,N-GND 2000VAC |
| Withstand Voltage | I/P-O/P: 3750VAC / 1min / < 5mA O-signal: 1500vac / 1min / < 5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5Mfi | |
|
Others |
Working temp. | ta:-20℃~50℃ |
| tc | 90℃ @230Vac | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50000 hours @tc: 50℃ | |
| Warranty | 5 years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | > 25000 times | |
| Dimension | 360*30*21mm（L*W*H） | |
| Packing size | Net weight: 280g ± 5% / PCS; 50PCS/Carton; 14.5kg ± 5% / box; Outer box size: 370*326*127mm | |
