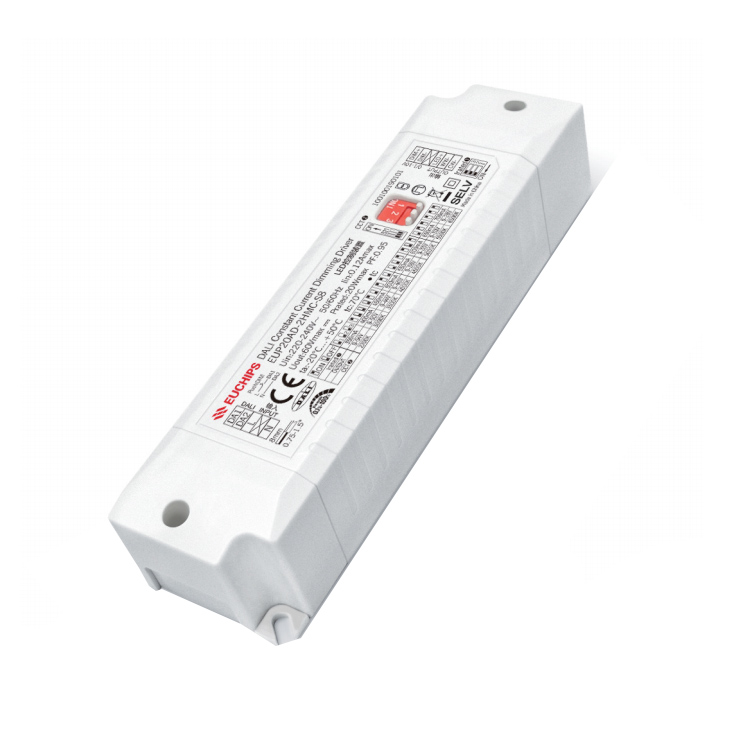

12W 120~350mA*2ch DALI&0/1-10V CC Driver EUP12AD-2HMC-S8
12W 120~350mA*2ch DALI&0/1-10V CC Driver EUP12AD-2HMC-S8
EUP12AD-2HMC-S8 is a constant current output LED dimming driver. The output current and color temperature values can be adjusted by dialing.
The driver complies with DALI standard protocol IEC62386; Supports DALI, 0/1-10V active signals, adjustable resistors, PWM, Touch DIM, and multiple dimming modes.
Features
· Single channel output, output current level selectable by DIP S.W.
· Meet DALI Protocol IEC 62386-207 Ed2.0
· Support Touch-DIM function
· Built-in active PFC function
· Dimming effect smooth, flicker free
· Protections: Short circuit, over voltage
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP12AD-2HMC-S8 | |
|
Input |
Efficiency | 83%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Current | 0.1Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD(full load) | <10%@230VAC, full load | |
| Inrush Current | Cold start,7A@230VAC 200us | |
| Standby power | ≤1W | |
| No load power | ≤1W | |
| Turn on delay Time | ≤ 1 s, at230Vac (When the light begins to shine) | |
| Output | Current Voltage Power | 120mA/9-54VDC/6.5W 150mA/9-54VDC/8.1W 180mA/9-54VDC/9.7W 200mA/9-54VDC/10.8W 240mA/9-50VDC/12W 270mA/9-44VDC/11.9W 300mA/9-40VDC/12W 350mA/9-34VDC/12W |
| Voltage Accuracy | ±5% | |
| Ripple Voltage | ±3% | |
| No load output voltage | 60V max | |
| Channel | 2 | |
| Function | Dimming Type | 0-10V&DALI2.0 |
| Dimming Range | 0.1%-100% Dimming to off | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short circuit | No output, troubleshooting output normal |
| Over Voltage | Current down, troubleshooting output normal | |
| Safety&EMC | Surge | L-N: 1KVAC |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA O/P-DALI( Signal port ):1500Vac/1min/<5mA I/P-0-10V( Signal port ):500Vac/1min/<5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working temp. | ta:-20-50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ @230VAC, full load | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty | 5 Years | |
| Switch Cycle | >25,000 times | |
| Material | PC | |
| Dimension | 135*36*25mm (L*W*H) | |
| Pack Information | Net weight: —g±5%/PCS; 80PCS/Carton;–kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
