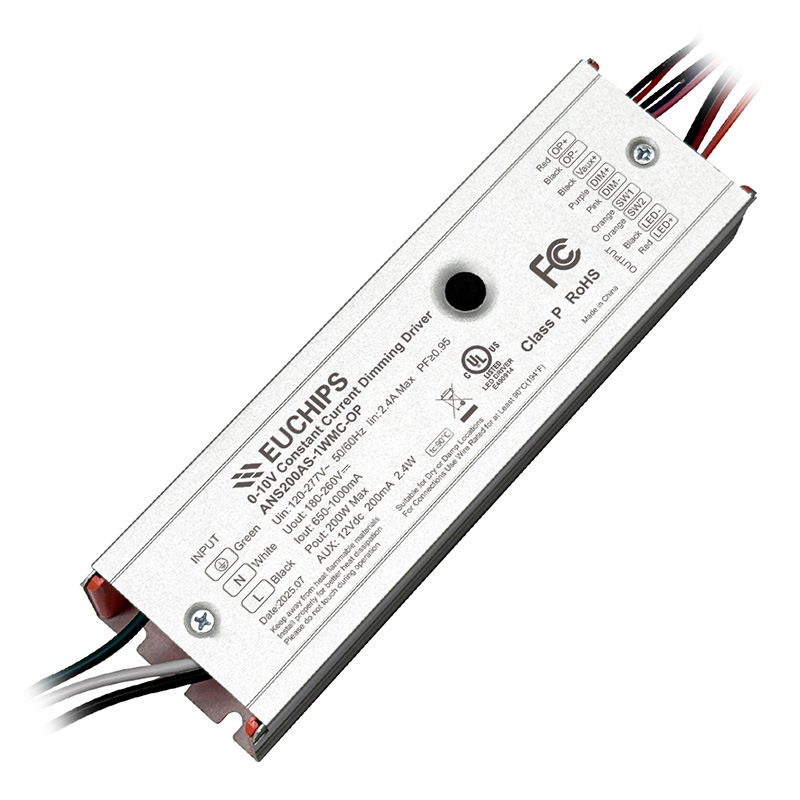

200W 650~1000mA*1ch 0/1-10V CC Driver ANS200AS-1WMC-OP
200W 650~1000mA*1ch 0/1-10V CC Driver ANS200AS-1WMC-OP
Features
• Input voltage range: 90-305Vac
• Supports isolated dimming (0-10V active signal, PWM signal, resistor)
• Adjustable Output Current (AOC) with Potentiometer
• High Efficiency up to 96.5%
• Auxiliary Power: 12VDC, 200mA
• Support for external DIP switches to adjust power
• Support for external light control switch
• Protection: IUVP,SCP,OVP, OTP
• Input surge protection: Differential mode: 6kV, Common mode: 6kV(ANSI/C82 .77-5-2017)
• 5-year warranty
• Safety according to UL8750
Models
|
Model Number |
Input Voltage Range |
Max. Output Power |
Output Voltage Range |
Output Current Range |
Default Current |
Efficiency (Typ.) |
PF (Typ.) |
THD (Typ.) |
|
ANS200AS-1W* |
90-305Vac |
200W |
180-260Vdc |
0.65-1.0A |
0.93A |
96.5% |
0.98 |
7% |
Note:
[1]. All specifications are measured at 25℃ ambient temperature, input voltage 220Vac, and the typical value tested by full load
[2]. AS means 0-10V/PWM/res dimming and 12V auxiliary source.
* Means Additional Function
|
Models |
0-10V/PWM/Res dimming |
Auxiliary 12V/200mA |
DIP switch |
Light control switch |
| ANS200AS-1W |
√ |
√ |
||
| ANS200AS-1WMC |
√ |
√ |
√ |
|
| ANS200AS-1W-OP |
√ |
√ |
√ |
|
| ANS200AS-1WMC-OP |
√ |
√ |
√ |
√ |
Technical Parameters
|
Model |
ANS200AS-1W* | ||||
|
Parameter |
Min. |
Typ. |
Max. |
Remark | |
|
Input |
Rated Input AC Voltage |
120Vac |
277Vac |
||
| Input AC Voltage Range |
90Vac |
305Vac |
Reference derating curve | ||
| Frequency Range |
47Hz |
50/60Hz |
63Hz |
||
| Input AC Current |
2.4A |
At 120Vac input and 100% load | |||
| Input AC Power |
240W |
At 120Vac input and 100% load | |||
| Leakage Current |
0.75MIU |
UL 8750; 277Vac/ 60Hz | |||
|
0.70mA |
IEC 60598-1; 240Vac/ 60Hz, | ||||
| Inrush Current |
50A |
At 120Vac input and 100% load, 25°C Cold Start | |||
|
70A |
At 220Vac input and 100% load, 25°C Cold Start | ||||
|
110A |
At 277Vac input and 100% load, 25°C Cold Start | ||||
| Standby Power |
0.5W |
At 220Vac input and Aux. power without load | |||
| Power Factor |
0.95 |
0.98 |
At 220Vac , 50-60Hz, 100% load | ||
|
0.90 |
At 120-277Vac , 50-60Hz, 70%-100% load | ||||
| THD |
7% |
10% |
At 220Vac , 50-60Hz, 100% load | ||
|
20% |
At 120-277Vac , 50-60Hz, 70%-100% load | ||||
|
Parameter |
Min. |
Typ. |
Max. |
Remark | |
|
Output |
Output Voltage Range |
180V |
- |
260V |
|
| Open Circuit Voltage |
- |
- |
310V |
||
| Output Current Range |
0.65A |
- |
1.0A |
Adjustable Output Current with Potentiometer; | |
| Efficiency @120Vac |
92.5% |
94.0% |
- |
At 100% load and Io=0.96A | |
| Efficiency @220Vac |
94.5% |
96.0% |
- |
At 100% load and Io=0.96A | |
| Efficiency @277Vac |
95.0% |
96.5% |
- |
At 100% load and Io=0.96A | |
| Output Current Tolerance |
-5% |
- |
+5% |
At 100% load | |
| Output Current Ripple(PK-AV) |
- |
5% |
10% |
At 100% load, 20 MHz BW | |
| Startup Overshoot Current |
- |
- |
10% |
At 100% load | |
| Turn-on Delay Time |
- |
- |
1.0s |
At 120~277Vac input and 100% load | |
| Line Regulation |
-5% |
- |
+5% |
At 25℃ ambient temperature, input voltage changes from 120Vac to 277Vac. | |
| Load Regulation |
-5% |
- |
+5% |
At 25℃ ambient temperature, Input Voltage 240Vac, load changes from 70% to 100%. | |
| 12V Auxiliary Output Voltage |
10.8V |
12V |
13.2V |
||
| 12V Auxiliary Output Current |
- |
- |
200mA |
Return terminal is “Dim−“ | |
|
Parameter |
Min. |
Typ. |
Max. |
Remark | |
|
0-10V Dimming |
Absolute Maximum Voltage |
0V |
- |
12V |
On Dim+ Pin |
| Source Current on Dim+ Pin |
90uA |
110uA |
120uA |
||
|
Dimming Output Range |
10%Ioset |
- |
100%Ioset |
Ioset<0.77A, Dimming Min. is 0.077A |
|
|
Recommended Dimming Range for 0-10V |
0V |
- |
10V |
Dimming prohibits reverse connection |
|
|
Dim Off |
0.7V |
0.8V |
0.9V |
With afterglow (standard) Without afterglow (optional) |
|
|
Dim On |
0.9V |
1.0V |
1.1V |
||
|
PWM Dimming |
PWM_in High Level |
9.8V |
10V |
10.2V |
|
|
PWM_in Low Level |
0V |
- |
0.3V |
||
|
PWM_in Frequency Range |
1KHz |
- |
2KHz |
||
|
PWM_in Duty Cycle |
0% |
- |
100% |
||
|
Resistor Dimming |
Resistance |
0Kohm |
- |
100Kohm |
DIM+ source current 110uA. |
|
Dimming Output Range |
10%Ioset |
- |
100%Ioset |
Ioset range:0.77~1.0A |
|
|
Other Characteristics |
Operating TemperatureFor safety(Tc) |
-40℃ |
25℃ |
+90℃ |
|
| Operating TemperatureFor warranty(Tc) |
-40℃ |
25℃ |
+85℃ |
Case temperature for 5 years warranty Humidity: 10% RH to 95% RH; | |
| Storage Temperature(Ta) |
-40℃ |
25℃ |
+85℃ |
||
| Storage Humidity |
5%RH |
- |
95%RH |
||
| Altitude |
-65m |
- |
4000m |
||
| Temperature Coefficient |
-0.06%/℃ |
- |
+0.06%/℃ |
Tc:0 ℃~90℃ |
|
| Input under voltage protection |
- |
75Vac |
90Vac |
Self-recovery |
|
| Over temperature protection |
90℃ |
95℃ |
100℃ |
Drop current when OTP, and it can be self-recovery after the abnormality is removed. | |
| Short Circuit Protection |
- |
- |
- |
Self-recovery, short circuit without damage |
|
| Lifetime(Tc≤90℃) |
≥50,000 hours |
At 100% load，please refer to lifetime vs. case temperature curve | |||
| MTBF |
200, 000 hours |
At 220Vac,80% load,Ta=25 ℃ (MIL-HDBK-217F) |
|||
| Warranty |
5 years |
Tc ≤ 90℃ |
|||
| Net Weight |
520g |
||||
| Dimension |
172mm*52.5mm*33.5mm |
L x W x H |
|||
Note: All the parameters above are tested Ta 25℃ and LED load, unless specified.
